81191 (LT 13 H) - Lawn-Boy Lawn Tractor (SN: 005900001 - 005999999) (1995) HOUSING & SPINDLE ASSEMBLY (38" CUTTING UNIT) (MODEL NO. 81180 & 81191 ONLY) Parts Diagram

Lawn Tractor

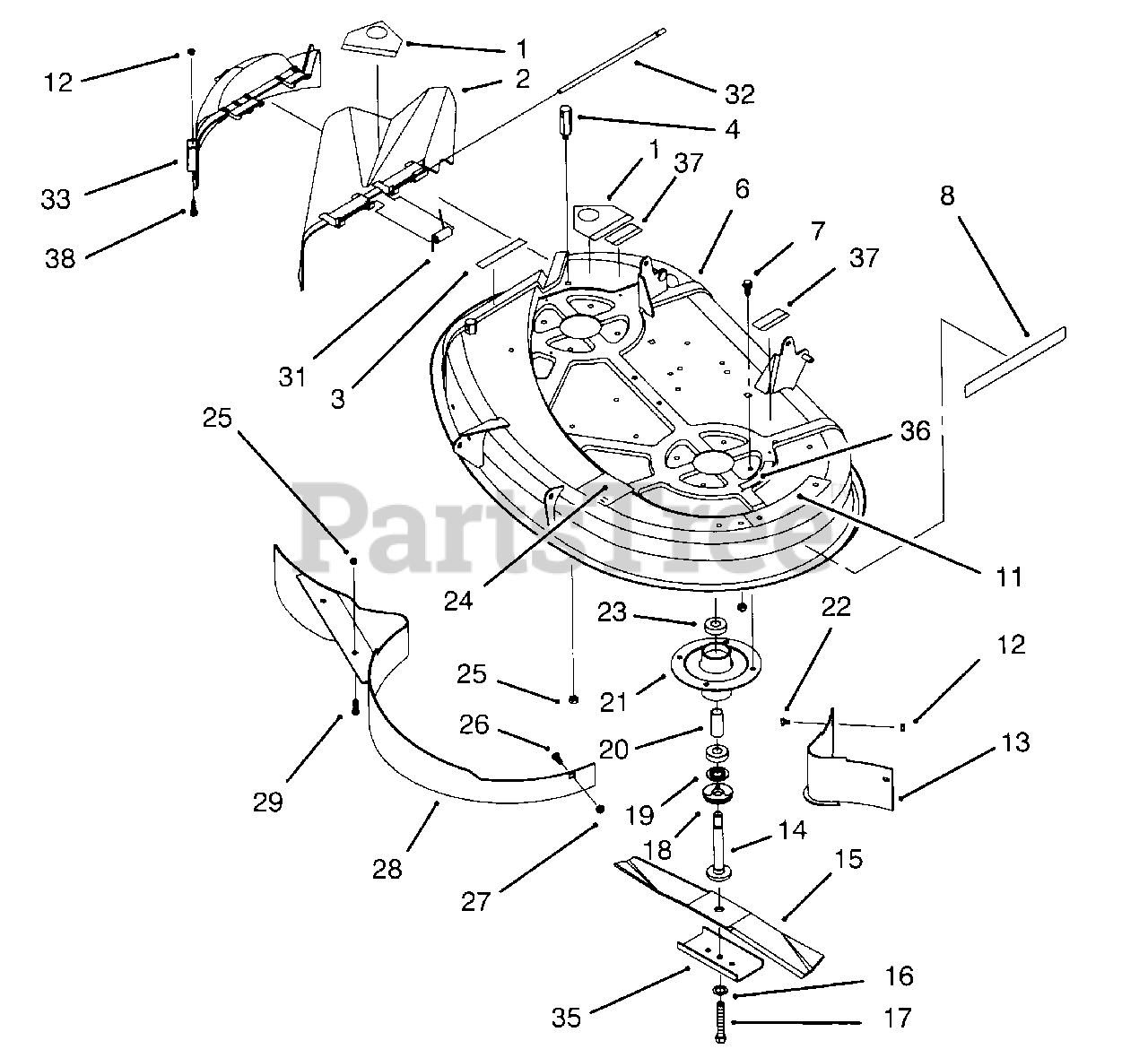

HOUSING & SPINDLE ASSEMBLY (38" CUTTING UNIT) (MODEL NO. 81180 & 81191 ONLY) Parts Diagram

  • Title
1

Lawn-Boy 93-1122

Decal-Danger

$9.99

$

In Stock, Qty 12

0

2

Lawn-Boy 93-0317

Deflector Assembly(Incl Ref. #1)

$84.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 68-3650

Decal-Deflector Danger

$16.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 57-4360

Post-Rear Pivot

$

$

Not available

6

Lawn-Boy 93-3158-03

Deck-38"
(Superseded to 17-4869)

$

$

Not available

7

Lawn-Boy 32144-41

Screw-Taptite

$5.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 92-8869

Decal-38" Easy Mulch

$

$

Currently unavailable

11

Lawn-Boy 79-3140

Decal-Danger

$19.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$69.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 80-4341

Shaft-Spindle

$50.99

$

In Stock, Qty 5

0

15

Lawn-Boy 88-5140

Blade-Power Mulch
(Superseded to 88-5140-03)

$43.99

$

In Stock, Qty 5

0

16

Lawn-Boy 3290-465

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 26-0671

Bolt-Blade

$9.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 80-4360

Shield-Bearing

$20.99

$

In Stock, Qty 19

0

19

Lawn-Boy 80-4380

Spacer-Hardened

$6.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 62-3661

Spacer-Bearing

$16.99

$

In Stock, Qty 15

0

21

Lawn-Boy 88-4510

Housing-Spindle

$106.99

$

In Stock, Qty 14

0

22

Lawn-Boy 321-4

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 38-7820

Bearing-Spindle

$13.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 93-6679

Decal-Belt Guide
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 3230-1

Bolt-Carriage

$1.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 88-6210

Baffle-Power-Mulch

$

$

Not available

29

Lawn-Boy 323-5

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 10

0

31

Lawn-Boy 57-6950

Spring-Torsion

$27.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 57-4380

Rod-Deflector Hinge

$38.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 88-4520

Cover-Discharge

$

$

Not available

35

Lawn-Boy 80-0510

Stiffener-Blade
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

36

Lawn-Boy 68-3660

Decal-Shield Danger

$12.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 55-4300

Decal-Spring Caution

$14.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 321-14

Screw-Hex Hd. Cap

$4.99

$

In Stock, Qty 12

0
