81191 (LT 13 H) - Lawn-Boy Lawn Tractor (SN: 004900001 - 004999999) (1994) HEIGHT OF CUT ASSEMBLY Parts Diagram

Lawn Tractor

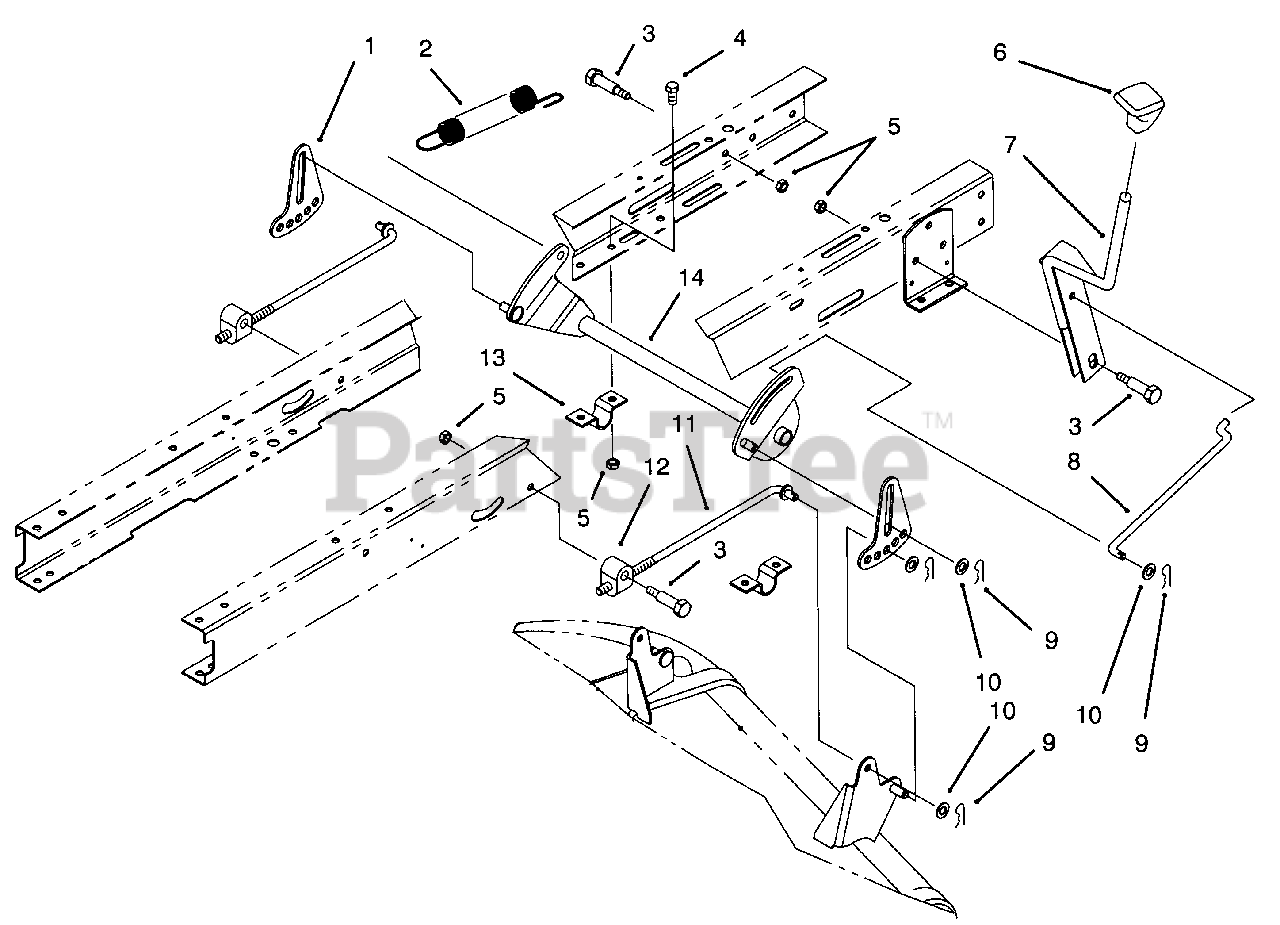

HEIGHT OF CUT ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 88-5570

Link-Adjusting H.O.C.
(Superseded to 88-5570-03)

$13.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 88-6460

Spring-Extension

$47.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 7-0030

Bolt-Shoulder

$9.49

$

In Stock, only 2 left!

0

4

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 62-1292

Knob-Shift

$13.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 88-5310

Lever-H.O.C.
(Superseded to 99-5817)

$109.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 88-5900

Link-H.O.C.

$51.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 3290-307

Pin-Hair Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 88-5450

Rod-Hanger Rear

$50.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 88-4230

Trunnion-H.O.C. Rear

$13.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 88-4730

Clamp-H.O.C. Pivot

$5.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 88-5110

Pivot-H.O.C.
(Superseded to 88-5110-03)

$132.99

$

Usually ships in 3-6 days

0
