81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 28M707-0122-01 Parts Diagram

Lawn Tractor

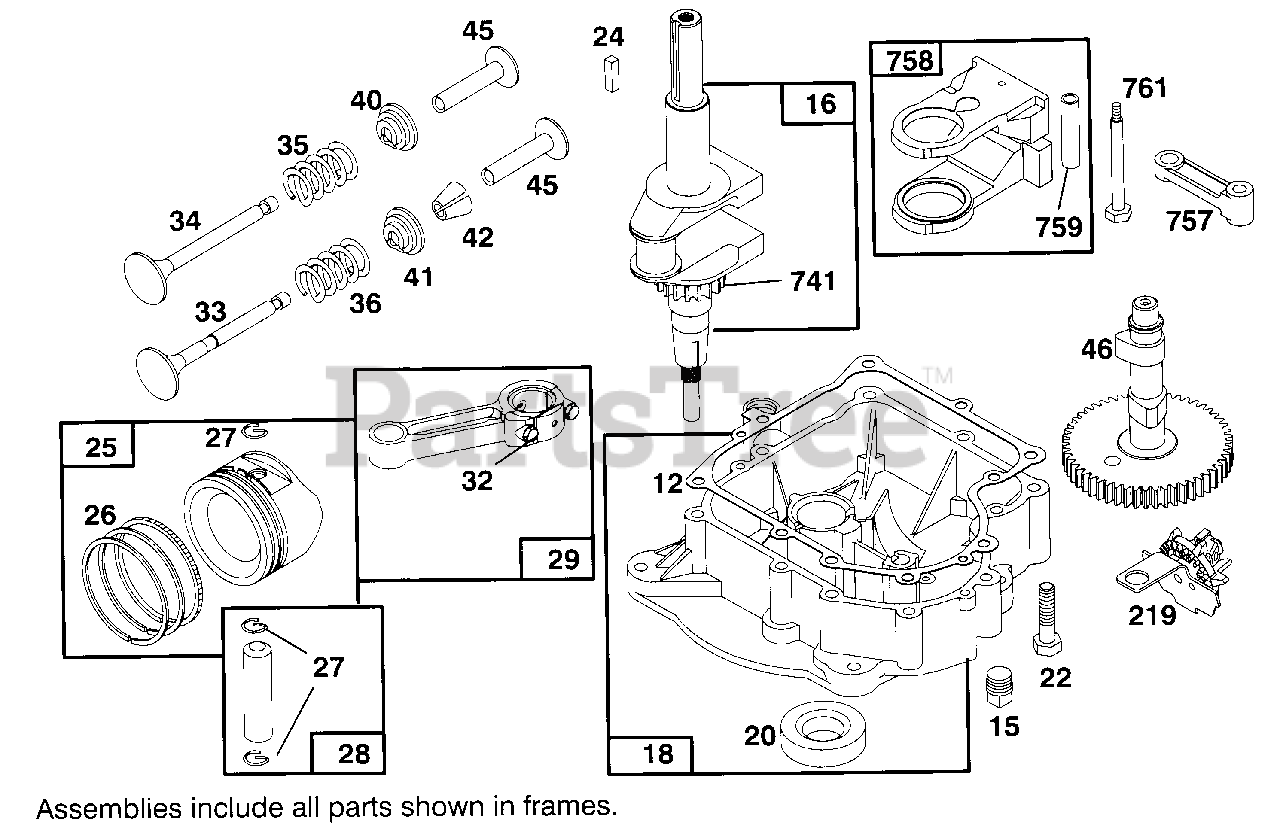

ENGINE BRIGGS & STRATTON MODEL 28M707-0122-01 Parts Diagram

  • Title

12

Lawn-Boy 271916

Gasket-Crkcse. (1/64" Thick)

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

Lawn-Boy 271997

Gasket-Crkcse. (.005" Thick)

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

Lawn-Boy 271996

Gasket-Crkcse. (.009" Thick)

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

15

Lawn-Boy 94239

Plug-Oil Drain

$

$

Currently unavailable

16

Lawn-Boy 495162

Crankshaft

$

$

Currently unavailable

Lawn-Boy 94196

Key-Timing Gear

$

$

Currently unavailable

18

Lawn-Boy 494238

Base-Engine

$

$

Currently unavailable

20

Lawn-Boy 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

22

Lawn-Boy 94624

Screw-Base Mtg. Sem

$

$

Currently unavailable

24

Lawn-Boy 222698

Key-Flywheel

$

$

Currently unavailable

25

Lawn-Boy 394661

Piston Assy. (Std.)

$

$

Currently unavailable

Lawn-Boy 394662

Piston Assy. (.010" O.S.)

$

$

Currently unavailable

Lawn-Boy 394663

Piston Assy. (.020" O.S.)

$

$

Currently unavailable

Lawn-Boy 394664

Piston Assy. (.030" O.S.)

$

$

Currently unavailable

26

Lawn-Boy 391780

Ring Set-Piston

$

$

Currently unavailable

Lawn-Boy 391781

Ring Set-Piston (.010" O.S.)

$

$

Currently unavailable

Lawn-Boy 391782

Ring Set-Piston (.020" O.S.)

$

$

Currently unavailable

Lawn-Boy 391783

Ring Set-Piston (.030" O.S.)

$

$

Currently unavailable

27

Lawn-Boy 260924

Lock-Piston Pin

$

$

Currently unavailable

28

Lawn-Boy 299691

Pin Assy.-Piston (Std.)

$

$

Currently unavailable

Lawn-Boy 391286

Pin Assy.-Piston (.005" O.S.)

$

$

Currently unavailable

29

Lawn-Boy 490348

Rod Assy-Connecting

$

$

Currently unavailable

Lawn-Boy 490469

Rod-Connecting (020" U.S. Crankpin Bore)

$

$

Currently unavailable

32

Lawn-Boy 94671

Screw-Connecting Rod

$

$

Currently unavailable

33

Lawn-Boy 262246

Valve-Exhaust

$

$

Currently unavailable

34

Lawn-Boy 262247

Valve-Intake

$

$

Currently unavailable

35

Lawn-Boy 65906

Spring-Intake Valve

$

$

Currently unavailable

36

Lawn-Boy 26828

Spring-Exhaust Valve

$

$

Currently unavailable

40

Lawn-Boy 221596

Retainer-Intake Valve

$

$

Currently unavailable

41

Lawn-Boy 292260

Rotocoil-Exhaust Valve

$

$

Currently unavailable

42

Lawn-Boy 93630

Retainer-Ex. Valve Rotocoil

$

$

Currently unavailable

45

Lawn-Boy 262248

Tappet-Valve

$

$

Currently unavailable

46

Lawn-Boy 212897

Gear-Cam

$

$

Currently unavailable

219

Lawn-Boy 490815

Oil Slinger, Gov. Gear Assy.

$

$

Currently unavailable

741

Lawn-Boy 262932

Gear-Timing

$

$

Currently unavailable

757

Lawn-Boy 212359

Link-Counterweight

$

$

Currently unavailable

758

Lawn-Boy 399891

Counterweight Assy.

$

$

Currently unavailable

759

Lawn-Boy 298909

Pin-Counterweight

$

$

Currently unavailable

761

Lawn-Boy 93875

Screw-Counterweight

$

$

Currently unavailable

977

Lawn-Boy 494385

Carburetor Gasket Kit

$

$

Currently unavailable
