81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

Lawn Tractor

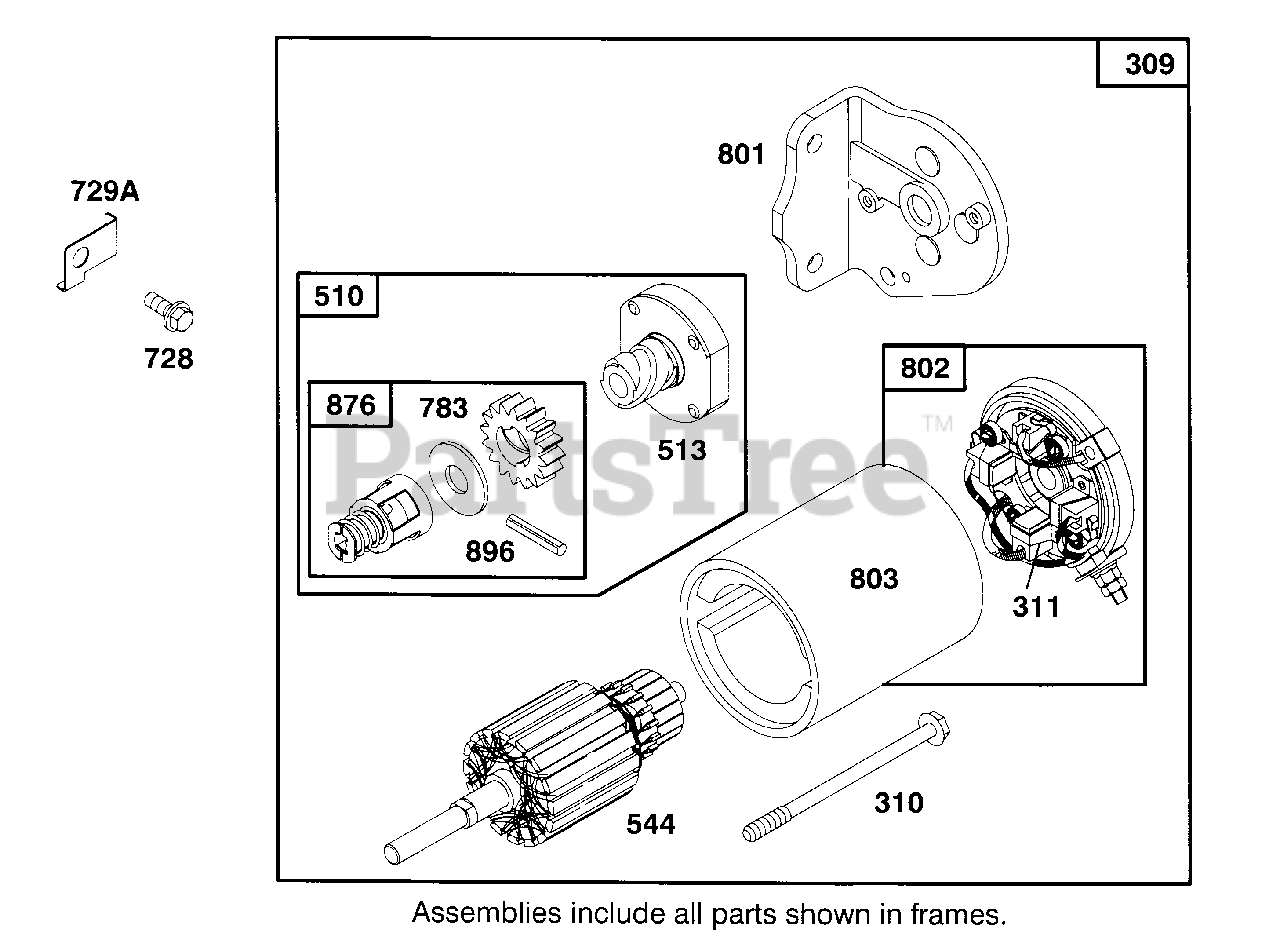

ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

  • Title
309

Lawn-Boy 394805

Motor and Drive Assy.

$

$

Currently unavailable

310

Lawn-Boy 94003

Bolt Hex. Hd.

$

$

Currently unavailable

311

Lawn-Boy 395538

Brush Assy.

$

$

Currently unavailable

510

Lawn-Boy 495878

Starter Drive Assy.

$

$

Currently unavailable

513

Lawn-Boy 398003

Clutch Assy.

$

$

Currently unavailable

544

Lawn-Boy 390837

Armature Assy.

$

$

Currently unavailable

728

Lawn-Boy 94627

Screw-Hex. Hd.

$

$

Currently unavailable

729A

Lawn-Boy 224723

Retainer-Wire

$

$

Currently unavailable

783

$

$

Currently unavailable

801

Lawn-Boy 394856

Drive End Cap Assy.

$

$

Currently unavailable

802

Lawn-Boy 395537

End Cap Assy. Commutator

$

$

Currently unavailable

803

Lawn-Boy 398159

Housing Assy.

$

$

Currently unavailable

876

Lawn-Boy 495877

Retainer And Pin

$

$

Currently unavailable

896

Lawn-Boy 94288

Pin-Roll

$

$

Currently unavailable

977

Lawn-Boy 494385

Carburetor Gasket Kit

$

$

Currently unavailable
