81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 282707-0119-01 Parts Diagram

Lawn Tractor

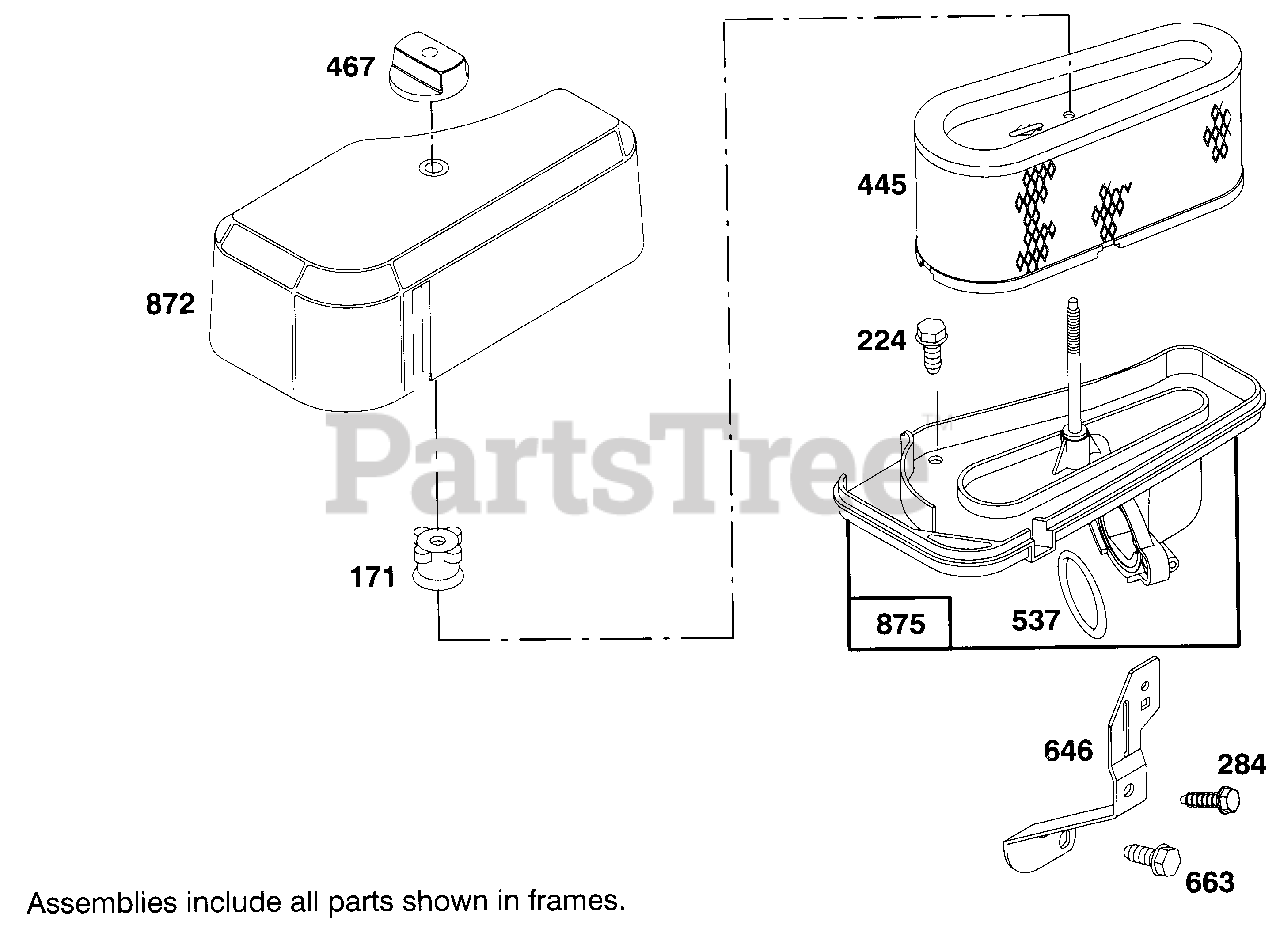

ENGINE BRIGGS & STRATTON MODEL 282707-0119-01 Parts Diagram

  • Title
171

Lawn-Boy 281051

Nut-Air Cleaner Mtg.

$

$

Currently unavailable

224

Lawn-Boy 94729

Screw-Air Cleaner Sem

$

$

Currently unavailable

284

Lawn-Boy 94704

Screw Hex. Head

$

$

Currently unavailable

445

Lawn-Boy 493909

Cartridge-Air Cleaner

$

$

Currently unavailable

467

Lawn-Boy 493903

Knob-Air Cleaner

$

$

Currently unavailable

537

Lawn-Boy 281106

O-Ring-Air Cleaner

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

646

Lawn-Boy 224546

Brace-Air Cleaner

$

$

Currently unavailable

663

Lawn-Boy 94620

Screw-Hex. Hd.

$

$

Currently unavailable

872

Lawn-Boy 281104

Cover-Air Cleaner

$

$

Currently unavailable

875

Lawn-Boy 494237

Body-Air Cleaner

$

$

Currently unavailable

977

Lawn-Boy 494385

Carburetor Gasket Kit

$

$

Currently unavailable
