81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 005900001 - 005999999) (1995) ENGINE BRIGGS & STRATTON MODEL 282707-0119-01 Parts Diagram

Lawn Tractor

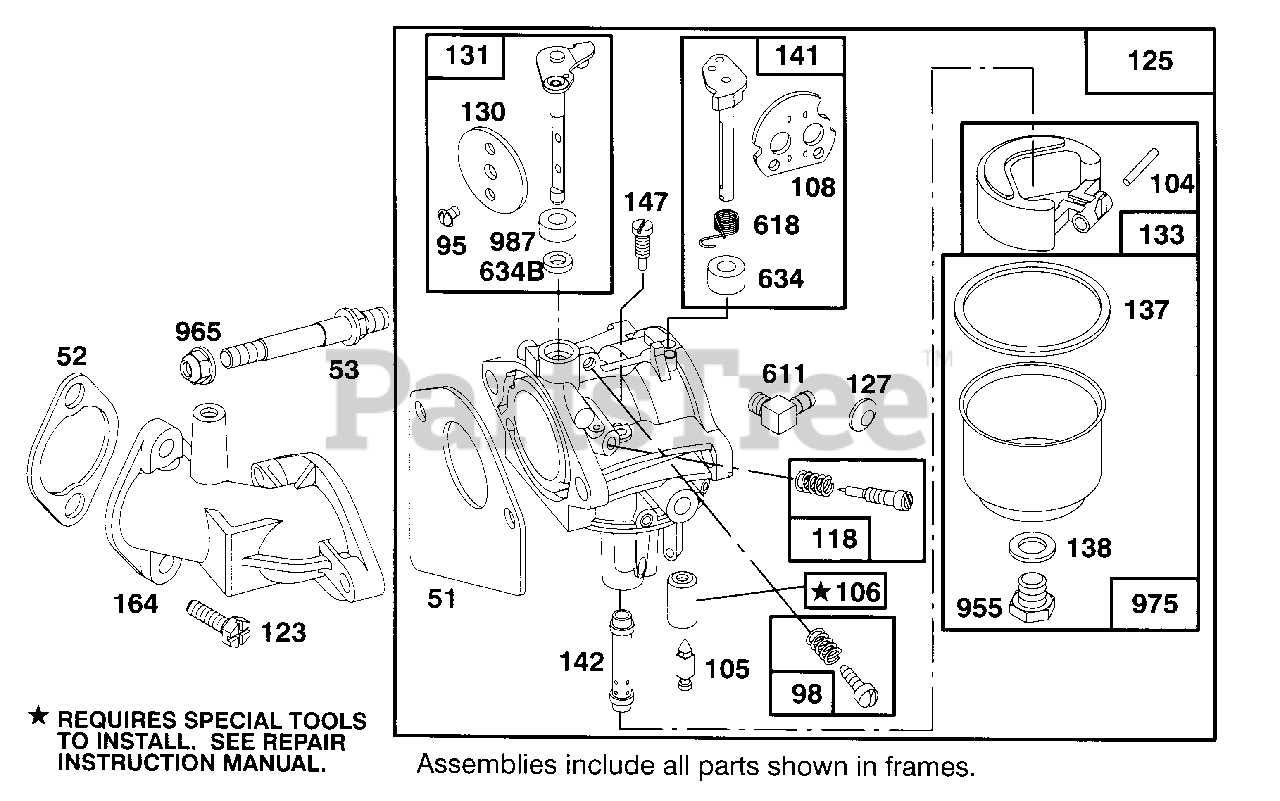

ENGINE BRIGGS & STRATTON MODEL 282707-0119-01 Parts Diagram

  • Title

51

Lawn-Boy 272465

Gasket-Carburetor (Carb. to Elbow)

$

$

Currently unavailable

52

Lawn-Boy 272554

Gasket-Carburetor (Elbow to Cylinder)

Note: Included in Gasket Set-Part No. 494241

$

$

Currently unavailable

53

Lawn-Boy 94637

Stud-Carb. Mtg.

$

$

Currently unavailable

95

Lawn-Boy 94098

Screw-Throttle

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable

98

Lawn-Boy 495800

Screw-Idle Speed

$

$

Currently unavailable

104

Lawn-Boy 231789

Pin-Float Hinge

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable

105

Lawn-Boy 231855

Valve Assy.-Inlet Needle

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable

106

Lawn-Boy 231854

Inlet Valve Seat

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable

108

Lawn-Boy 224540

Valve-Choke

$

$

Currently unavailable

118

Lawn-Boy 494383

Valve-Needle

$

$

Currently unavailable

123

Lawn-Boy 94616

Screw-Elbow Mtg.

$

$

Currently unavailable

125

Lawn-Boy 495706

Carburetor Assembly

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Not available

130

Lawn-Boy 224539

Valve-Throttle

$

$

Currently unavailable

131

Lawn-Boy 494379

Shaft and Lever-Throttle

$

$

Currently unavailable

133

Lawn-Boy 494381

Float-Carburetor

$

$

Currently unavailable

137

Lawn-Boy 281165

Gasket-Float Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG Included in Carburetor Gasket Set-Part No. 494385

$

$

Currently unavailable

138

Lawn-Boy 281164

Washer-Float Bowl Screw

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG Included in Carburetor Gasket Set-Part No. 494385

$

$

Currently unavailable

141

Lawn-Boy 495931

Shaft and Lever-Choke

$

$

Currently unavailable

142

Lawn-Boy 494537

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable

147

Lawn-Boy 231794

Pilot-Jet

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable

164

Lawn-Boy 213819

Carburetor-Elbow

$

$

Currently unavailable

611

Lawn-Boy 494451

Fuel Inlet Tube

$

$

Currently unavailable

618

Lawn-Boy 262803

Spring-Choke Return

$

$

Currently unavailable

634

Lawn-Boy 281168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable

634B

Lawn-Boy 398970

Washer-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable

955

Lawn-Boy 94642

Screw-Fuel Bowl

$

$

Currently unavailable

965

Lawn-Boy 94010

Locknut-Air Cleaner Mtg

$

$

Currently unavailable

975

Lawn-Boy 494378

Bowl Assy-Carburetor

$

$

Currently unavailable

977

Lawn-Boy 494385

Carburetor Gasket Kit

$

$

Currently unavailable

987

Lawn-Boy 281166

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 4g.57gG

$

$

Currently unavailable
