81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 004900001 - 004999999) (1994) PULLEY & BELT ASSEMBLY (32" CUTTING UNIT)(MODEL NO. 81182 ONLY) Parts Diagram

Lawn Tractor

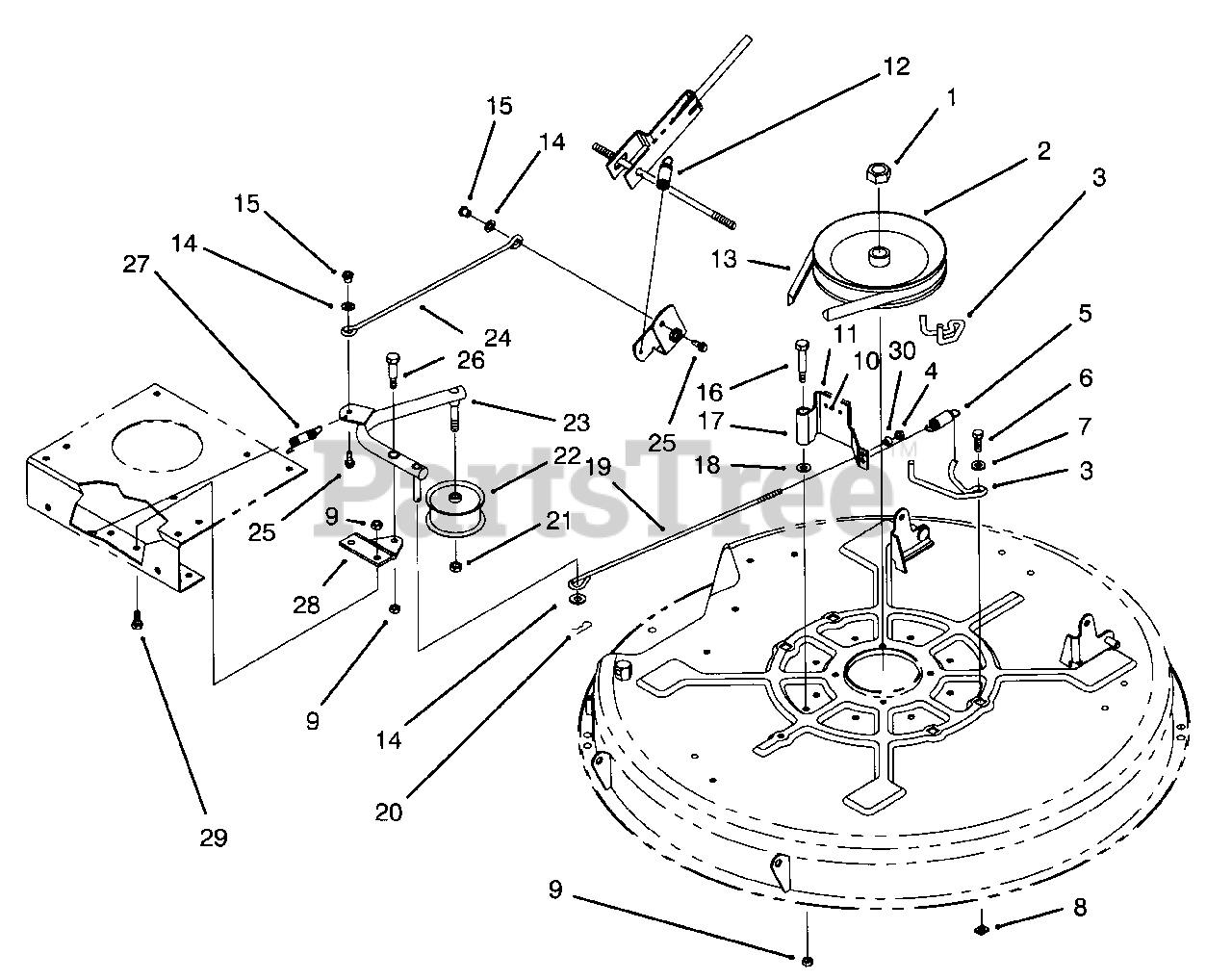

PULLEY & BELT ASSEMBLY (32" CUTTING UNIT)(MODEL NO. 81182 ONLY) Parts Diagram

  • Title
1

Lawn-Boy 3219-7

Nut-Lock

$1.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 88-5060

Pulley-Deck

$139.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 88-5760

Guide-Belt

$

$

Not available

4

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 88-6330

Spring-Extension

$9.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 322-5

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 5-4460

Washer-Fender

$7.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 3290-496

Nut-Retained

$6.49

$

In Stock, only 3 left!

0

9

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 3290-282

Rivet-Pop

$0.99

$

In Stock, Qty 8

0

11

Lawn-Boy 56-9830

Pad-Brake

$33.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 88-6420

Spring/Cable Assembly

$50.99

$

In Stock, only 3 left!

0

13

$55.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

$27.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 88-4590

Bolt-Shoulder

$11.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 88-6110

Deck Brake Assembly (Incl. Ref. #10 & 11)

$89.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 88-5690

Rod-Deck Brake

$

$

Not available

20

Lawn-Boy 3290-307

Pin-Hair Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 56-9870

Pulley-Idler

$51.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 88-5850

Arm-Idler
(Superseded to 88-5850-03)

$385.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 88-5980

Rod-Deck Engage

$28.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 3234-13

Screw-Hex Flange Hd.

$1.49

$

In Stock, only 4 left!

0

26

Lawn-Boy 7-0030

Bolt-Shoulder

$9.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 26-6700

Spring-Extension

$24.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 88-5370

Plate-Idler Mount
(Superseded to 88-5370-03)

$

$

Not available

29

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 67-0710

Ball-Swivel

$4.49

$

In Stock, only 2 left!

0
