81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 004900001 - 004999999) (1994) HYDROGEAR TRANSAXLE NO. 92-8783 Parts Diagram

Lawn Tractor

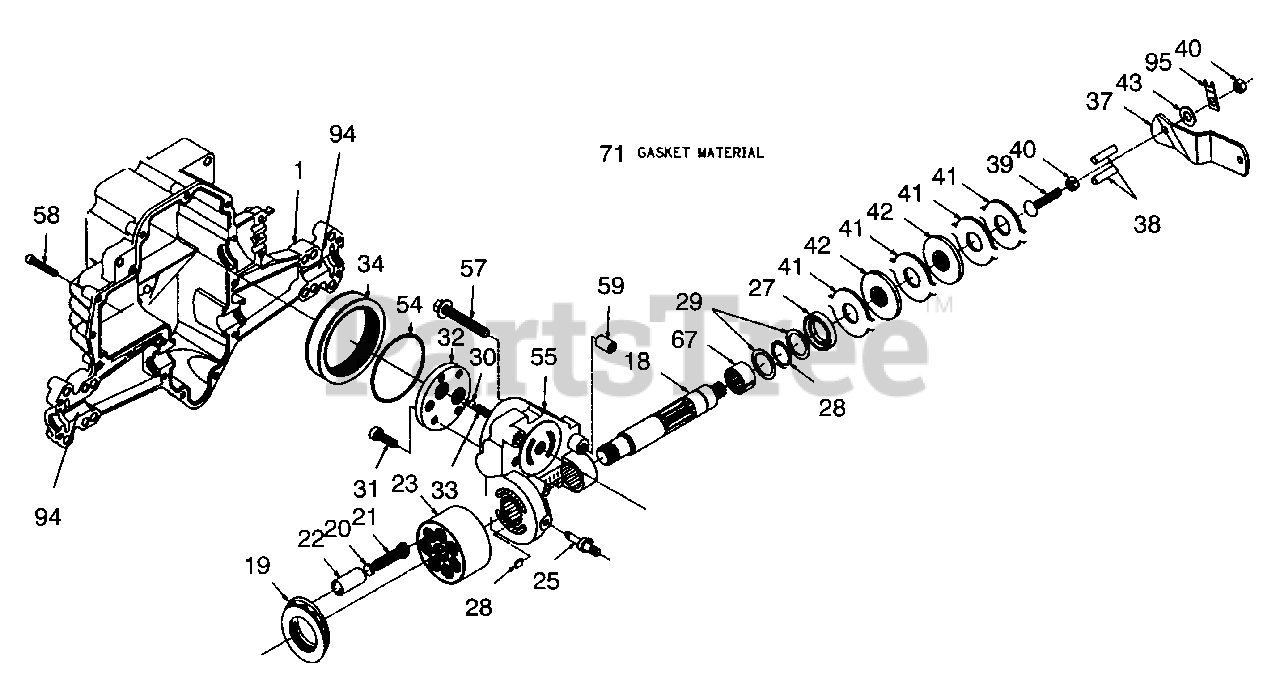

HYDROGEAR TRANSAXLE NO. 92-8783 Parts Diagram

  • Title

1

Housing-Lower

$

$

Not available

18

Shaft-Motor

$

$

Not available

19

Bearing-Thrust

$

$

Not available

20

Seat-Piston Spring

$

$

Not available

21

Spring-Piston

$

$

Not available

22

Piston

$

$

Not available

23

Block-Cylinder (Motor)

$

$

Not available

25

Actuator-Bypass

$

$

Not available

26

Plate-Bypass

$

$

Not available

27

Seal-Lip

$

$

Not available

28

Ring-Retaining

$

$

Not available

29

Washer

$

$

Not available

30

Ball

$

$

Not available

31

Spring-Check Valve (Mod)

$

$

Not available

32

Plate-Check Valve

$

$

Not available

33

Socket Hd. Cap Screw

$

$

Not available

34

Oil Filter Element

$

$

Not available

37

Lawn-Boy 88-6230

Lever-Brake
(Superseded to 93-3861)

$

$

Not available

38

Lawn-Boy 92-6549

Pin-Actuating

$7.99

$

Usually ships in 3-6 days

0

39

Bolt

$

$

Not available

40

Lawn-Boy 3296-47

Nut-Hex Lock

$3.99

$

In Stock, Qty 20+

0

41

Stator-Brake

$

$

Not available

42

Rotor-Brake

$

$

Not available

43

Lawn-Boy 5-4460

Washer

$7.99

$

In Stock, Qty 20+

0

54

O Ring

$

$

Not available

55

Center-Section

$

$

Not available

57

Bolt

$

$

Not available

58

Bolt

$

$

Not available

59

Pin

$

$

Not available

67

Du Bearing

$

$

Not available

71

Gasket Material (1 oz.)

$

$

Not available

94

Grease Durina "O" (2.16 oz.)

$

$

Not available

95

Lawn-Boy 92-7300

Strap-Locking

$

$

Not available
