81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

Lawn Tractor

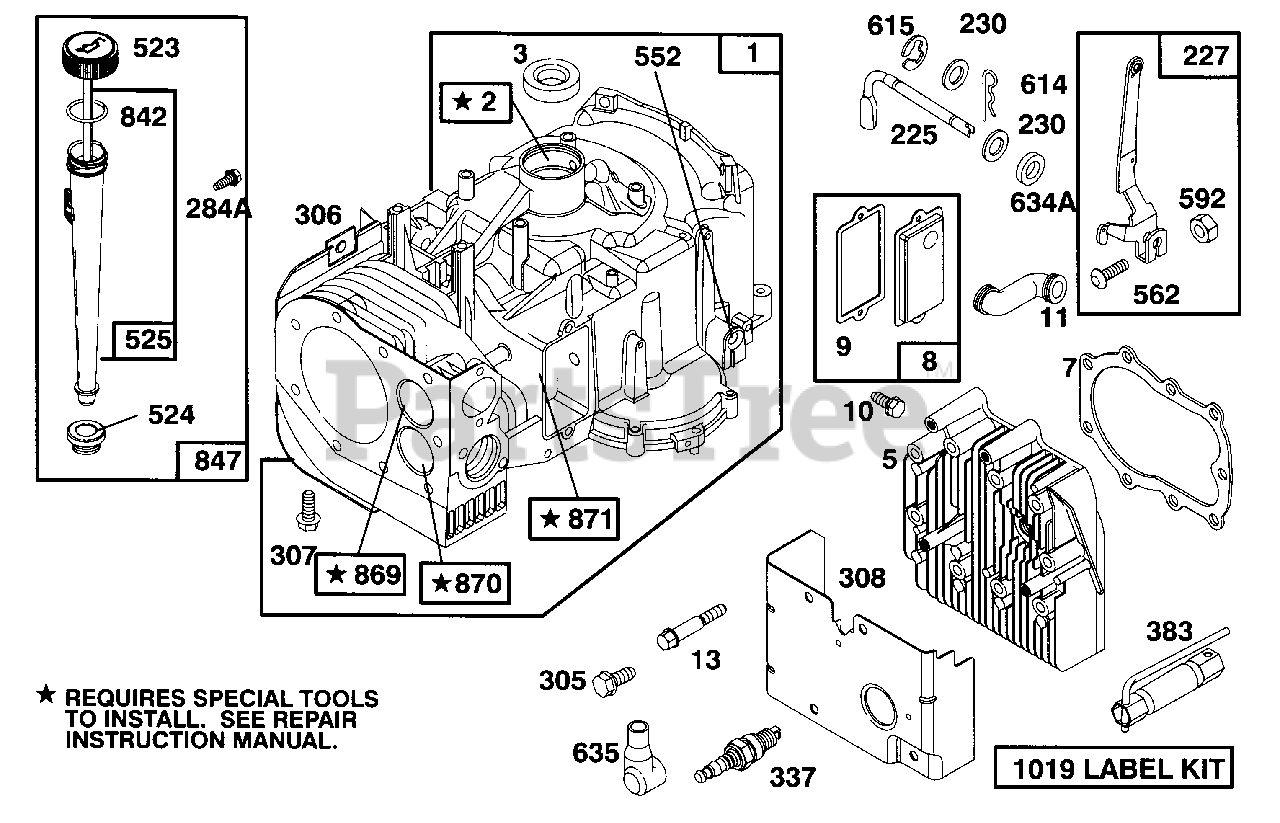

ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

  • Title

1

Lawn-Boy 496413

Cylinder Assembly

$

$

Currently unavailable

2

Lawn-Boy 399265

Bearing-Cylinder

$

$

Currently unavailable

3

Lawn-Boy 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

5

Lawn-Boy 494240

Head-Cylinder

$

$

Currently unavailable

7

Lawn-Boy 271866

Gasket-Cyllinder Head

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

8

Lawn-Boy 391406

Breather Assembly

$

$

Currently unavailable

9

Lawn-Boy 27803

Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

10

Lawn-Boy 94621

Screw-Sem

$

$

Currently unavailable

11

Lawn-Boy 280100

Tube-Breather

$

$

Currently unavailable

13

Lawn-Boy 94622

Screw-Cylinder Head

$

$

Currently unavailable

225

Lawn-Boy 231058

Crank-Governor

$

$

Currently unavailable

227

Lawn-Boy 493935

Lever Assy-Governor

$

$

Currently unavailable

230

Lawn-Boy 94742

Washer-Gov. Crank

$

$

Currently unavailable

284A

Lawn-Boy 94073

Screw-Hex Head

$

$

Currently unavailable

305

Lawn-Boy 94619

Screw-Hex Washer Hd.

$

$

Currently unavailable

306

Lawn-Boy 224545

Shield-Cylinder

$

$

Currently unavailable

307

Lawn-Boy 94623

Screw-Cyl. Shield Mtg.

$

$

Currently unavailable

308

Lawn-Boy 491490

Cover-Cylinder Head

$

$

Currently unavailable

337

Lawn-Boy 802592

Plug-Spark

$

$

Currently unavailable

383

Lawn-Boy 89838

Wrench-Spark Plug

$

$

Currently unavailable

523

Lawn-Boy 495230

Cap And Dipstick Oil Filler

$

$

Currently unavailable

524

Lawn-Boy 68838

Seal-Filler Tube

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

525

Lawn-Boy 496113

Tube-Oil Filler

$

$

Currently unavailable

552

Lawn-Boy 231597

Bushing-Gov. Crank

$

$

Not available

562

Lawn-Boy 92613

Bolt-Governor Lever

$

$

Currently unavailable

592

Lawn-Boy 231082

Nut-Hex

$

$

Currently unavailable

614

Lawn-Boy 93306

Cotter-Hair Pin

$

$

Currently unavailable

615

Lawn-Boy 93307

Retainer-E-Ring

$

$

Currently unavailable

634A

Lawn-Boy 491323

Seal-Governor

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

635

Lawn-Boy 66538

Elbow-Spark Plug

$

$

Currently unavailable

842

Lawn-Boy 270920

Seal-Oil Filler Cap

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

847

Lawn-Boy 496415

Fill Group-Oil

$

$

Currently unavailable

869

Lawn-Boy 261463

Seat-Intake Valve (Std.)

$

$

Currently unavailable

870

Lawn-Boy 213316

Seat-Exhaust Valve (Std.)

$3.23

$

Usually ships in 3-6 days

0

871

Lawn-Boy 261961

Guide-Exhaust Valve

$

$

Currently unavailable

977

Lawn-Boy 494385

Carburetor Gasket Kit

$

$

Currently unavailable

1019

Lawn-Boy 491255

Label Kit

$

$

Currently unavailable
