81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 004900001 - 004999999) (1994) DECK & SPINDLE ASSEMBLY (32" CUTTING UNIT)(MODEL NO. 81182 ONLY) Parts Diagram

Lawn Tractor

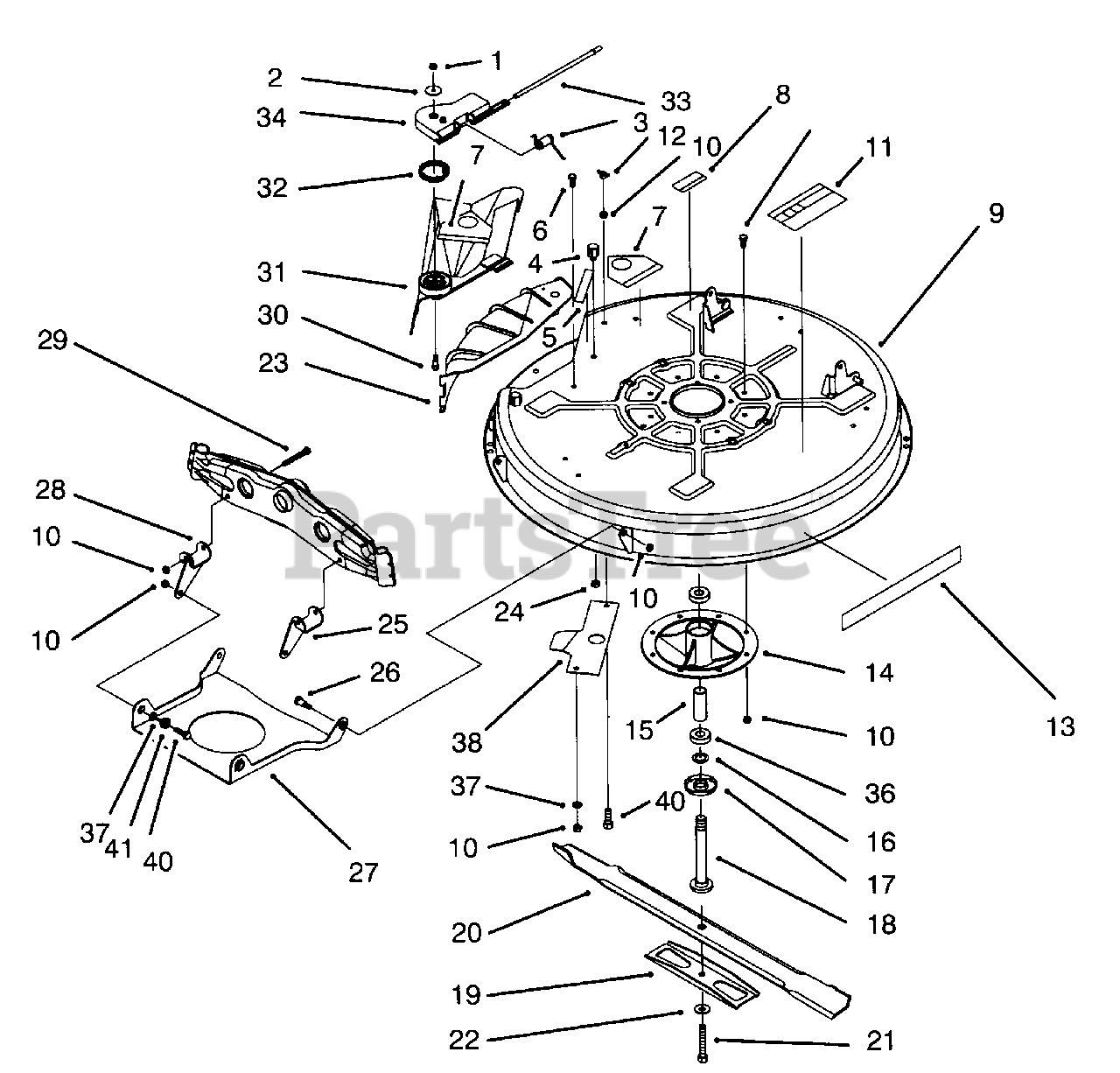

DECK & SPINDLE ASSEMBLY (32" CUTTING UNIT)(MODEL NO. 81182 ONLY) Parts Diagram

  • Title

1

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 3256-58

Washer-Fender
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 11

0

3

Lawn-Boy 92-2493

Spring-Torsion

$12.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 28-7350

Post-Rear Pivot

$38.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 68-3650

Decal-Deflector Danger

$16.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 54-9220

Decal-Danger
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

8

Lawn-Boy 55-4300

Decal-Caution

$14.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 88-5790-03

Cutter Deck-32"
(Superseded to 99-2974)

$

$

Not available

10

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 66-1340

Decal-Danger

$10.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 32103-2

Nut-Wing

$0.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 92-8868

Decal-32" Easy Mulch

$

$

Not available

14

Lawn-Boy 56-7030

Housing-Spindle

$

$

Not available

15

Lawn-Boy 83-7020

Spacer-Bearing

$28.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 80-4390

Spacer-Hardened

$4.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 80-4370

Shield-Bearing

$18.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 80-4350

Shaft-Spindle

$85.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 80-4570

Stiffener-Blade
(Superseded to 80-4570-03)

$28.99

$

In Stock, only 4 left!

0

20

Lawn-Boy 88-9890

Blade-32"
(Superseded to 88-9890-03)

$

$

Not available

21

Lawn-Boy 26-0671

Bolt-Blade

$9.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 3290-465

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 82-6151

Discharge Cover Ass'y

$121.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 3296-59

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 88-5650

Bracket-L.H.
(Superseded to 88-5650-03)

$

$

Not available

26

Lawn-Boy 28-0540

Bolt-Shoulder

$12.99

$

In Stock, Qty 5

0

27

Lawn-Boy 88-4940

Pan-Front Suspension
(Superseded to 88-4940-03)

$

$

Not available

28

Lawn-Boy 88-5640

Bracket-R.H.
(Superseded to 88-5640-03)

$33.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 322-12

Screw-Hex Hd. Cap
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

30

Lawn-Boy 92-8916

Bolt-Shoulder

$15.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 88-4560

Deflector-Double Pivot
(Superseded to 93-0318)

$104.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 88-6160

Spring-Torsion

$35.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 88-6150

Rod-Deflector Hinge

$

$

Not available

34

Lawn-Boy 88-4540

Hinge-Deflector Danger

$22.99

$

In Stock, only 2 left!

0

36

Lawn-Boy 251-297

Bearing-Spindle

$19.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

38

Lawn-Boy 92-2494

Ramp-Deflector
(Superseded to 92-2494-03)

$28.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 322-6

Screw-Hex Hd. Cap

$4.49

$

In Stock, Qty 20+

0

41

Lawn-Boy 106661

Cam

$

$

Not available
