81181 (LT 12.5 H) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

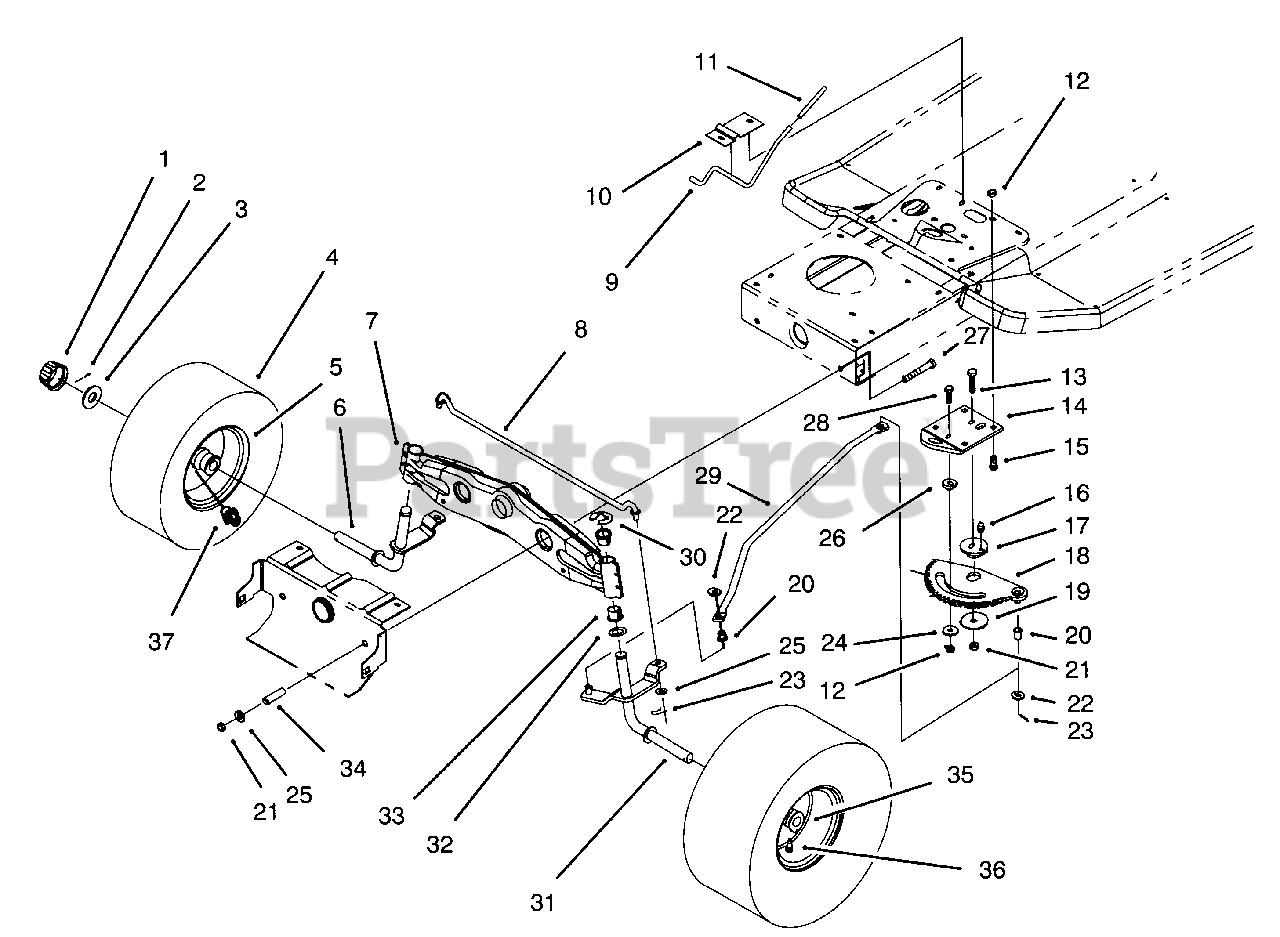

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 61-9780

Cap-Hub

$7.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 3272-12

Pin-Cotter

$0.99

$

In Stock, Qty 17

0

3

Lawn-Boy 28-2480

Washer

$4.99

$

In Stock, Qty 16

0

4

Lawn-Boy 88-4060

Tire-13" (Model No. 81140 Only)

$

$

Not available

Lawn-Boy 88-4070

Tire-15" (Model No. 81180 & 81181 Only)
(Superseded to 99-2988)

Note: Not Illustrated

$130.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 88-4360

Rim-Front Wheel (Model No. 81140 Only

$209.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 88-4370

Rim-Front Wheel (Model No. 81180 & 81181 Only)

$254.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 88-4530

Spindle-R.H.
(Superseded to 92-7889-03)

$147.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 88-4460

Axle-Front
(Superseded to 94-1962-03)

$

$

Not available

8

Lawn-Boy 88-5380

Rod-Steering Tie

$

$

Not available

9

Lawn-Boy 88-5510

Rod-Parking Brake

$

$

Not available

10

Lawn-Boy 88-5520

Bracket-Parking Brake
(Superseded to 88-5520-03)

$10.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 88-0890

Grip-Brake Rod

$5.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 3231-4

Screw-Carriage

$3.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 88-5130

Bracket-Steering Rack
(Superseded to 88-5130-03)

$55.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 3230-1

Bolt-Carriage

$1.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 302-26

Fitting-Grease

$7.49

$

In Stock, only 1 left!

0

17

Lawn-Boy 88-4670

Bushing-Eccentric

$24.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 88-5200

Rack-Steering

$93.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 111419

Washer-Fender

$

$

Not available

20

Lawn-Boy 52-2891

Bushing-Steering Link

$3.49

$

In Stock, Qty 16

0

21

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 3256-25

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 3272-10

Pin-Cotter

$1.49

$

In Stock, Qty 11

0

24

Lawn-Boy 5-4460

Washer-Fender

$7.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 88-5010

Spacer-Steering Rack

$3.49

$

In Stock, only 1 left!

0

27

Lawn-Boy 323-13

Screw-Hex Hd. Cap
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 3230-3

Screw-Carriage

$1.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 88-4830

Link-Drag

$65.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 32151-48

E-Ring

$1.99

$

In Stock, Qty 14

0

31

Lawn-Boy 88-4930

Spindle-L.H.
(Superseded to 92-7890-03)

$199.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3-6498

Washer-Thrust

$6.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 88-5800

Bushing-Steering Spindle

$9.49

$

In Stock, only 3 left!

0

34

Lawn-Boy 88-5470

Spacer-Front Axle

$15.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 88-4400

Bearing-Wheel
(Superseded to 110513)

$21.99

$

In Stock, Qty 12

0

36

Lawn-Boy 232-27

Valve Stem w/Cap
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

37

Lawn-Boy 302-5

Fitting-Grease

$3.49

$

In Stock, Qty 20+

0

Lawn-Boy 232-47

InnerTube-13"(0pt.)
(Superseded to 232-37)

Note: Not Illustrated

$33.99

$

In Stock, only 1 left!

0

Lawn-Boy 232-98

Inner Tube-15" (Opt.)
(Superseded to 232-39)

Note: Not Illustrated

$31.99

$

In Stock, only 1 left!

0

Lawn-Boy 88-4270

Wheel & Tire Assembly (Incl. Ref. #4 & 5)(Model No. 81140 Only)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 88-4280

Wheel & Tire Assembly (Incl. Ref. #4 & 5)(Model No. 81180 & 81181 Only)

Note: Not Illustrated

$

$

Not available
