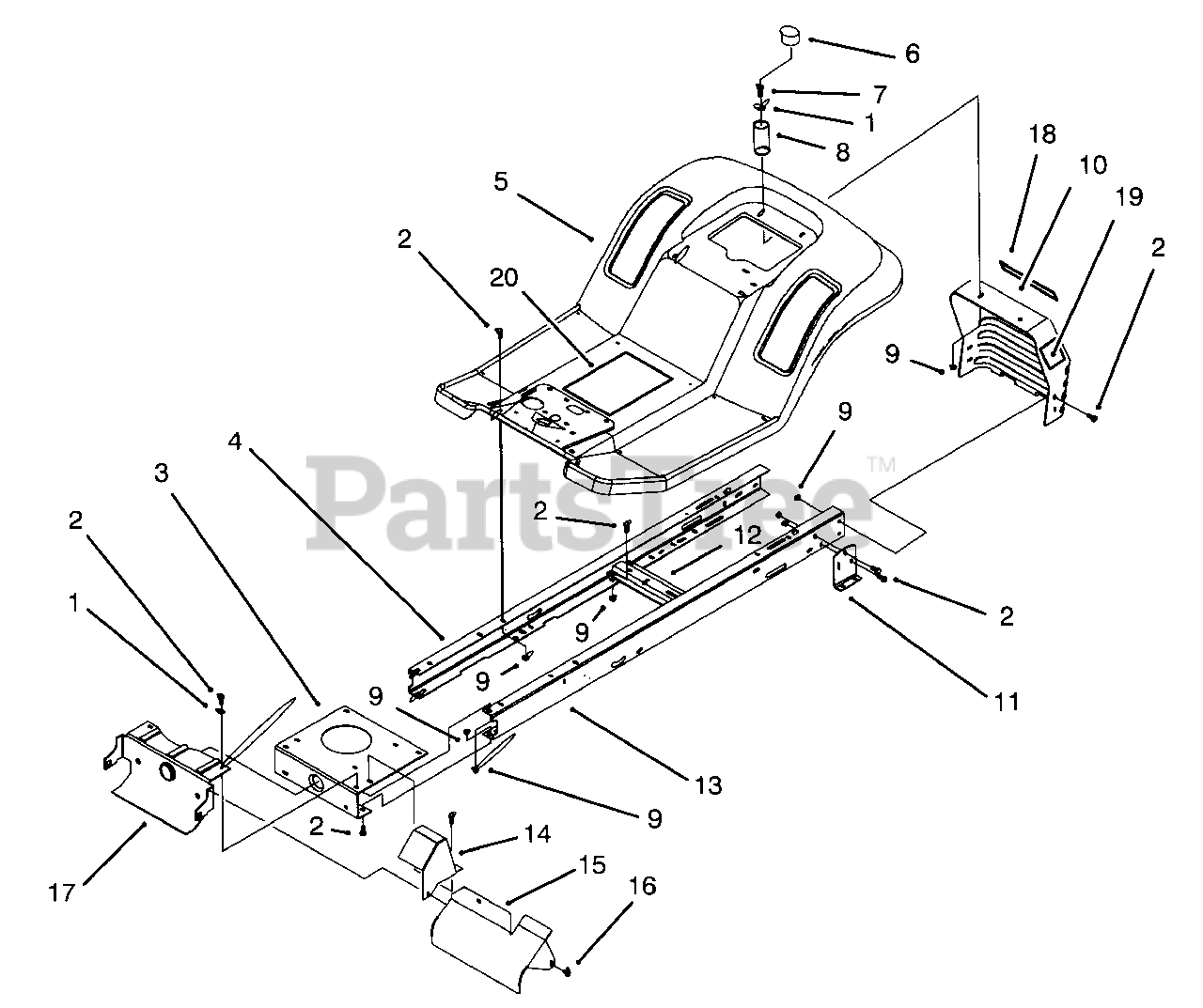

81181 (LT 12.5 H) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

FRAME ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 88-4630

Plate-Engine Mount
(Superseded to 88-4630-03)

$70.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 88-4650

Rail-R.H. Frame
(Superseded to 99-2959-03)

$103.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 88-3840-02

Body-Rear

$

$

Not available

6

Lawn-Boy 701178

Cap-Protector

$2.99

$

In Stock, only 3 left!

0

7

Lawn-Boy 322-5

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 88-6220

Spring-Compression

$28.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 88-3940

Panel-Rear Hitch
(Superseded to 99-2957-03)

$157.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 88-5260

Bracket-Transaxle Mnt.
(Superseded to 88-5260-03)

$12.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 88-4620

Bracket-Idler Pivot
(Superseded to 88-4620-03)

$

$

Not available

13

Lawn-Boy 88-4660

Rail-L.H. Frame
(Superseded to 99-2958-03)

$103.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 88-4960

Shield-Exhaust Pipe
(Superseded to 88-4960-03)

$

$

Not available

15

Lawn-Boy 88-6290

Shield-Muffler
(Superseded to 88-6290-03)

$47.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 32104-76

Screw-Thread Tapping

$2.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 88-5120

Support-Front Axle
(Superseded to 110-8636-03)

$60.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-2472

Decal-Rear Body

$

$

Not available

19

Lawn-Boy 92-2492

Decal-Dump Valve Hydro (Model No. 81181 Only)

$

$

Not available

20

Lawn-Boy 92-2485

Decal-Instruction (Model No. 81140 & 81180 Only)
(Superseded to 94-1237)

$

$

Not available

Lawn-Boy 92-2487

Decal-Instruction (Model No. 81181 Only)

Note: Not Illustrated

$

$

Not available
