81180 (LT 12.5) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) PEERLESS TRANSAXLE MODEL NO. 915-020 Parts Diagram

Lawn Tractor

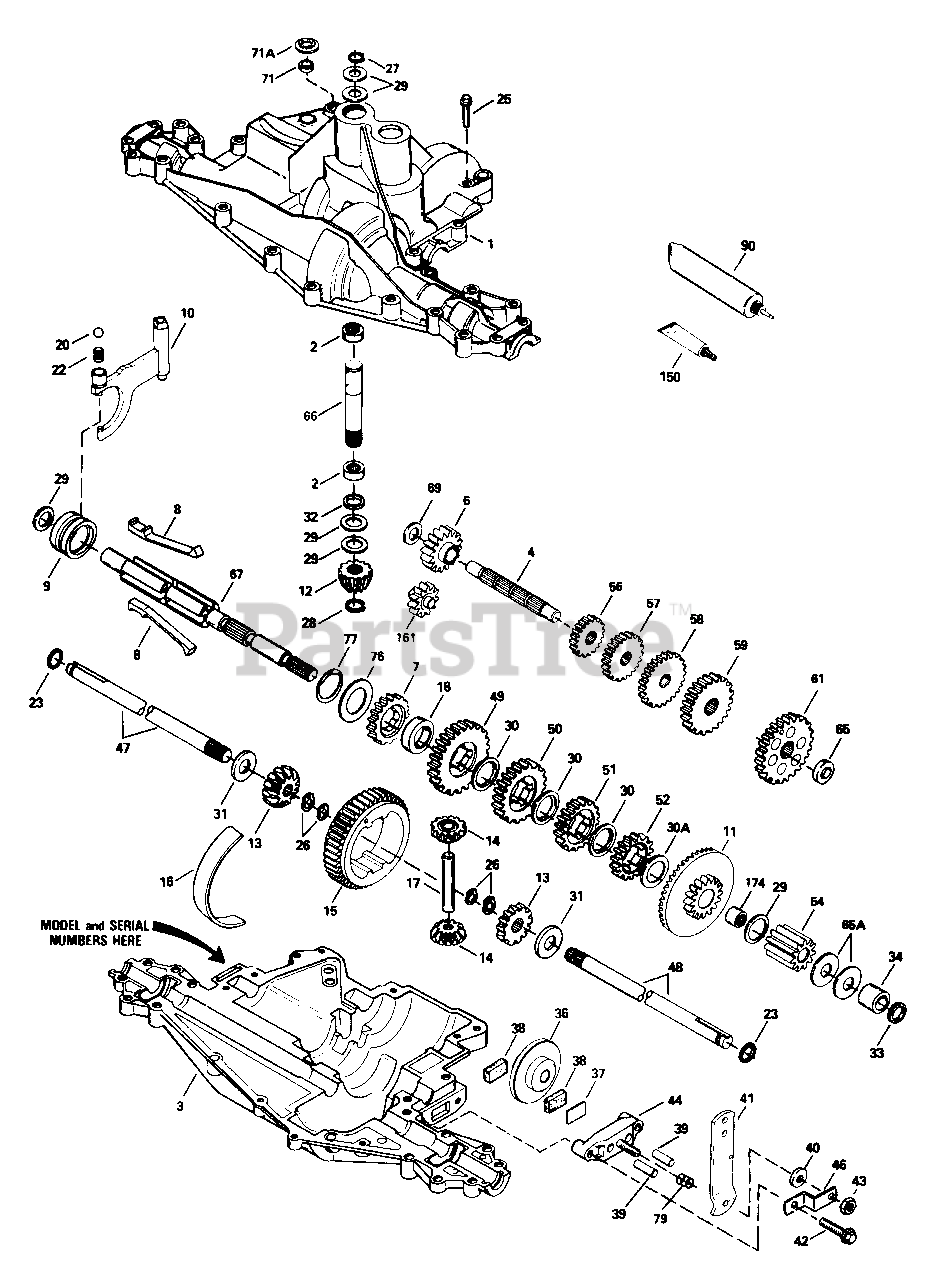

PEERLESS TRANSAXLE MODEL NO. 915-020 Parts Diagram

  • Title
1

Lawn-Boy 772128

Transaxle Cover

$

$

Currently unavailable

3

Lawn-Boy 770110

Transaxle Case

$

$

Currently unavailable

4

Lawn-Boy 776300

Countershaft

$

$

Currently unavailable

6

Lawn-Boy 778281

Spur Gear (16 Teeth)

$

$

Currently unavailable

7

Lawn-Boy 778122A

Spur Gear (22 Teeth)

$

$

Currently unavailable

8

Lawn-Boy 792133

Shift Key

$

$

Currently unavailable

9

Lawn-Boy 784352

Shift Collar

$

$

Currently unavailable

10

Lawn-Boy 784370

Shift Rod & Fork

$

$

Currently unavailable

11

Lawn-Boy 778261

Bevel Gear & Bearing (44/16 Teeth)(Incl. Ref. #174)

$

$

Currently unavailable

12

Lawn-Boy 778262

Bevel Pinion (14 Teeth)

$

$

Currently unavailable

13

Lawn-Boy 778221

Bevel Gear (16 Teeth)

$

$

Currently unavailable

14

Lawn-Boy 778068

Differential Pinion

$

$

Currently unavailable

15

Lawn-Boy 778260

Ring Gear

$

$

Currently unavailable

16

Lawn-Boy 786150

Bearing Strip

$

$

Currently unavailable

17

Lawn-Boy 78139

Drive Pin

$

$

Currently unavailable

18

Lawn-Boy 786147

Neutral Spacer

$

$

Currently unavailable

20

Lawn-Boy 792139

Ball (3/8" dia.)

$

$

Currently unavailable

22

$

$

Currently unavailable

23

Lawn-Boy 788061

Seal Ring

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Lawn-Boy 792125

Retaining Ring (pkg. of 2)

$

$

Currently unavailable

27

Lawn-Boy 792035

Retaining Ring

$

$

Currently unavailable

28

Lawn-Boy 788040

Retaining Ring

$

$

Currently unavailable

29

$

$

Currently unavailable

30

$

$

Currently unavailable

30A

$

$

Currently unavailable

31

$

$

Currently unavailable

32

$

$

Currently unavailable

33

$

$

Currently unavailable

34

Lawn-Boy 780159

Bushing

$

$

Currently unavailable

36

Lawn-Boy 790071

Brake Disk

$

$

Currently unavailable

37

Lawn-Boy 790007

Brake Pad Plate

$

$

Currently unavailable

38

Lawn-Boy 790006

Brake Pad

$

$

Currently unavailable

39

Lawn-Boy 786026

Dowel Pin

$

$

Currently unavailable

40

$

$

Currently unavailable

41

Lawn-Boy 790045

Brake Lever

$

$

Currently unavailable

42

$

$

Currently unavailable

43

Lawn-Boy 792075

Locknut

$

$

Currently unavailable

44

Lawn-Boy 790025

Brake Pad Holder

$

$

Currently unavailable

46

Lawn-Boy 786086

Brake Lever Bracket

$

$

Currently unavailable

47

Lawn-Boy 774869

Axle (16-13/16" Lg.)

$

$

Currently unavailable

48

Lawn-Boy 774688

Axle (11-5/8" Lg.)(Incl. Ref. #26)

$

$

Currently unavailable

49

Lawn-Boy 778125

Spur Gear (35 Teeth)

$

$

Currently unavailable

50

Lawn-Boy 778250

Spur Gear (17 Teeth)

$

$

Currently unavailable

51

Lawn-Boy 778313

Spur Gear (19 Teeth)

$

$

Currently unavailable

52

Lawn-Boy 778121A

Spur Gear (20 Teeth)

$

$

Currently unavailable

54

Lawn-Boy 778263

Spur Gear (11 Teeth)

$

$

Currently unavailable

56

Lawn-Boy 778151

Spur Gear (15 Teeth)

$

$

Currently unavailable

57

Lawn-Boy 778249

Spur Gear (23 Teeth)

$

$

Currently unavailable

58

Lawn-Boy 778314

Spur Gear (21 Teeth)

$

$

Currently unavailable

59

Lawn-Boy 778129A

Spur Gear (30 Teeth)

$

$

Currently unavailable

61

Lawn-Boy 778265

Spur Gear (34 Teeth)

$

$

Currently unavailable

65

$

$

Currently unavailable

65A

$

$

Currently unavailable

66

Lawn-Boy 776299

Input Shaft (3.522" Lg.)

$

$

Currently unavailable

67

Lawn-Boy 776352

Shifter & Brake Shaft

$

$

Currently unavailable

69

Lawn-Boy 780161

Thrust Washer

$

$

Currently unavailable

71

Lawn-Boy 788069

-Square Cut Ring

$

$

Currently unavailable

71A

Lawn-Boy 792145

Pushnut

$

$

Currently unavailable

76

$

$

Currently unavailable

77

Lawn-Boy 788078A

Inverted Retaining Ring (pkg. of 2)

$

$

Currently unavailable

79

$

$

Currently unavailable

90

788067B

Grease (32 oz. btl. Bentonite grease)

$

$

Not available

150

Lawn-Boy 510334

Gasket Eliminator (Loctite #515)

$

$

Currently unavailable

161

Lawn-Boy 776302

Reverse Idler Assembly

$

$

Currently unavailable

174

Lawn-Boy 780085

Needle Bearing

$

$

Currently unavailable
