81180 (LT 12.5) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) CLUTCH ASSEMBLY (MODEL NO. 8180 ONLY) Parts Diagram

Lawn Tractor

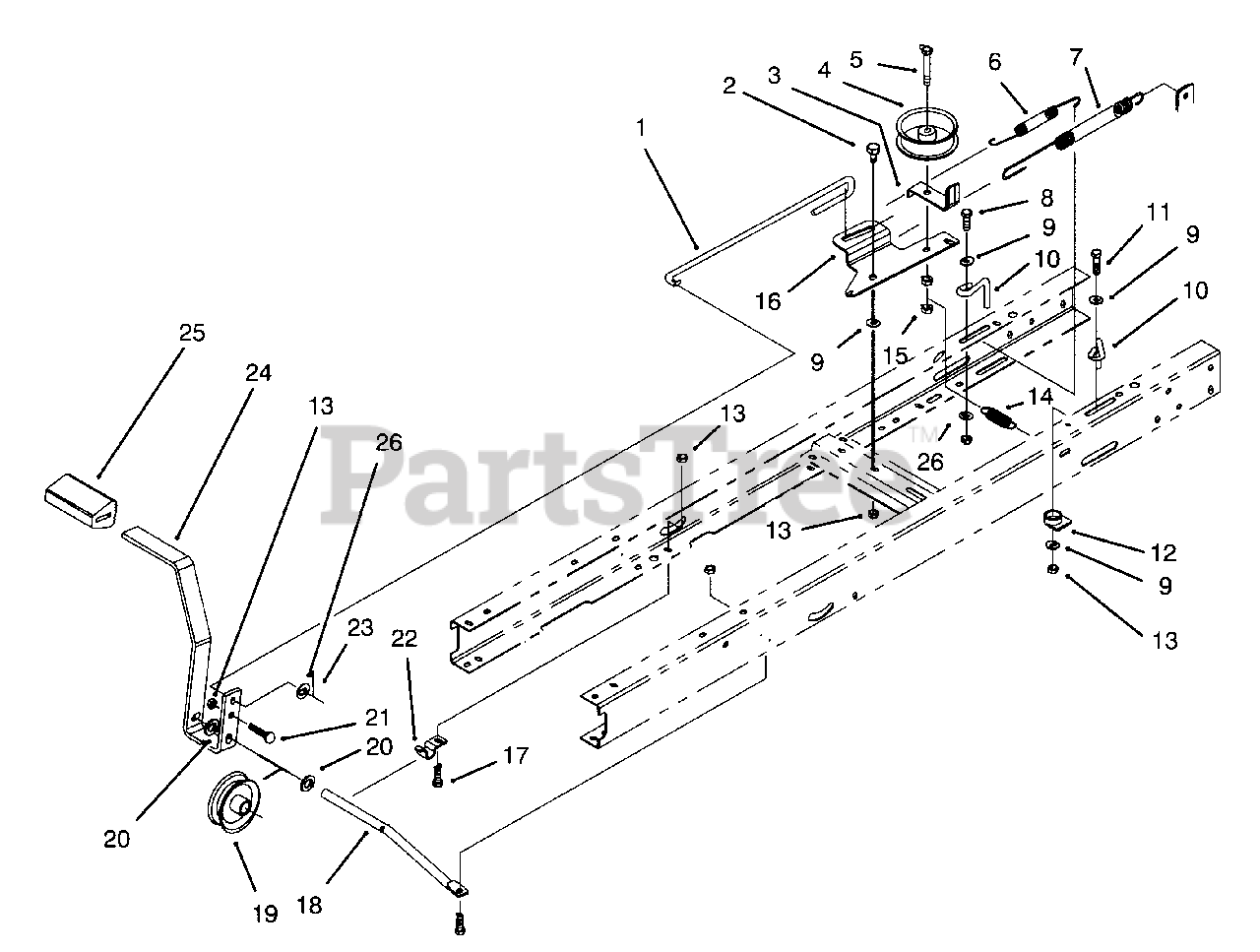

CLUTCH ASSEMBLY (MODEL NO. 8180 ONLY) Parts Diagram

  • Title
1

Lawn-Boy 88-5270

Rod-Clutch/Brake

$

$

Not available

2

Lawn-Boy 37-8770

Bolt-Shoulder

$1.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 88-5560

Guide-Idler Belt

$15.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 88-5680

Pulley-Flat Idler
(Superseded to 104-4180)

$87.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 323-11

Screw-Hex Hd. Cap

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 27-8890

Spring-Pedal Return

$47.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 88-6140

Spring-Brake

$

$

Not available

8

Lawn-Boy 322-5

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 5-4460

Washer-Flat

$7.99

$

In Stock, Qty 6

0

10

Lawn-Boy 88-5460

Guide-Trans. Belt

$14.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 322-7

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 84-5610

Guide-Cable

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 88-6330

Spring-Extension

$9.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 3296-59

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

16

Lawn-Boy 88-6070

Arm-Idler

$

$

Not available

17

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 13

0

18

Lawn-Boy 88-5500

Rod-Pedal Pivot

$42.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 88-4700

Pulley-Cable

$27.99

$

In Stock, only 4 left!

0

20

Lawn-Boy 3256-26

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 3230-3

Bolt-Carriage

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 88-4810

Clamp-Shift Pivot

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 3272-10

Pin-Cotter

$1.49

$

In Stock, Qty 14

0

24

Lawn-Boy 88-5000

Pedal-Clutch/Brake
(Superseded to 88-5000-03)

$

$

Not available

25

Lawn-Boy 65-2920

Pad-Pedal

$40.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0
