81140 (LT 10) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) STEERING ASSEMBLY (MODEL NO. 81140 ONLY) Parts Diagram

Lawn Tractor

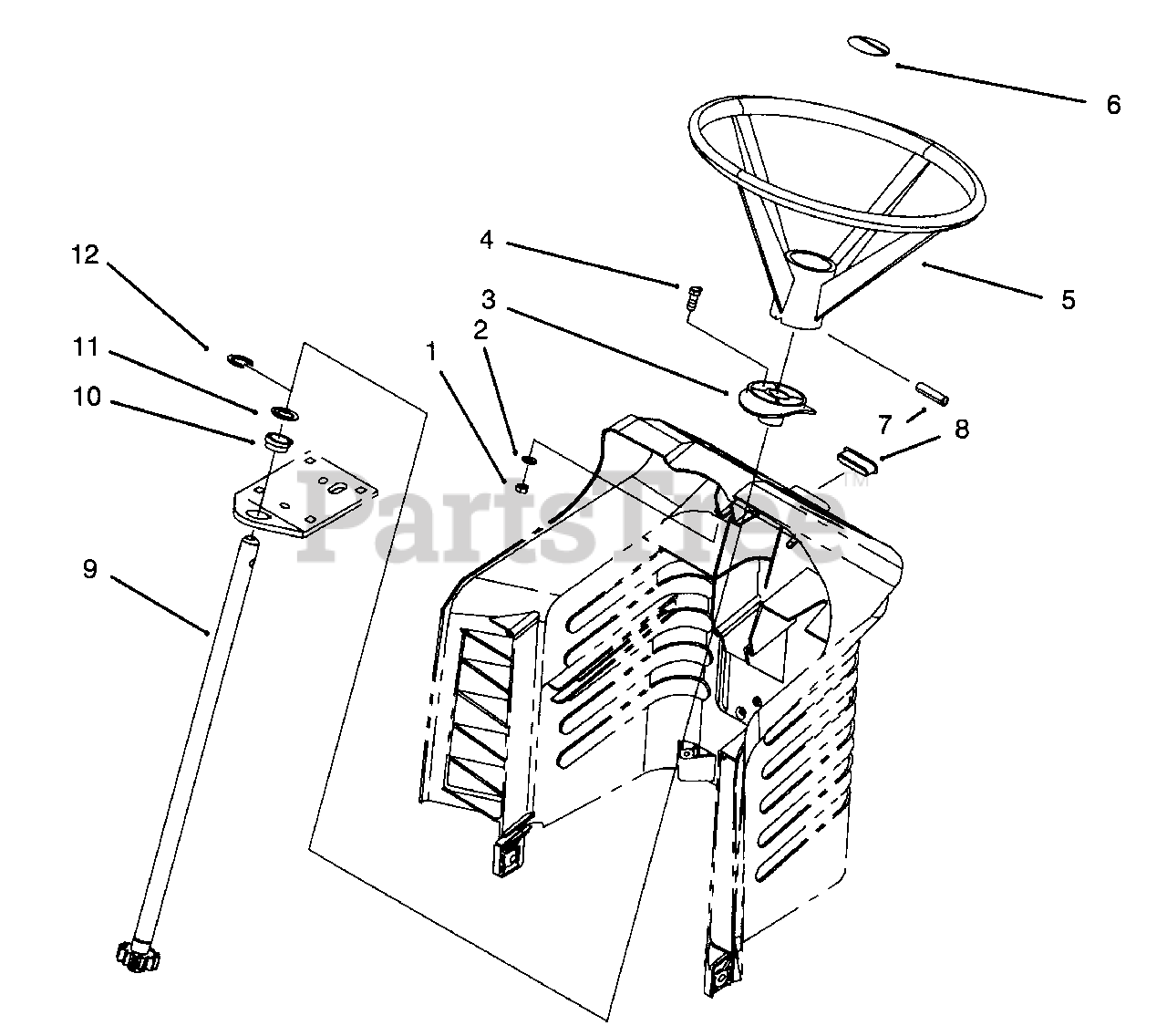

STEERING ASSEMBLY (MODEL NO. 81140 ONLY) Parts Diagram

  • Title
1

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 9

0

2

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 88-4190

Bushing-Sliding

$18.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 321-4

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 49-3241

Wheel-Steering (Incl. Ref. #6)

$252.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 88-9840

Insert-Steering Wheel

$

$

Not available

7

$3.49

$

In Stock, Qty 7

0

$5.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 88-6380

Shaft-Steering

$195.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 88-5150

Bushing-Flange

$3.99

$

In Stock, Qty 16

0

11

Lawn-Boy 3-6498

Washer-Thrust

$6.99

$

In Stock, Qty 15

0

12

$1.99

$

In Stock, Qty 14

0
