81140 (LT 10) - Lawn-Boy Lawn Tractor (SN: 003900001 - 003999999) (1993) ENGINE BRIGGS & STRATTON MODEL 254707-0128-01 Parts Diagram

Lawn Tractor

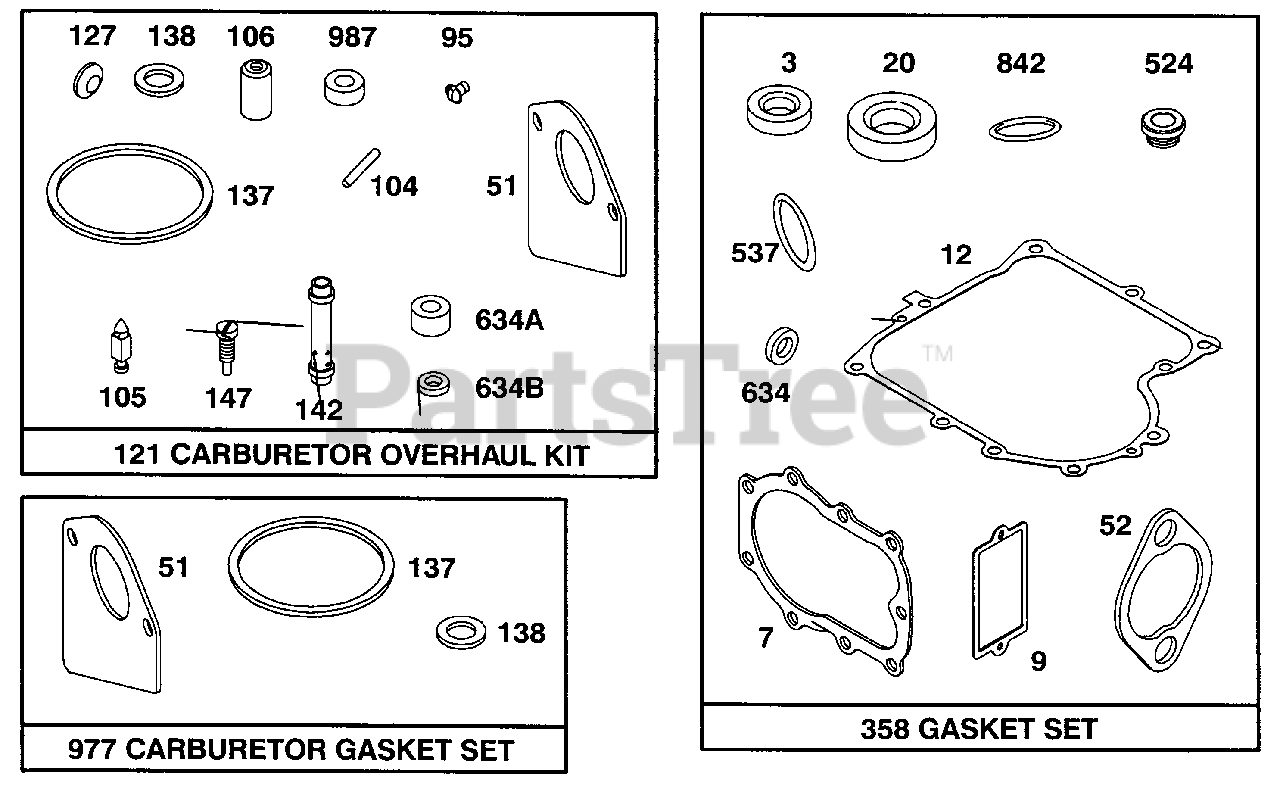

ENGINE BRIGGS & STRATTON MODEL 254707-0128-01 Parts Diagram

  • Title

3

Lawn-Boy 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

7

Lawn-Boy 271866

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

9

Lawn-Boy 27803

Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

12

Lawn-Boy 271702

Gasket-Crankcase Cover (1/64" Thick)

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Lawn-Boy 270915

Gasket-Crankcase Cover (.005" Thick)

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Lawn-Boy 270916

Gasket-Crankcase Cover (.009" Thick)

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

20

Lawn-Boy 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

51

Lawn-Boy 272465

Gasket-Carburetor (Carb. to Elbow)

Note: Included in Carburetor Overhaul Kit-Part No. 495837. Included in Carburetor Gasket Set-Part No. 494385

$

$

Currently unavailable

52

Lawn-Boy 272554

Gasket-Carburetor (Elbow to Cylinder)

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

95

Lawn-Boy 94098

Screw-Throttle

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

104

Lawn-Boy 231789

Pin-Float Hinge

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

105

Lawn-Boy 231855

Valve Assy.-Inlet Needle

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

106

Lawn-Boy 231854

Inlet Valve Seat

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

121

Lawn-Boy 495837

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Not available

137

Lawn-Boy 281165

Gasket-Float Bowl

Note: Included in Carburetor Gasket Set-Part No. 494385 Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

138

Lawn-Boy 281164

Washer-Float Bowl Screw

Note: Included in Carburetor Overhaul Kit-Part No. 495837. Included in Carburetor Gasket Set-Part No. 494385

$

$

Currently unavailable

142

Lawn-Boy 494878

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

147

Lawn-Boy 231794

Pilot-Jet

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

358

Lawn-Boy 393411

Gasket Set

$

$

Currently unavailable

524

Lawn-Boy 68838

Seal-Filter Tube

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

537

Lawn-Boy 281106

O-Ring-Air Cleaner

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

634

Lawn-Boy 491323

Seal-Governor

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

634A

Lawn-Boy 281168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

634B

Lawn-Boy 281167

Washer-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable

842

Lawn-Boy 270920

Seal-Oil Filler Cap

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

977

Lawn-Boy 494385

Carburetor Gasket Set

$

$

Currently unavailable

987

Lawn-Boy 281166

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 495837.

$

$

Currently unavailable
