811 GT II (1690452) - Allis-Chalmers Garden Tractor, 11hp Brake & Clutch Group Parts Diagram

Garden Tractor, 11hp

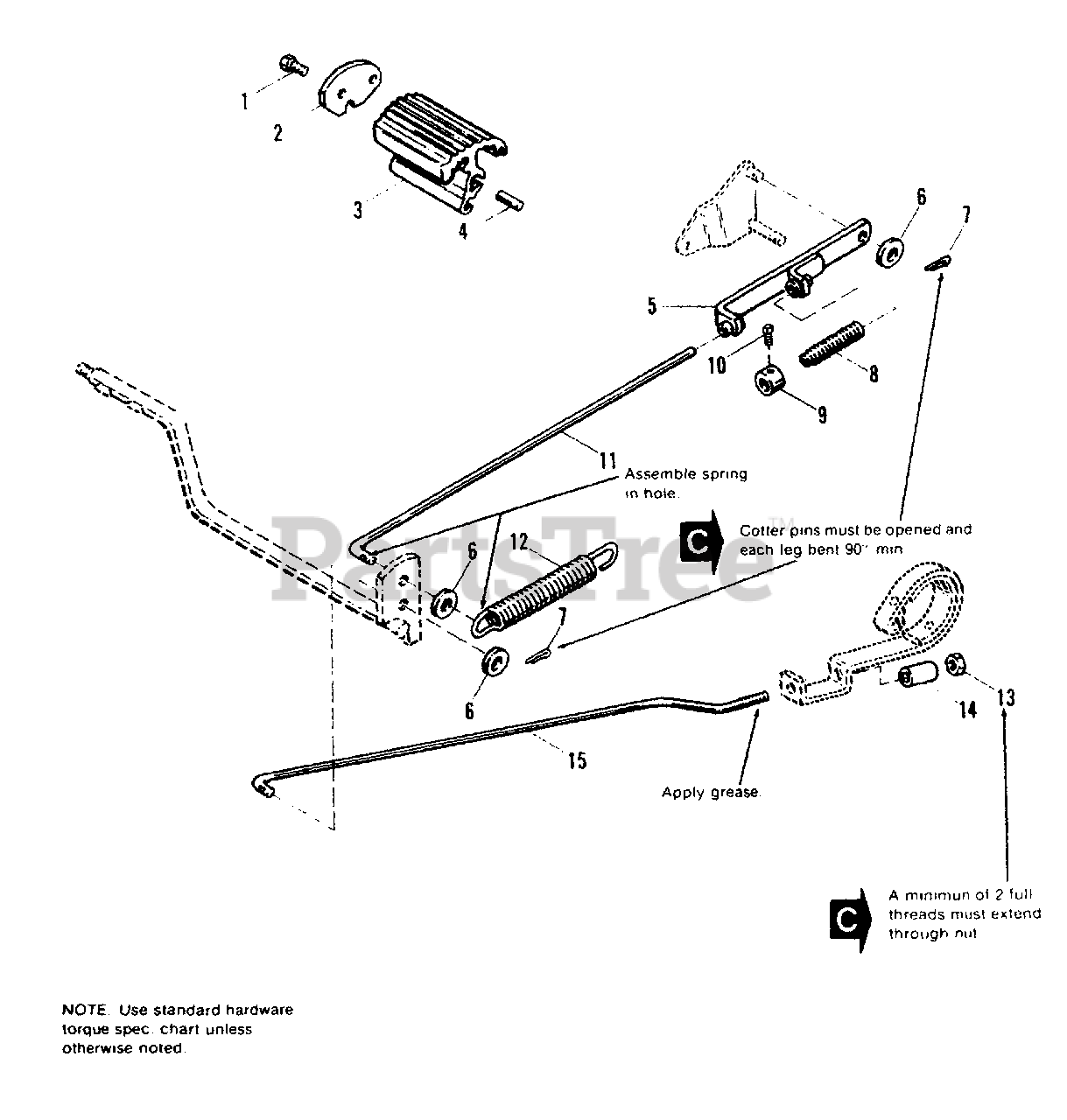

Brake & Clutch Group Parts Diagram

  • Title
1

Simplicity 2827429

SCREW, Hex, Taptite, 1/4-20 x 5/8

$

$

Not available

2

Simplicity 1656854

PLATE, End

$

$

Not available

3

Simplicity 1656852SM

PEDAL, Foot

$

$

Not available

4

Simplicity 1659907SM

DAMPER, Rubber

$5.49

$

In Stock, only 2 left!

0

5

Simplicity 1666161

GUIDE ASSY., Rod

$

$

Not available

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

$15.99

$

Usually ships in 2-12 days

0

9

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

10

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

11

Simplicity 1665655

ROD, Clutch

$

$

Not available

12

Simplicity 1666759SM

SPRING, Return

$

$

Not available

13

Simplicity 2822694

LOCKNUT, Esna, Hex, 3/8-16

$

$

Not available

14

$

$

Not available

15

Simplicity 1665456

ROD, Brake

$

$

Not available
