81056 (129-282R316) - Westminster III Walk-Behind Mower (1989) (W.E. Aubuchon) Parts Parts Diagram

III Walk-Behind Mower

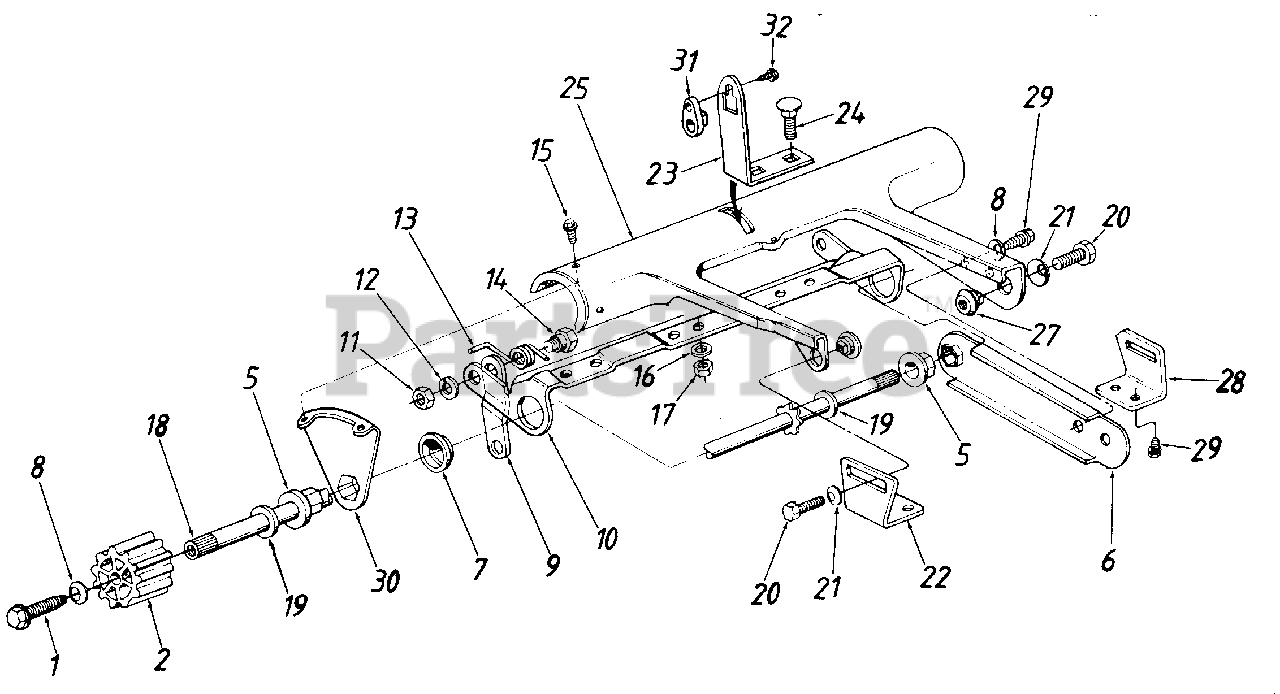

Parts Parts Diagram

  • Title

1

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 -20 x .75" Lg .

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-0908

Wheel Drive Pinion
(Superseded to 931-0908)

$16.99

$

Usually ships in 3-6 days

0

5

MTD 741-0503

Hex Flange Brg. .504" I.D.

$3.49

$

Usually ships in 3-6 days

0

6

MTD 17018

Hex Bearing Support

Variations

MTD 17018-0637

No Longer Available SUPPORT-BE - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 741-0504

Flange Bearing .879" I.D.

$

$

Not available

8

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

9

MTD 14760A

Link 4.58" Lg.

Variations

MTD 14760A-0637

No Longer Available LINK - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 16832

Drive Engagement Cam

$

$

Not available

11

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 732-0569

Torsion Spring-R.H.
(Superseded to 732-0569A)

$

$

Not available

MTD 732-0570

Torsion Spring-L.H.
(Superseded to 732-0570A)

Note: (Not Shown)

$

$

Not available

14

MTD 738-0754

Shoulder Bolt .437" Dia.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0892

Hex L-Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

16

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

18

MTD 738-0732

Drive Shaft Ass'y.

$

$

Not available

19

MTD 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

20

MTD 710-0759

Hex Bolt 5/16-18 x 5/8" Lg.*

$6.99

$

Usually ships in 3-6 days

0

21

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

MTD 16531A

Pivot Bracket-R.H.

$

$

Not available

23

MTD 16756

Engagement Arm-L.H.

Variations

MTD 16756-0637

No Longer Available ARM-ENGAGE - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

25

MTD 17019

Rear Pinion Pivot Cover

Variations

MTD 17019-0637

No Longer Available COVER-PINI - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 738-0739

Shoulder Nut

$

$

Not available

28

MTD 14759A

Pivot Bracket-L.H.

$

$

Not available

29

MTD 710-0892

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

30

MTD 17017

Hex Bearing Axle Brkt.

Variations

MTD 17017-0637

No Longer Available BRACKET-AX - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 746-0606

Barrel Cable Hold-Down-R.H.

$

$

Not available

32

MTD 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 8

0
