810 EPT - Poulan Pole Saw Handle and Controls Parts Diagram

Pole Saw

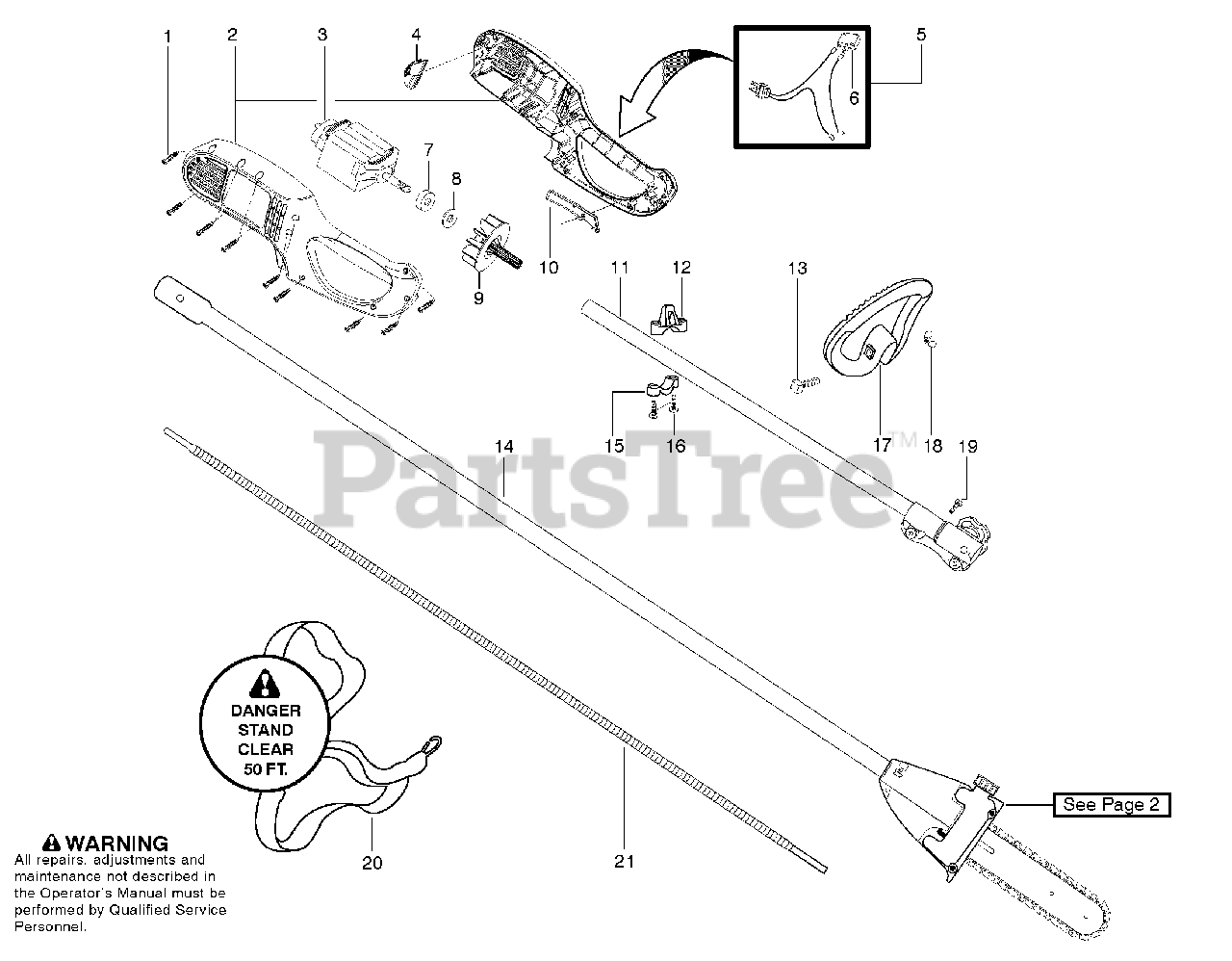

Handle and Controls Parts Diagram

  • Title

$3.99

$

In Stock, Qty 9

0

2

Poulan 530071963

Assy-Housing Set w/decal

$27.99

$

Usually ships in 3-10 days

0

3

Poulan 530404326

Assy-Motor

$

$

Not available

4

Poulan 530404385

Retainer-Cord

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 530404386

Assy-Wire Harness

Note: (Incl. #6)

$10.99

$

Usually ships in 3-10 days

0

6

Poulan 530404396

Switch-Momentary

$3.99

$

Usually ships in 3-10 days

0

7

$

$

Not available

8

$

$

Not available

9

Poulan 530404327

Fan-Cooling

$

$

Not available

10

Poulan 530404325

Trigger-Switch

$

$

Not available

11

Poulan 530071965

Kit-Upper shaft w/decal

Note: (Incl. #19)

$

$

Not available

12

Poulan 530057986

Clamp-Upper Harness

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 530015786

Bolt-Handle

$4.99

$

In Stock, only 4 left!

0

14

Poulan 530096012

Assy-Driveshaft

$

$

Not available

15

Poulan 530057987

Clamp-Lower Harness

$6.49

$

Usually ships in 3-10 days

0

16

$6.49

$

In Stock, Qty 8

0

17

Poulan 530058583

Assy-Handle

Note: (Incl. 13 & 18)

$6.99

$

Usually ships in 3-10 days

0

18

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

19

$3.49

$

Usually ships in 3-10 days

0

20

Poulan 530094408

Assy-Shoulder Strap
(Superseded to 530094417)

$

$

Not available

21

Poulan 530056570

Shaft-Flex

$24.99

$

Usually ships in 3-10 days

0

21

Poulan 115260526

Manual - Operator

Note: Not Shown

$

$

Not available

21

Poulan 530031159

Wrench - Hex (5/32")

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

21

Poulan 530150031

Attachment - Hanger

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

21

Poulan 530150125

Decal - Model Warning

Note: Not Shown

$

$

Not available

21

Poulan 530150181

Decal - Shaft Warning

Note: Not Shown

$

$

Not available

21

Poulan 530150724

Decal - Pole Saw Warning

Note: Not Shown

$

$

Not available
