81-20KS01 (D-200) - Toro Lawn Tractor (1978) SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

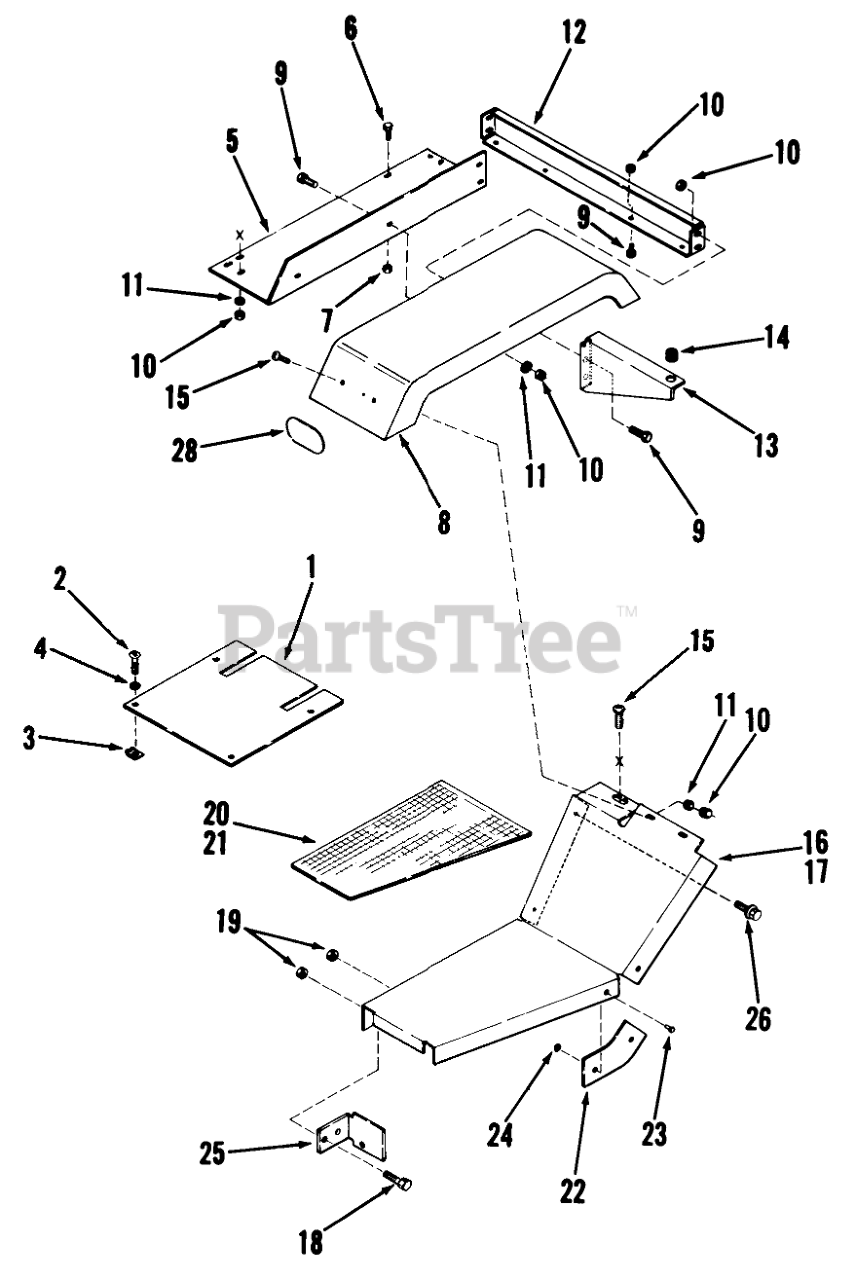

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 103782

Access Cover Plate

$

$

Not available

2

Toro 911684

Screw-Hex HD Slotted

$

$

Not available

3

Toro 6519

Speed Nut

$

$

Not available

4

Toro 920122

LOCKWASHER

$

$

Not available

5

Toro 103848

Plate-Fender RH

$

$

Not available

5

Toro 103849

Plate-Fender LH

$

$

Not available

6

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

7

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

8

Toro 105267

Fender

$

$

Not available

9

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

12

Toro 103226

Channel

$

$

Not available

13

Toro 103225

Wear Plate

$

$

Not available

14

Toro 5667

GROMMET

$4.99

$

In Stock, Qty 5

0

15

Toro 910865

Screw
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

16

Toro 104818

Footrest RH

$

$

Not available

17

Toro 104819

Footrest LH

$

$

Not available

18

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

19

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

20

Toro 102826

Footrest Mat RH

$

$

Not available

21

Toro 102827

Footrest Mat LH

$

$

Not available

22

Toro 102712

Filler Plate

$

$

Not available

23

Toro 923787

RIVET
(Superseded to 3269-13)

$0.99

$

In Stock, only 2 left!

0

24

Toro 920003

WASHER

$

$

Not available

25

Toro 100997

Bracket

$

$

Not available

26

Toro 960201

BOLT

$

$

Not available

28

Toro 102929

Reflector

$

$

Not available
