81-20KS01 (D-200) - Toro Lawn Tractor (1978) HYDROSTATIC TRANSMISSION, COUPLING AND MANIFOLD Parts Diagram

Lawn Tractor

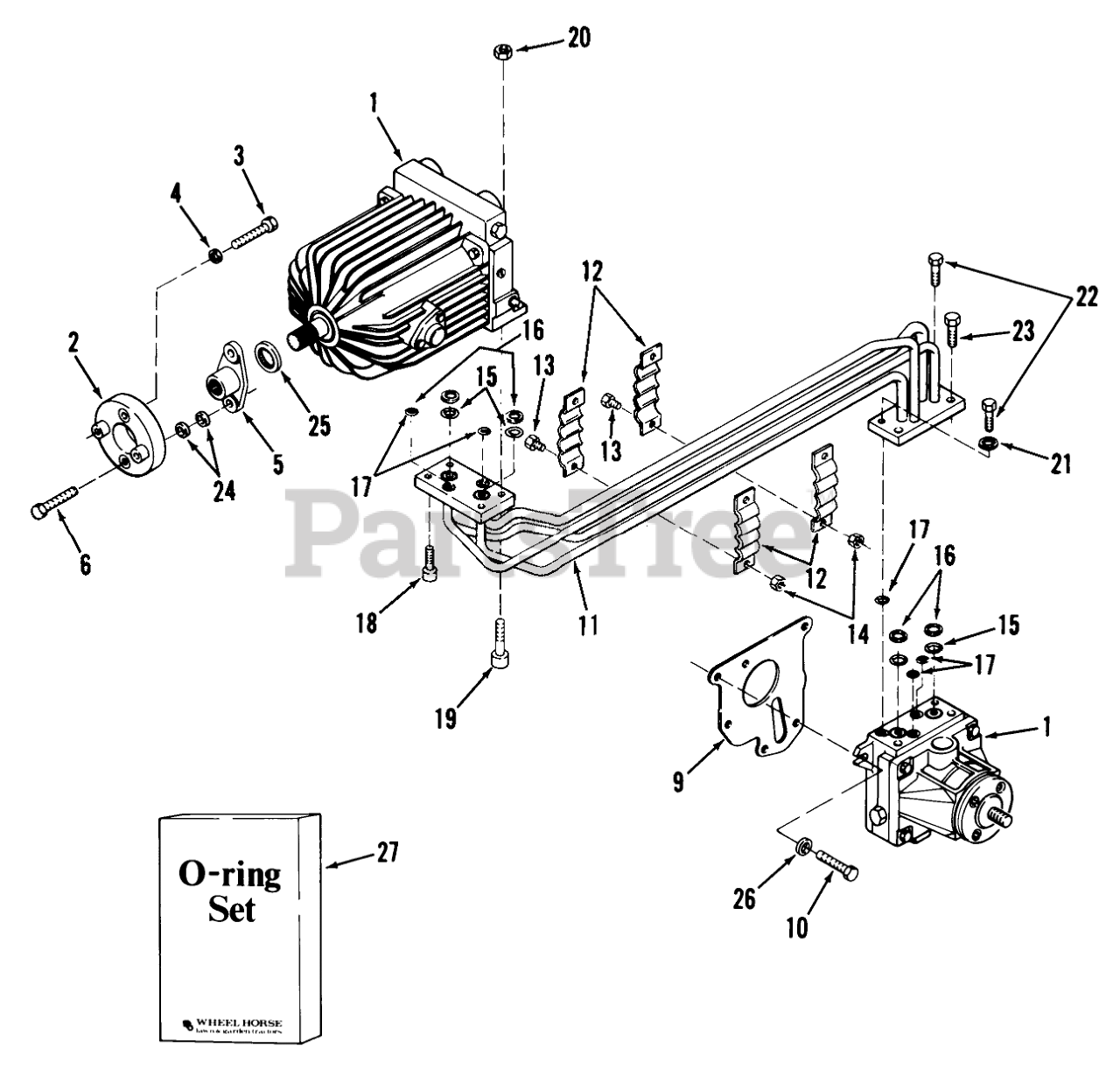

HYDROSTATIC TRANSMISSION, COUPLING AND MANIFOLD Parts Diagram

  • Title

1

Toro 106459

Trans Assembly Piston To Piston-Complete

$

$

Not available

2

Toro 102622

Coupling
(Superseded to 24-0080)

$

$

Not available

3

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

4

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

5

Toro 103029

COUPLING DRIVEN R

$

$

Not available

6

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

9

Toro 102759

GASKET

$11.99

$

Usually ships in 3-6 days

0

10

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

11

Toro 106158

Manifold, Hydraulic

$

$

Not available

12

Toro 106159

Clamp

$

$

Not available

13

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

14

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

15

Toro 971018

O RING

$8.99

$

In Stock, Qty 6

0

16

Toro 103184

RING BACKUP

$9.99

$

In Stock, Qty 7

0

17

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

18

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

19

Toro 911103

Screw

$

$

Not available

20

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

21

Toro 102817

SEAL-MANIFOLD BOLT

$

$

Not available

22

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

23

Toro 911101

Bolt 3/8-16 X 1

$

$

Not available

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

25

Toro 106641

WASHER-INT SPLINE

$

$

Not available

26

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

27

Toro 101534

O-Ring Kit-S.A. Incs 15, 16, 17 & 21

$

$

Not available

3

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, only 3 left!

0
