81-20KS01 (D-200) - Toro Lawn Tractor (1978) HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor

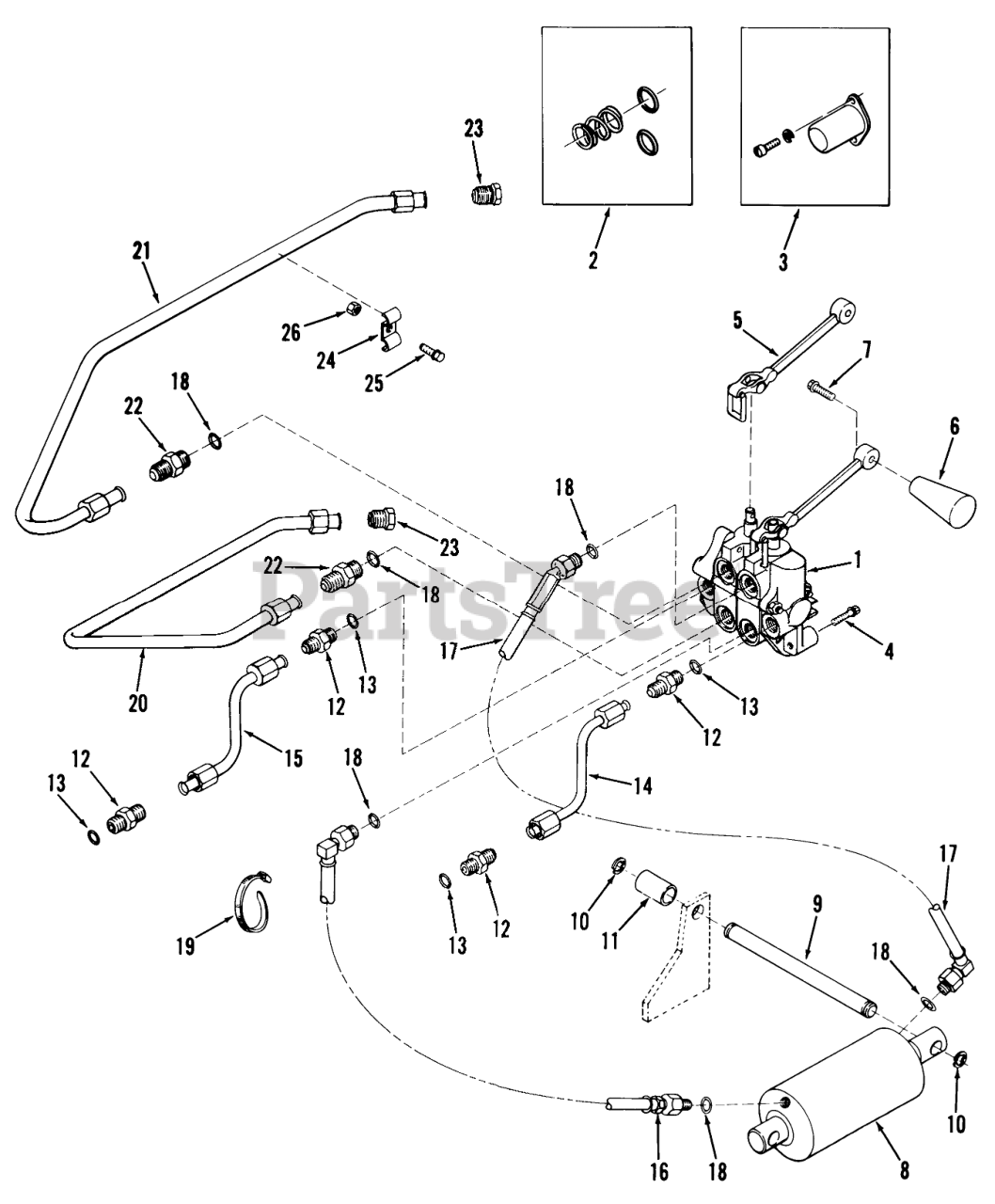

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Toro 106681

Hydraulic Valve Assy
(Superseded to 219001)

$

$

Not available

2

Toro 105108

0-Ring Kit-S.A.
(Superseded to 110976)

$

$

Not available

3

Toro 101536

Spool Cap Kit

$

$

Not available

4

Toro 926694

SCREW

$

$

Not available

5

Toro 105145

S/A HANDLE&HARDWARE

$

$

Not available

6

Toro 102892

KNOB

$

$

Not available

7

Toro 960154

SCREW

$

$

Not available

8

Toro 8365

Cylinder

$

$

Not available

9

Toro 102037

Cylinder Pivot

$

$

Not available

10

Toro 936116

Snap Ring

$

$

Not available

11

Toro 979118

Spacer

$

$

Not available

12

Toro 102628

FITTING

$

$

Not available

13

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

14

Toro 102335

PRESSURE TUBE ASSY

$

$

Not available

15

Toro 104423

ASSY TUBE PRESSURE

$

$

Not available

16

Toro 104983

ASSY-HYDRAULIC HOSE

$

$

Not available

17

Toro 102765

Hydraulic Hose Assy

$

$

Not available

18

Toro 973310

O RING

$5.99

$

In Stock, only 2 left!

0

19

Toro 100571

PLASTIC TIE

$

$

Not available

20

Toro 102040

Front Tube Assy

$

$

Not available

21

Toro 102041

Rear Tube Assy

$

$

Not available

22

Toro 102629

FITTING

$

$

Not available

23

Toro 102630

Plug

$

$

Not available

24

Toro 102627

Clamp Tube

$

$

Not available

25

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

26

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0
