81-20KS01 (D-200) - Toro Lawn Tractor (1978) ENGINES AND MOUNTING HARDWARE Parts Diagram

Lawn Tractor

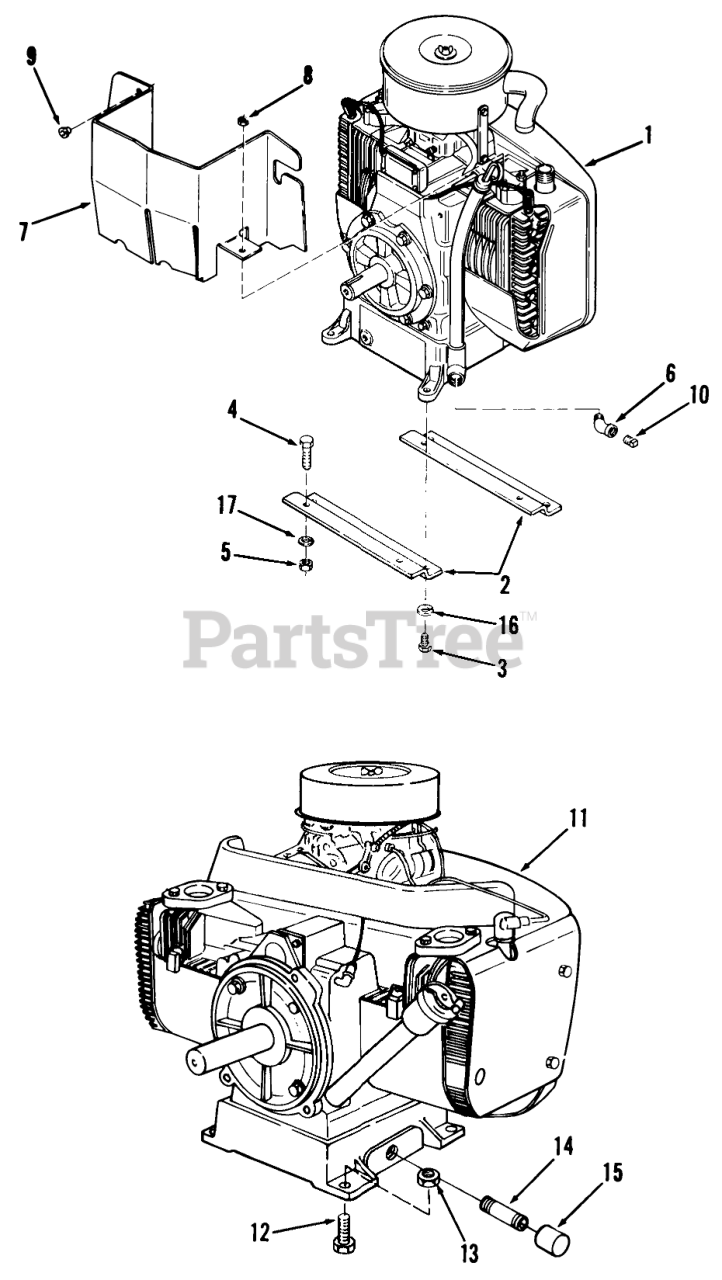

ENGINES AND MOUNTING HARDWARE Parts Diagram

  • Title

1

Toro 104990

Engine-16 HP Onan

$

$

Currently unavailable

2

Tecumseh 105023

Bracket-Engine

$

$

Currently unavailable

3

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

4

Toro 908057

Bolt
(Superseded to 325-4)

$1.49

$

In Stock, only 2 left!

0

5

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

6

Toro 943084

Street Elbow 1/2 X 45

$

$

Not available

7

Tecumseh 105024

Heat Shield

$

$

Currently unavailable

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 938018

BUSHING-NYLON .75

$

$

Not available

10

Toro 943021

ELBOW

$

$

Not available

16

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

17

Toro 192008

Washer

$

$

Currently unavailable

12

Toro 908059

Hhcs
(Superseded to 325-6)

$3.49

$

In Stock, only 4 left!

0

13

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

14

Toro 943355

Nipple 3/4 Pipe X2

$

$

Currently unavailable

15

Toro 103162

Cap-3/4 Pipe

$

$

Not available
