81-20KS01 (D-200) - Toro Lawn Tractor (1978) D-160 ONAN ENGINE, STARTING MOTOR PARTS GROUP Parts Diagram

Lawn Tractor

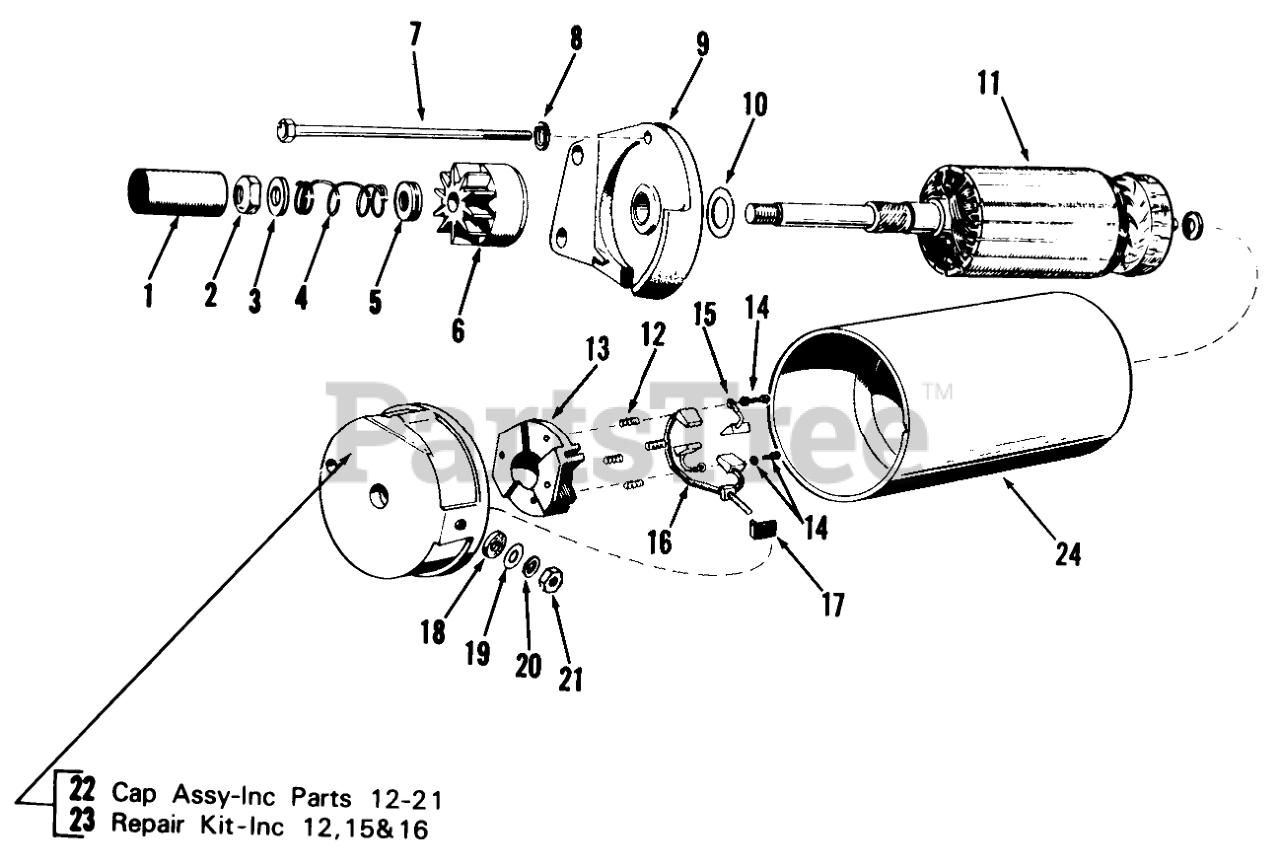

D-160 ONAN ENGINE, STARTING MOTOR PARTS GROUP Parts Diagram

  • Title
1

Toro 201233

Dust Cover

$

$

Not available

2

Toro 201234

Stop Nut
(Superseded to 57-9450)

$

$

Not available

3

Toro 201235

Washer-Stop Nut
(Superseded to 57-9450)

$

$

Not available

4

Toro 201236

Spring-Anti Drift
(Superseded to 57-9450)

$

$

Not available

5

Toro 201237

Dust Cover Spacer
(Superseded to 57-9450)

$

$

Not available

6

Toro 201238

Drive Assembly
(Superseded to 57-9420)

$

$

Not available

7

Toro 201239

Tie Bolt

$

$

Not available

8

Toro 201240

Lock Washer

$

$

Currently unavailable

9

Toro 201241

Cap Assy-Drive End

$

$

Not available

10

Toro 201242

Armature Thrust Washer

$

$

Not available

11

Toro 201243

Armature

$

$

Not available

22

Toro 201244

Cap Assy-Inc Parts 12-21
(Superseded to 57-9400)

$

$

Not available

23

Toro 201245

Repair Kit Inc 12, 15 & 16

$

$

Not available

24

N/A-Order Complete Starter Motor 201252

$

$

Not available
