81-20KS01 (D-200) - Toro Lawn Tractor (1978) D-160 ONAN ENGINE, CYLINDER BLOCK GROUP Parts Diagram

Lawn Tractor

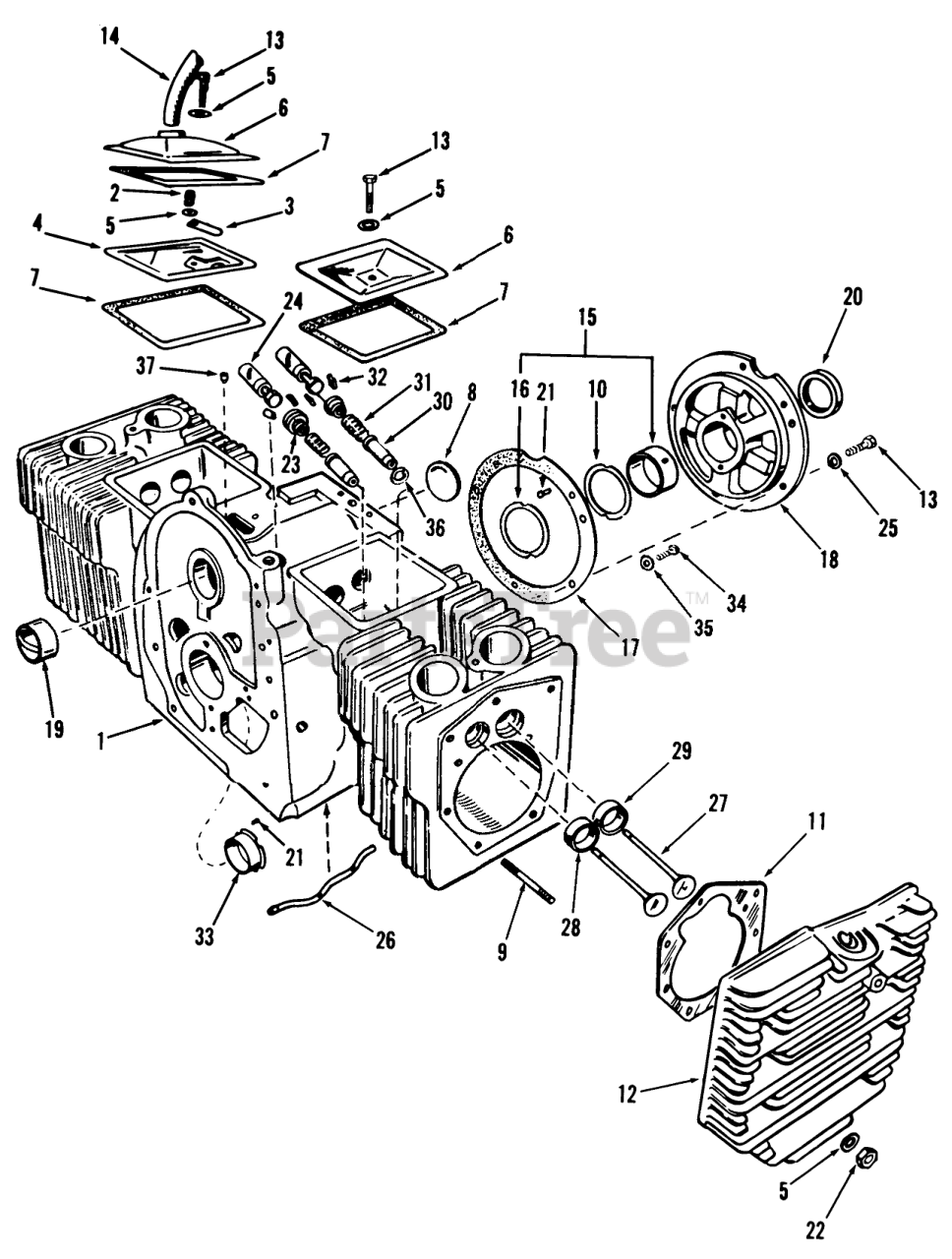

D-160 ONAN ENGINE, CYLINDER BLOCK GROUP Parts Diagram

  • Title

1

Toro 201291

Short Block

$

$

Not available

1

Toro 201001

Block Assy

Note: Included in BLOCK ASSEMBLY.

$

$

Not available

2

Toro 201002

Spring, Breather Valve
(Superseded to 57-8550)

$

$

Not available

3

Toro 201003

Breather Valve
(Superseded to 57-8560)

$

$

Not available

4

Toro 201004

Breather Baffle
(Superseded to 59-0310)

$

$

Not available

5

Toro 201007

Washer, Cyl Head Screws 5/16 in

$

$

Currently unavailable

5

Toro 201006

Washer, Valve Compartment 1/4 in.
(Superseded to 57-9740)

$

$

Not available

5

Toro 201005

Breather Valve (1/4"-Steel)

$

$

Currently unavailable

6

Toro 201008

Cover With Tube Opening LH

$

$

Not available

6

Toro 201009

Cover W/O Tube Opening RH
(Superseded to 59-0150)

$

$

Not available

7

Toro 201010

Valve Cover Gasket
(Superseded to 57-8280)

$12.99

$

In Stock, only 1 left!

0

8

Toro 201011

PlugCamshaft Expansion
(Superseded to 57-9690)

Note: Included in BLOCK ASSEMBLY.

$8.49

$

Usually ships in 3-6 days

0

9

Toro 201013

Cylinder Head (5/16 x 2 5/16")

$

$

Not available

9

Toro 201014

STUD-CYL HEAD

$7.99

$

Usually ships in 3-6 days

0

10

Toro 201015

Rear Bearing Shim
(Superseded to 57-8170)

Note: Included in BLOCK ASSEMBLY.

$8.99

$

Usually ships in 3-6 days

0

11

Toro 201016

Gasket-Cylinder Head

$

$

Not available

12

Toro 201017

Cylinder Head RH

$

$

Not available

12

Toro 201018

Cylinder Head LH

$

$

Not available

13

Toro 201283

Cap Screw-Valve Cover
(Superseded to 742849)

$

$

Not available

13

Toro 201282

Cap Screw-Bearing Plate

Note: Included in BLOCK ASSEMBLY.

$

$

Currently unavailable

14

Toro 201019

TUBE-BREATHER

$

$

Not available

15

Toro 201023

.020" Undersize

$

$

Currently unavailable

15

Toro 201022

.010" Undersize

$

$

Currently unavailable

15

Toro 201021

.002" Undersize

$

$

Currently unavailable

15

Toro 201020

Standard
(Superseded to 57-8050)

Note: Included in BLOCK ASSEMBLY.

$248.99

$

Usually ships in 3-6 days

0

15

Toro 201024

.030" Undersize

$

$

Not available

16

Toro 201025

Cranksft Bearing Thrust Washer
(Superseded to 57-8160)

Note: Included in BLOCK ASSEMBLY.

$

$

Not available

17

Toro 201026

Gasket, Bearing Plate
(Superseded to 57-8010)

Note: Included in BLOCK ASSEMBLY.

$29.99

$

In Stock, only 2 left!

0

18

Toro 201027

Bearing Plate

Note: Included in BLOCK ASSEMBLY.

$

$

Not available

19

Toro 201028

Camshaft Bearing (Precision)
(Superseded to 57-8000)

Note: Included in BLOCK ASSEMBLY.

$161.99

$

Usually ships in 3-6 days

0

20

Toro 201029

Bearing Plate Seal
(Superseded to 57-9590)

Note: Included in BLOCK ASSEMBLY.

$43.99

$

In Stock, only 2 left!

0

21

Toro 201030

Pin-Main Bearing Stop
(Superseded to 59-0730)

Note: Included in BLOCK ASSEMBLY.

$

$

Not available

22

Toro 201284

Cylinder Head-Hex (5/16-24)

$

$

Currently unavailable

23

Toro 201031

Valve Spring Retainer
(Superseded to 82-0070)

$

$

Not available

24

Toro 201034

.002" Oversize

$

$

Currently unavailable

24

Toro 201033

.001" Oversize

$

$

Currently unavailable

24

Toro 201032

Standard
(Superseded to 57-8450)

$

$

Not available

24

Toro 201035

.005" Oversize

$

$

Currently unavailable

25

Toro 201036

Lockwasher-Rear Bearing Plate

Note: Included in BLOCK ASSEMBLY.

$

$

Currently unavailable

26

Toro 201037

Crankcase Oil Tube

Note: Included in BLOCK ASSEMBLY.

$

$

Not available

27

Toro 201038

Intake

$

$

Not available

27

Toro 201039

VALVE-EXHAUST

$

$

Not available

28

Toro 201042

.005" Oversize

$

$

Currently unavailable

28

Toro 201041

.002" Oversize

$

$

Currently unavailable

28

Toro 201040

Standard
(Superseded to 59-0100)

Note: Included in BLOCK ASSEMBLY.

$

$

Not available

28

Toro 201044

.025" Oversize

$

$

Currently unavailable

28

Toro 201043

55095 ADD.REPLAC.PA

$3.23

$

Usually ships in 3-6 days

0

29

Toro 201046

.002" Oversize

$

$

Currently unavailable

29

Toro 201045

Standard
(Superseded to 59-0050)

Note: Included in BLOCK ASSEMBLY.

$

$

Not available

29

Toro 201049

.025" Oversize

$

$

Currently unavailable

29

Toro 201048

.010" Oversize

$

$

Currently unavailable

29

Toro 201047

.005" Oversize

$

$

Currently unavailable

30

Toro 201050

Valve Guide
(Superseded to 57-8290)

Note: Included in BLOCK ASSEMBLY.

$

$

Not available

31

Toro 201051

Valve Spring

$

$

Not available

32

Toro 201052

Lock-Valve and Spring Retainer
(Superseded to 57-8260)

$

$

Not available

33

Toro 201054

.002" Undersize

$

$

Currently unavailable

33

Toro 201053

Standard
(Superseded to 57-8030)

$

$

Not available

33

Toro 201057

.030" Undersize

$

$

Currently unavailable

33

Toro 201056

.020" Undersize

$

$

Currently unavailable

33

Toro 201055

.010" Undersize

$

$

Currently unavailable

34

Toro 201058

Cap Screw-Cylinder Block

$

$

Currently unavailable

35

Toro 201059

Copper Washer 3/8-Oil Pressure
(Superseded to 57-9760)

$

$

Not available

36

Toro 201060

Gasket-Intake Valve Guide
(Superseded to 57-8240)

$

$

Not available

37

Toro 201061

Breather Hole Plug
(Superseded to 59-0770)

$

$

Not available
