81-16OS01 (D-160) - Toro Lawn Tractor (1978) CHOKE AND THROTTLE CONTROLS, AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

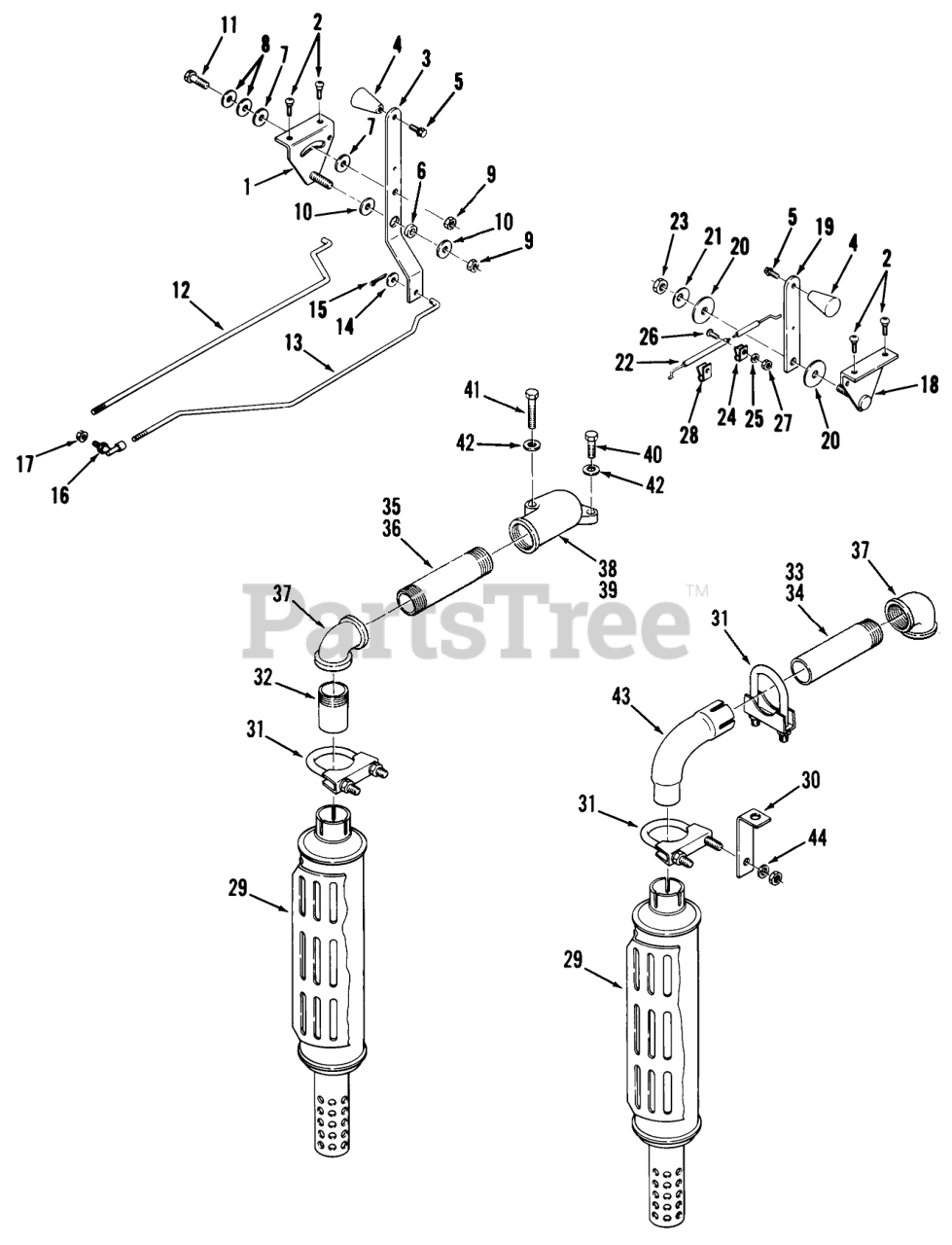

CHOKE AND THROTTLE CONTROLS, AND EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 105963

Assy-Bracket

$

$

Not available

2

Toro 101410

Screw, Special

$

$

Not available

3

Toro 103733

Handle Throttle

$

$

Not available

4

Toro 102892

KNOB

$

$

Not available

5

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

6

Toro 6331

SPACER CLUTCH ARM

$

$

Not available

7

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

8

Toro 100365

WASHER-SPRING DISC

$

$

Not available

9

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

10

Toro 920224

Washer-3/8

$

$

Currently unavailable

11

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

12

Tecumseh 105015

Rod-Throttle

$

$

Not available

14

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

15

Toro 932007

Cotter Pin 3/32 X 1/2

$

$

Not available

16

Toro 102903

BALL JOINT ASSY R

$

$

Not available

17

Toro 915000

Nut

$

$

Not available

18

Toro 105963

Assy-Bracket

$

$

Not available

19

Toro 102711

HANDLE

$

$

Not available

20

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

21

Toro 100365

WASHER-SPRING DISC

$

$

Not available

22

Tecumseh 105014

CABLE-CHOKE CONTROL

$287.99

$

Usually ships in 3-12 days

0

23

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

24

Toro 7059

CLIP BOWDEN WIRE

$2.99

$

Usually ships in 3-6 days

0

25

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

26

Toro 960140

Screw
(Superseded to 9601404)

$

$

Not available

27

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

28

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

29

Toro 105096

ASSY-MUFFLER

$

$

Not available

30

Tecumseh 105018

Bracket

$

$

Currently unavailable

31

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

33

Tecumseh 105019

NIPPLE-EXHAUST 1X4

$

$

Currently unavailable

34

Tecumseh 105020

Nipple-1" x 6"

$

$

Currently unavailable

37

Toro 943026

ELBOW

$

$

Not available

43

Toro 104205

TUBE-INLET

$285.99

$

Usually ships in 3-6 days

0

44

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

1

Toro 103731

Assy-Bracket

$

$

Not available

13

Toro 103730

Rod-Throttle

$

$

Not available

18

Toro 103731

Assy-Bracket

$

$

Not available

22

Toro 102863

CABLE CHOKE CONTROL

$

$

Not available

32

Toro 103096

Nipple

$

$

Not available

35

Toro 943372

Nipple 5 in. Long

$

$

Currently unavailable

36

Toro 943367

Nipple 2 1/2 in. Long

$

$

Not available

38

Toro 103396

Fitting Exhaust RH

$

$

Not available

39

Toro 103397

Fitting Exhaust LH

$

$

Not available

40

Toro 908020

Bolt
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

41

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

42

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0
