81 (0350003U) - Cub Cadet Lawn Tractor Power Take-Off Drive & Controls Parts Diagram

Lawn Tractor

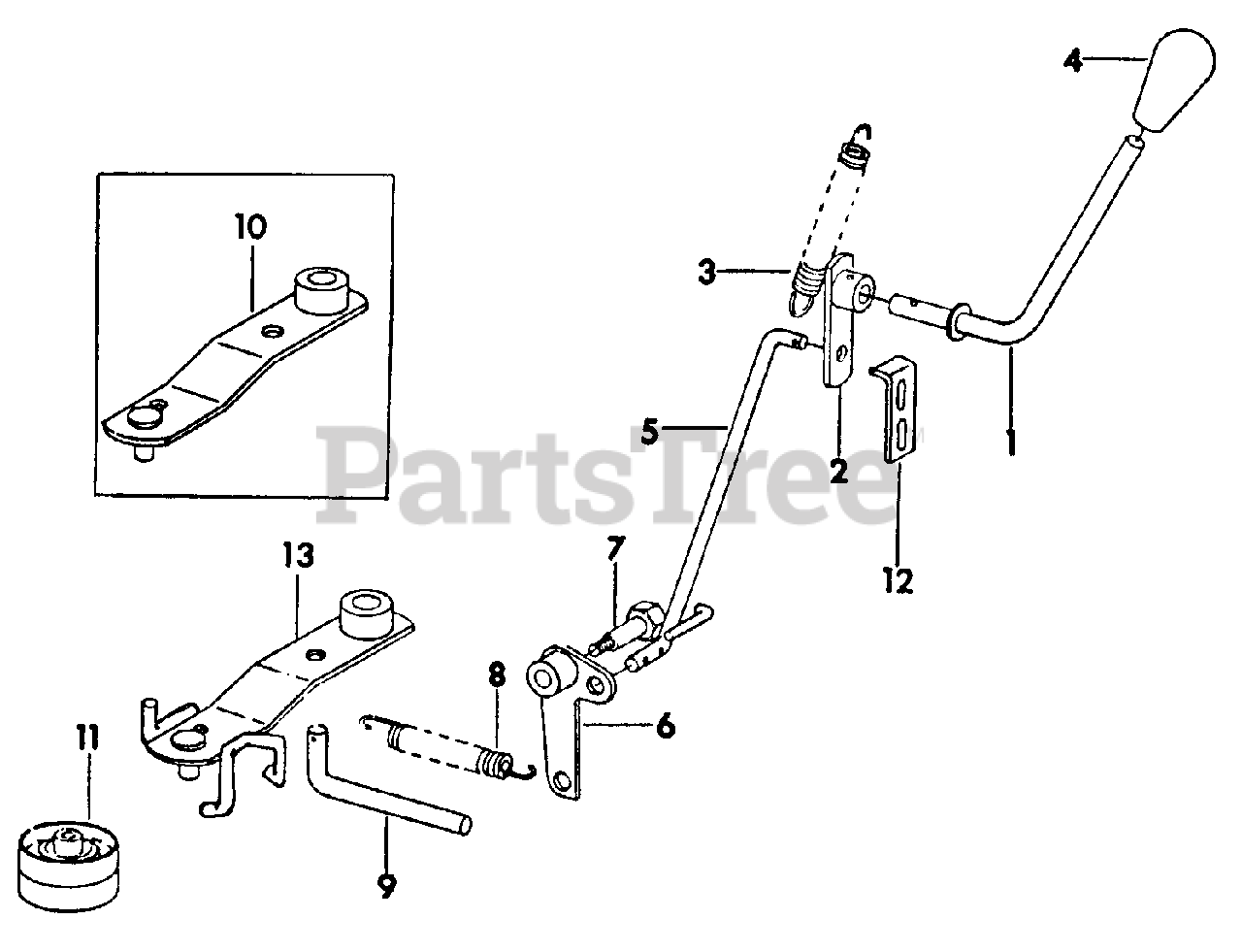

Power Take-Off Drive & Controls Parts Diagram

  • Title
1

Cub Cadet 703-0292

Arm Assy, Shifter

$

$

Not available

2

Cub Cadet 703-0293

Lever Assy, Shifter Arm

$

$

Not available

Pin, 5/32 X 1 Hv Coiled Spring

Note: (Common Hardware, Purchase Locally)

$

$

Not available

3

Cub Cadet 732-3019

Spring, Extension

$

$

Not available

4

Cub Cadet 720-3006

Grip, Shifter Arm

$

$

Not available

5

Cub Cadet 703-0296

Rod Assy, Mower Clutch

$

$

Not available

Pin, 1/8 X 5/8 C-Z Cot

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0226

Washer, 13/32 X 7/8 X 16 C-Z
(Superseded to 936-0226)

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-0297

Actuator Assy, IPTO

$

$

Not available

7

Cub Cadet 738-3017

Bolt, Shoulder IPTO

$

$

Not available

Cub Cadet 712-3009

Nut, 5/16-18 Cdp Hex Lock

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 732-3021

Spring, IPTO

$

$

Not available

9

Cub Cadet 747-3034

Rod, IPTO Return

$

$

Not available

Pin, 1/8 X 5/8 C-Z Cot

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Washer, 15/32 X 3/4 X 16 Ga C-Z

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-3030

Washer, 15/32 X 1-1/2 X 11 Ga C-Z

$

$

Not available

10

Not used in this application

$

$

Not available

11

Cub Cadet 756-3013

Pulley, Mower Shift Idler
(Superseded to 956-3013)

$

$

Not available

Cub Cadet 712-0375

Nut, 3/8-16 Cdp Hex Lock

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 703-0295

Stop, IPTO Control

$

$

Not available

Screw, 1/4-20 X 3/4 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0463

Washer, .281 X .625 X .051 Znd

$4.49

$

In Stock, Qty 12

0

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 19

0

13

Cub Cadet 703-0299

Arm Assy, IPTO Idler

$

$

Not available

Bolt, 3/8-16 X 3/4 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-3032

Washer, 13/32 X 1 X 16 Ga C-Z

$

$

Not available
