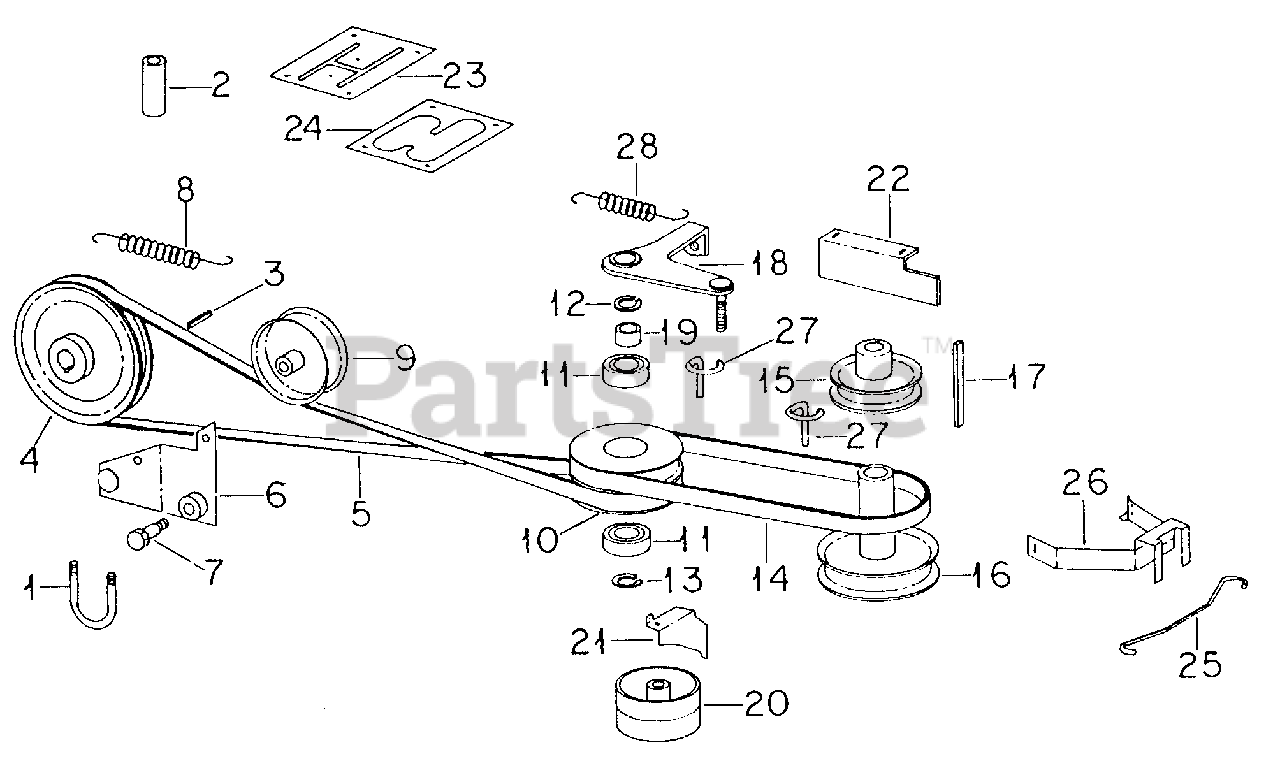

81 (0350003U) - Cub Cadet Lawn Tractor Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Cub Cadet 710-3046

U-Bolt

$

$

Not available

Cub Cadet 712-3009

Nut, 5/16-18 Cad P/T Lock Type 5

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 750-3010

Spacer, Transaxle Mounting

$

$

Not available

Bolt, 3/8 X 3 Type 1

Note: (Common Hardware, Purchase Locally)

$

$

Not available

3

Cub Cadet 714-0868

Key, 3/16 X 3/4 Woodruff 3 No. 9
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

4

Cub Cadet 756-3015

Pulley, Transaxle

$

$

Not available

Cub Cadet 710-0349

Screw, 5/16 X 9/16 Znd Sq Hd C/Pt Set

$

$

Currently unavailable

5

Cub Cadet 754-3009

Belt, Mower & Final Drive
(Superseded to 954-3009)

$

$

Not available

6

Cub Cadet 703-0285

Arm Assy, Belt Tensioning

$

$

Not available

7

Cub Cadet 738-3017

Bolt, IPTO Shoulder

$

$

Not available

Cub Cadet 712-3009

Nut, 5/16 Cad P/T Lock Type 5

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 732-3019

Spring, Extension

Note: (For mower & final drive belt, 5.5 inches long, 48 coils)

$

$

Not available

9

Cub Cadet 756-3009

Pulley, Final Drive Idler
(Superseded to 956-3009)

$69.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0375

Nut, 3/8 Cad P/T Lock Type 1

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet 756-3010

Pulley, Intermediate Drive

$

$

Not available

11

Cub Cadet 741-3006

Bearing, Intermediate Pulley
(Superseded to 941-3006)

$99.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 716-0101

Ring, External Retaining

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 716-3003

Ring, Internal Retaining

$

$

Not available

14

Cub Cadet 754-3010

Belt, Clutching
(Superseded to 954-3010)

$26.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 756-3016

Pulley, Engine Drive

$

$

Not available

16

~NLA

Pulley, Mower Drive, 4-5/8 inch diameter

Note: (Order 756-3012)

$

$

Not available

Cub Cadet 756-3012

Pulley, Mower Drive, 5-1/4 inch diameter

$

$

Not available

Cub Cadet 710-0510

Bolt, 7/16-NF X 3 Type 5

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 736-3030

Washer, .469 X 1.469 X .090

$

$

Not available

Cub Cadet 712-3031

Nut, Special

$

$

Not available

17

~NLA

Key, 1/4 X 2-3/4 Sq Parallel

$

$

Not available

18

Cub Cadet 703-0287

Bushing Assy, Clutch

$

$

Not available

Cub Cadet 736-3028

Washer, .781 X 1.250 X .054

$

$

Not available

19

Cub Cadet 741-3007

Bushing
(Superseded to 741-3007A)

$

$

Not available

20

Cub Cadet 756-3013

Pulley, Mower Shifter Idler
(Superseded to 956-3013)

$

$

Not available

Cub Cadet 712-0375

Nut, 3/8 Cad P/T Lock Type 1

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet 703-0290

Guide, Belt

$

$

Not available

22

Cub Cadet 703-0291

Guide, Belt

$

$

Not available

Cub Cadet 712-3009

Nut, 5/16-18 Cad P/T Lock Type 5

$6.99

$

In Stock, Qty 20+

0

23

Cub Cadet 735-3012

Cover, Gear Shift Hole

$

$

Not available

24

Cub Cadet 703-0366

Plate, Gear Shift Hole

$

$

Not available

Cub Cadet 710-0473

Screw, No. 10 X 1/2 P/Hdcr Tap

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet 747-3037

Support, Belt Guide

$

$

Not available

26

Cub Cadet IH-538741-R1

Guide, Engine Belt

Note: (Used w/pulley 4-5/8 diameter)

$

$

Not available

Cub Cadet 703-0301

Guide, Engine Belt

Note: (Used w/pulley 5-1/4 diameter)

$

$

Not available

27

Cub Cadet 747-3030

Guide, Transaxle Belt

$

$

Not available

Cub Cadet 736-0195

Washer, 11/32 X 7/8 X 16 Ga

$

$

Not available

Cub Cadet 712-0267

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 732-3020

Spring, Extension

Note: (For clutching belt, 4.9 inches long, 30 coils)

$

$

Not available
