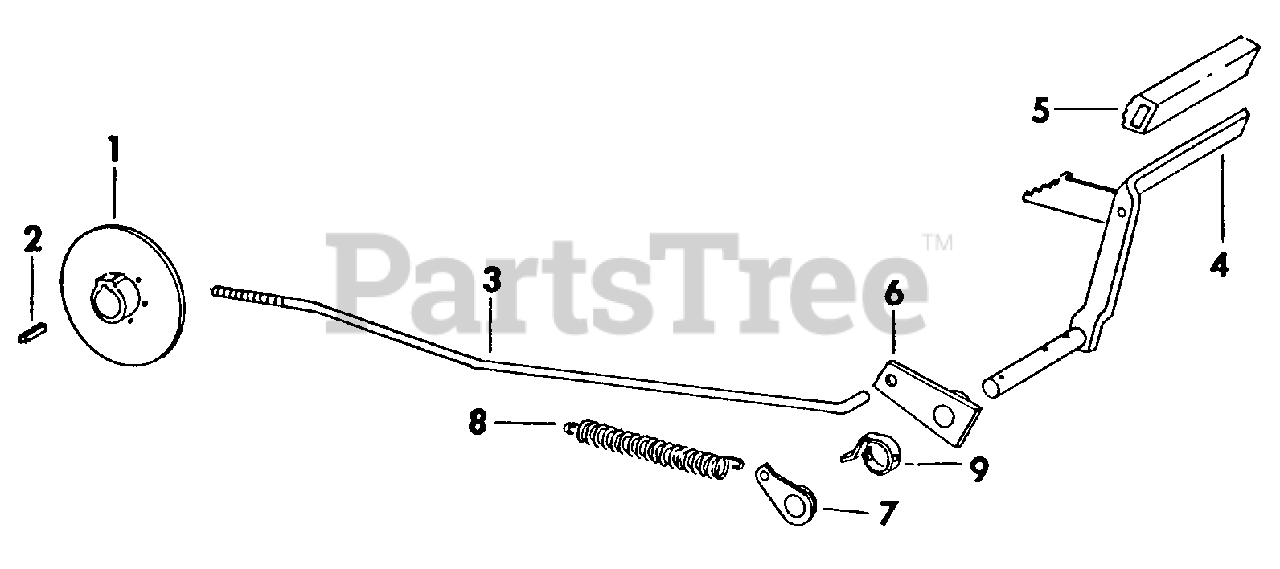

81 (0350003U) - Cub Cadet Lawn Tractor Brakes & Connections Parts Diagram

Lawn Tractor

Brakes & Connections Parts Diagram

  • Title

1

Cub Cadet 761-3001

Disc & Hub Assy

$

$

Not available

Cub Cadet 750-3008

Washer, 9/32 X 3/4 X 11 Ga C-Z

$

$

Currently unavailable

Cub Cadet 712-0375

Nut, 3/8-16 Hex Cad Lock

$4.49

$

In Stock, Qty 6

0

2

Cub Cadet 714-0868

Key, 3/16 X 3/4 Woodruff No. 9
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

3

Cub Cadet 747-3045

Rod, Brake

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 C-Z Cot

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0140

Washer, 13/32 X 1 X 16 Ga C-Z Flat

$7.49

$

In Stock, Qty 7

0

4

Cub Cadet IH-538866-R1

Pedal Assy, Clutch & Brake

$

$

Currently unavailable

Washer, .781 X 1.125 X .054

Note: (Common Hardware, Purchase Locally)

$

$

Not available

5

Cub Cadet 724-3001

Pedal, Foot

$

$

Not available

6

Cub Cadet 703-0278

Lever Assy, Foot Pedal Brake

$

$

Currently unavailable

Cub Cadet 715-0134

Pin, 3/16 X 1-1/2 Hv Coiled Spring
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

7

Cub Cadet 703-0280

Brake Assy

$

$

Currently unavailable

Cub Cadet 715-0134

Pin, 3/16 X 1-1/2 Hv Coiled Spring
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

8

Cub Cadet 732-3019

Spring, Extension

$

$

Not available

9

~NLA

Spring, Clutch

Note: (Serial no. 36820 & below)

$

$

Not available
