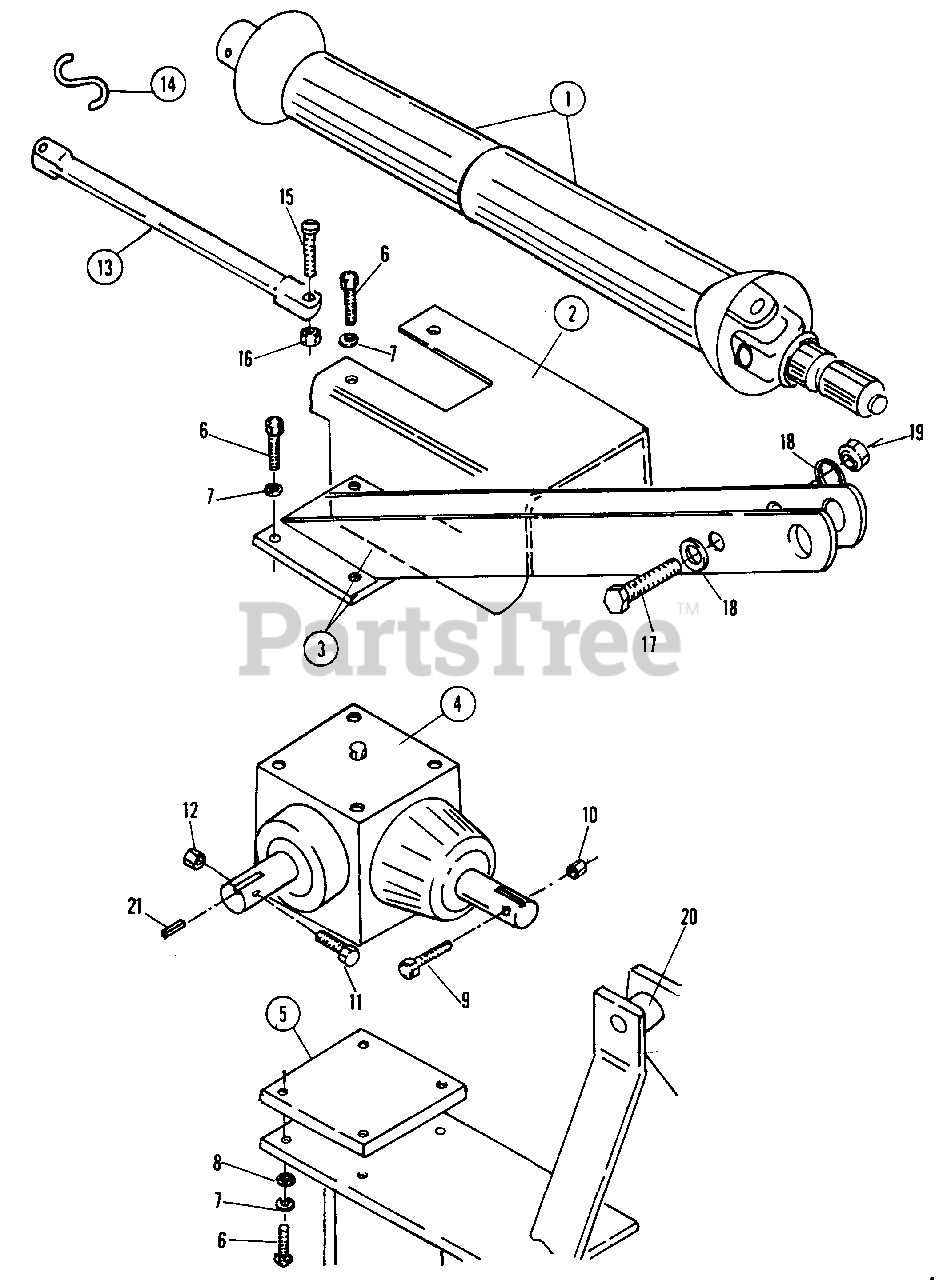

80899 - Snapper 48" Rear PTO Tiller Attachment for MF series PTO Shaft, Shield, Gear Box Parts Diagram

48" Rear PTO Tiller Attachment for MF series

PTO Shaft, Shield, Gear Box Parts Diagram

  • Title

1

Snapper 7013974

SHAFT, TELESCOPING PTO

$

$

Currently unavailable

2

Snapper 7013962

SHIELD, POWER TAKE OFF

$

$

Currently unavailable

3

Snapper 7013965

LINK, UPPER

$

$

Currently unavailable

4

Snapper 7013961

GEAR BOX, 2:1 RATIO

Note: (UNIT - SEE "GEAR BOX" ILLUSTRATION AND PARTS LIST.)

$

$

Currently unavailable

5

Snapper 7013981

SPACER PLATE, GEAR BOX

$

$

Currently unavailable

6

Snapper 7091328

BOLT, 3/8-16 x 1 -1/4 HEX - GRADE 5
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 7090118

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

8

Snapper 7090122

WASHER, 3/8 PLAIN
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7091305

BOLT, 3/8-16 x 2 HEX - GRADE 5
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7091619

LOCKNUT, 3/8-16 HEX
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7027176

BOLT, 1/4-20 x 2-1/2 HEX - GRADE 2
(Superseded to 703821)

Note: Was 90371

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091705

LOCKNUT, 1/4-20 HEX
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7013179

STRAP, RUBBER

$

$

Currently unavailable

14

Snapper 7013180

"S" HOOK

$

$

Currently unavailable

15

Snapper 7090078

BOLT, Carriage 1/4C X1-1/4
(Superseded to 7090947YP)

Note: Was 90764

$5.99

$

In Stock, Qty 5

0

16

Snapper 7091576

NUT, 1/4-20 HEX
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7090779

SCREW, 1/2-13 x 3-1/2 HEX HEAD CAP - GRADE 5
(Superseded to 7090779YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7090705

WASHER, 1/2 PLAIN
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7090706

LOCKNUT, 1/2-13 HEX

$

$

Currently unavailable

20

Snapper 7013999

SPACER, MAST

$

$

Currently unavailable

21

Snapper 7013250

KEY, 1/4 SQ. x 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0
