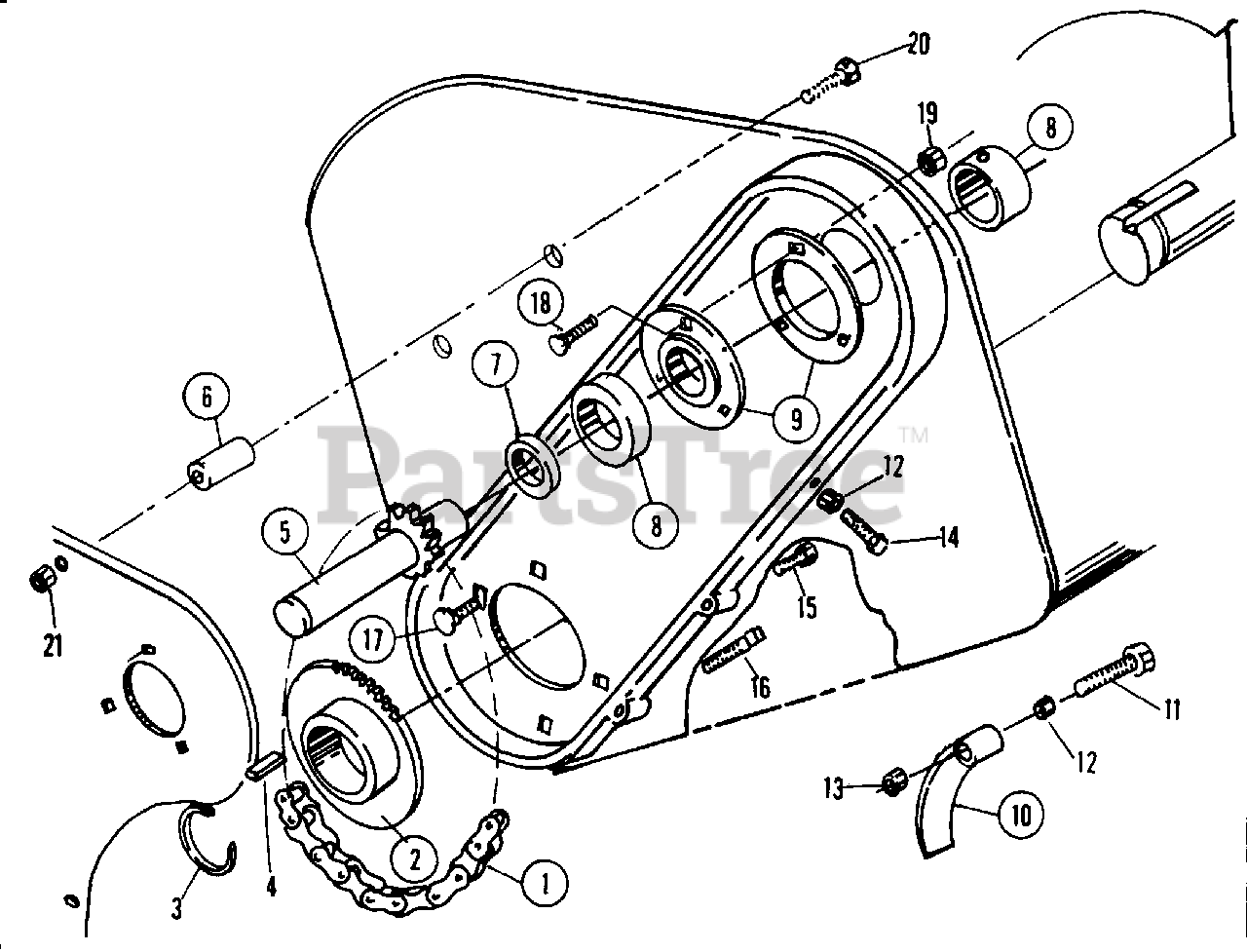

80899 - Snapper 48" Rear PTO Tiller Attachment for MF series Enclosed Drive Parts Diagram

48" Rear PTO Tiller Attachment for MF series

Enclosed Drive Parts Diagram

  • Title

1

Snapper 7013165

CHAIN, ENCLOSED DRIVE

Note: (60A, 46 PITCHES)

$

$

Currently unavailable

2

Snapper 7013166

SPROCKET & HUB, DRIVEN

$

$

Currently unavailable

3

Snapper 7013067

RING, RETAINING 1.387 x .052

$

$

Currently unavailable

4

Snapper 7013255

KEY, Square 3/8 x 1

$

$

Currently unavailable

5

Snapper 7013164

SPROCKET & SHAFT

$

$

Currently unavailable

6

Snapper 7013176

TUBE, SUPPORT

$

$

Currently unavailable

7

Snapper 7013086

SPACER, UPPER SHAFT 1.05" DI x 1.312" OD x .41"

$

$

Currently unavailable

8

Snapper 7013263

BEARING, SEALED (Fafnir RA00NPPB)

Note: (WITH LOCK COLLAR 1")

$

$

Currently unavailable

9

Snapper 7013251

FLANGETTE, 3-HOLE

$

$

Currently unavailable

10

Snapper 7013088

PADDLE, CHAIN TIGHTENER

$

$

Currently unavailable

11

Snapper 7090520

HHCS, 5/16C X2-3/4

$

$

Not available

12

Snapper 7091511

NUT, 5/16-18 HEX
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7090194

LOCKNUT, 5/16-18 HEX

$

$

Currently unavailable

14

Snapper 7090787

SETSCREW, HEX SOCKET HEAD 5/16-18x1.5 (Use 7091590)

$

$

Currently unavailable

15

Snapper 7092000

BOLT, Carriage 3/8-16X2-3/4 GR5 YZ
(Superseded to 7092000SM)

Note: Was 90738

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7013175

BOLT, Carriage Special 3/8-16 x 2-3/4 (Make from 7092000)

$

$

Currently unavailable

17

Snapper 7090768

BOLT, Carriage 1/2-13X1-1/2
(Superseded to 7090768YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7090316

BOLT, Carriage 5/16C X3/4 GR5 ZP
(Superseded to 703225)

Note: Was 90670

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7090194

LOCKNUT, 5/16-18 HEX

$

$

Currently unavailable

20

Snapper 7090652

HHCS, 1/2C X3 GR5 ZP
(Superseded to 7090652YP)

$2.49

$

Usually ships in 2-12 days

0

21

Snapper 7090706

LOCKNUT, 1/2-13 HEX

$

$

Currently unavailable
