808 GT (1690221) - AGCO 36" Garden Tractor, 8hp Transmission Group (6008 & 6011) Parts Diagram

36" Garden Tractor, 8hp

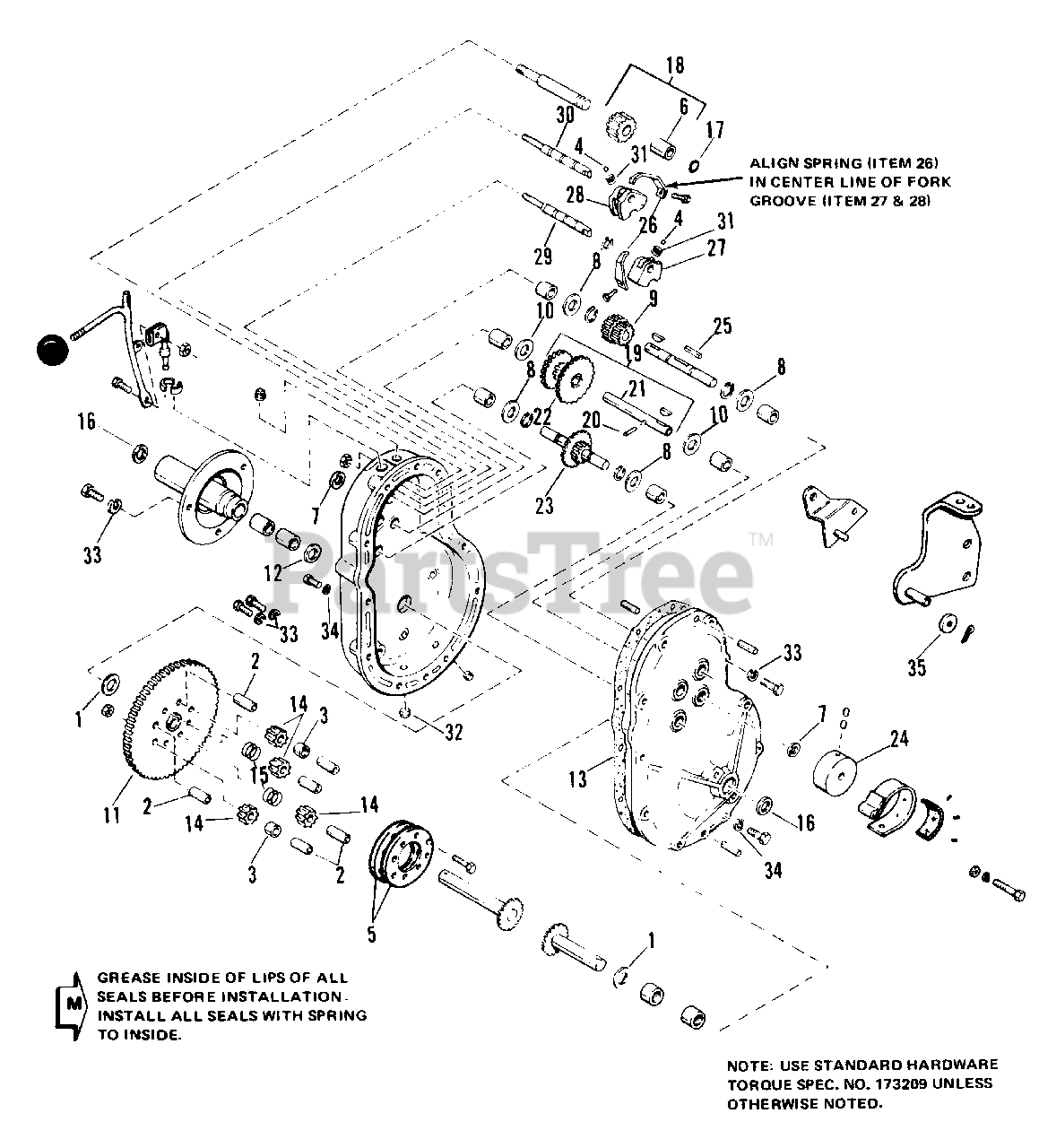

Transmission Group (6008 & 6011) Parts Diagram

  • Title

1

Simplicity 2105083

WASHER (6008)(03566)

$

$

Not available

1

Simplicity 2105083

WASHER (6011)

$

$

Not available

2

Simplicity 2121083SM

SPACER, Pinion Diff.

$13.99

$

In Stock, only 1 left!

0

3

Simplicity 2121084SM

SPACER, Diff.

$12.99

$

Usually ships in 2-12 days

0

4

Simplicity 2805359

BALL, Shiftlock

$

$

Not available

5

Simplicity 2171517SM

PLATE, Diff.

$9.49

$

Usually ships in 2-12 days

0

6

Simplicity 2156082

BEARING, Roller

$

$

Not available

7

Simplicity 2156084SM

RING,"O"

$16.99

$

Usually ships in 2-12 days

0

8

Simplicity 2156085

WASHER

$

$

Not available

9

Simplicity 2156087SM

PINION ASSY., Hi & Lo

$108.99

$

Usually ships in 2-12 days

0

10

Simplicity 2156089

WASHER

$

$

Not available

11

Simplicity 1663715SM

GEAR ASSY., Drive (6008)(03566)

$

$

Not available

11

Simplicity 1663715SM

GEAR ASSY., Drive (6011)

$

$

Not available

12

Simplicity 2156099SM

SEAL, Oil

$3.49

$

In Stock, only 1 left!

0

13

Simplicity 2156103SM

GASKET, Case

$

$

Not available

14

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

15

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 7

0

16

Simplicity 2118118SM

SEAL, Oil (6008)(03566)

$10.99

$

In Stock, Qty 20+

0

16

Simplicity 2118118SM

SEAL, Oil (6011)

$10.99

$

In Stock, Qty 20+

0

17

Simplicity 2165006SM

RING, O

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1650625SM

PINION, Reverse, (Includes Ref. No. 6)

$63.99

$

Usually ships in 2-12 days

0

19

Simplicity 2165009SM

SHAFT & GEAR ASSY

$329.99

$

Usually ships in 2-12 days

0

20

Simplicity 2156292

DOWEL, Pin

$

$

Not available

21

SHAFT, Brake

$

$

Not available

22

CLUSTER GEAR ASSY

$

$

Not available

23

Simplicity 2165013SM

GEAR & SHAFT ASSY

$159.99

$

Usually ships in 2-12 days

0

24

Simplicity 2165067SM

DRUM, Brake

$27.99

$

Usually ships in 2-12 days

0

25

Simplicity 2170453SM

KEY

$15.99

$

Usually ships in 2-12 days

0

26

Simplicity 1657656SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

27

Simplicity 1713-63

FORK, Shift Rev.

$

$

Not available

28

Simplicity 1713-64

FORK, Shift 1 & 2

$

$

Not available

29

Simplicity 1713-65

SHAFT, Shift, Rev & Lo

$

$

Not available

30

Simplicity 2171372SM

SHAFT, Shift, Hi & Lo

$96.99

$

Usually ships in 2-12 days

0

31

Simplicity 2171456SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

32

Simplicity 2801653

PIPE, Plug, Sq. Hd., 3/8

$

$

Not available

33

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

34

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available
