808 (990998) - Simplicity Wonderboy 30" Rear-Engine Riding Mower, 8hp Front & Rear Wheels Group Parts Diagram

Wonderboy 30" Rear-Engine Riding Mower, 8hp

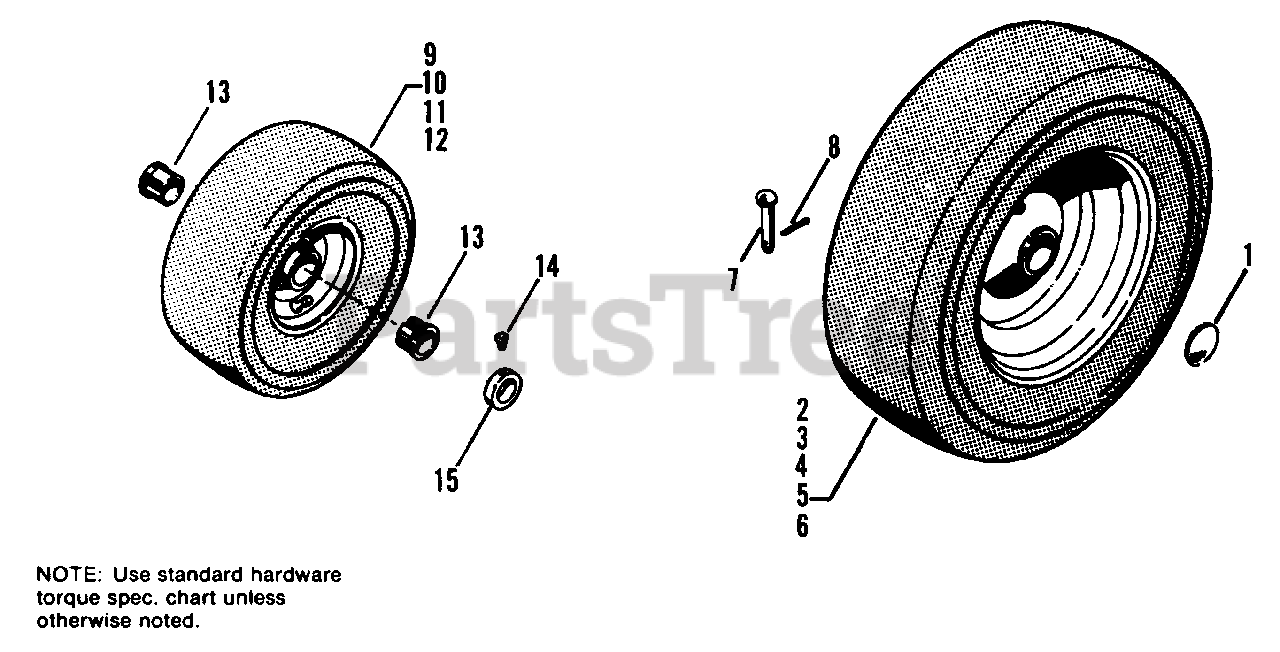

Front & Rear Wheels Group Parts Diagram

  • Title
1

Simplicity 158433

BUTTON, Plug

$

$

Not available

2

Simplicity 1608919

WHEEL & TIRE ASSY., Rear

$

$

Not available

3

Simplicity 1608917

WHEEL ASSY.

$

$

Not available

4

Simplicity 2157490

TIRE, Tubeless

$

$

Not available

$35.99

$

Usually ships in 2-12 days

0

6

Simplicity 2171270

STEM, Valve, Cap

$

$

Not available

7

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

8

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

9

Simplicity 1608379

WHEEL & TIRE ASSY., Front

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

13

Simplicity 2156316SM

BEARING, Relief

$11.99

$

In Stock, only 4 left!

0

14

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

15

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available
