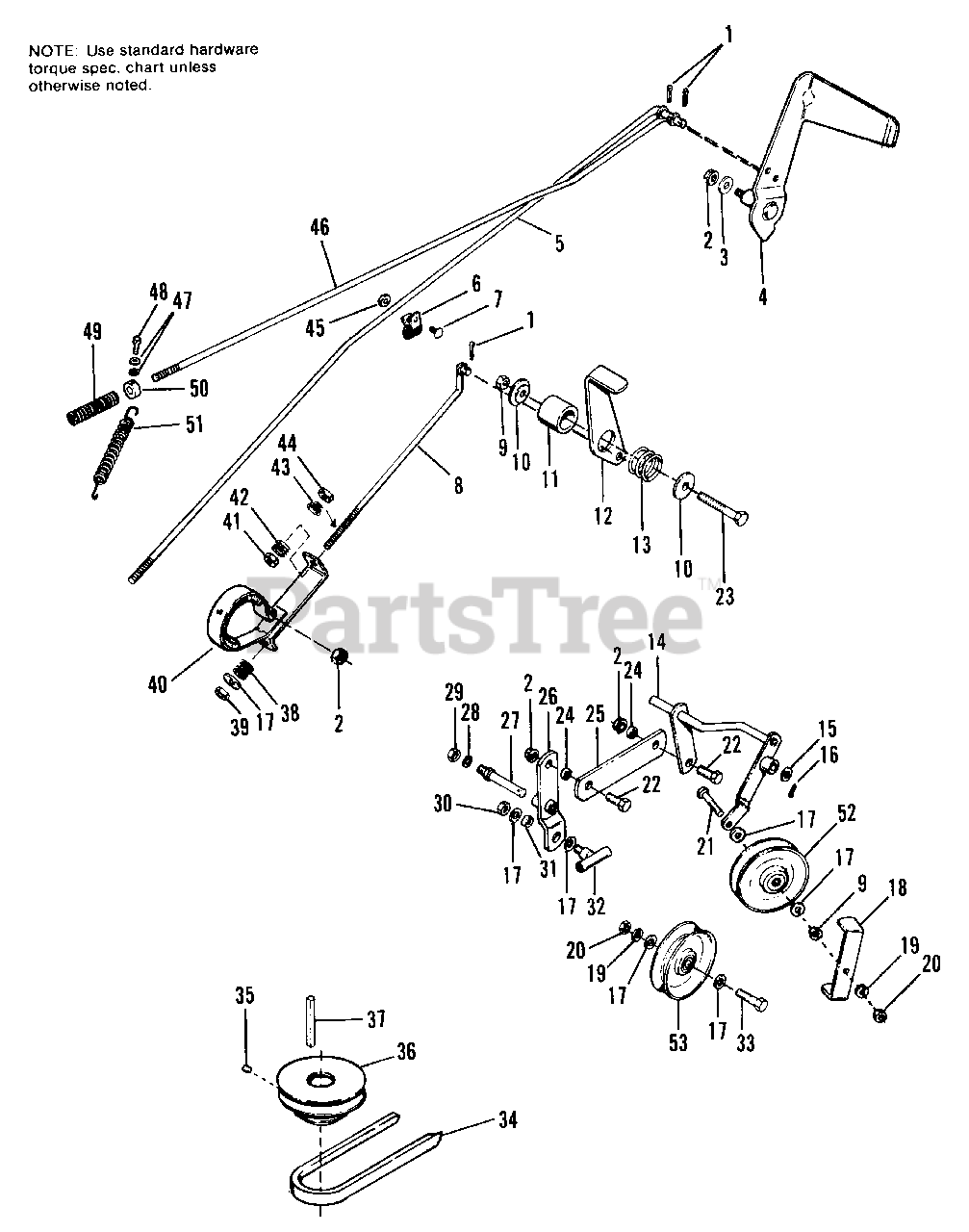

808 (1690012) - Simplicity Wonderboy 30" Rear-Engine Riding Mower, 8hp Belts & Pulleys Group Parts Diagram

Wonderboy 30" Rear-Engine Riding Mower, 8hp

Belts & Pulleys Group Parts Diagram

  • Title

1

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

2

Simplicity 2830645

LOCKNUT, Flange, 3/8-16

$

$

Not available

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1651126

PEDAL ASSY., Foot

$

$

Not available

5

Simplicity 176669

ROD, Brake

$

$

Not available

6

Simplicity 122186

CLAMP

$

$

Not available

7

Simplicity 923700

BOLT, Rd. Hd., 5/16-18 x 1/2

$

$

Not available

8

Simplicity 176864

ROD, Parking Brake

$

$

Not available

9

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 1650434

WASHER, Special

$

$

Not available

11

Simplicity 176865

HUB

$

$

Not available

12

Simplicity 176866

LEVER

$

$

Not available

13

Simplicity 153093

SPRING

$

$

Not available

14

Simplicity 1650319

ARM ASSY., Idler

$

$

Not available

15

Simplicity 2153072

WASHER

$

$

Not available

16

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

17

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

18

Simplicity 1651545

GUIDE, Belt

$

$

Not available

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

20

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

21

Simplicity 1651074

CAPSCREW, Hex

$

$

Not available

22

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

23

Simplicity 2821973

CAPSCREW, Hex Hd., 3/8-16 x 2-3/4

$

$

Not available

24

Simplicity 2153081

SPACER

$

$

Not available

25

Simplicity 1650559

ARM, Pivot

$

$

Not available

26

Simplicity 1650561

PIVOT ASSY., Arm

$

$

Not available

27

Simplicity 1657368

STUD

$

$

Not available

28

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

29

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

30

Simplicity 2828698

LOCKNUT, Jam, 5/16-18

$

$

Not available

31

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 2164094SM

GUIDE ASSY., Rod

$45.99

$

Usually ships in 2-12 days

0

33

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

34

Simplicity 1719746SM

BELT, V
(Superseded to 1726471SM)

$45.99

$

In Stock, only 1 left!

0

35

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

36

Simplicity 1650229

PULLEY, Engine

$

$

Not available

37

Simplicity 2159129

KEY

$

$

Not available

38

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 6

0

39

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

40

Simplicity 176638

BAND ASSY., Brake

$

$

Not available

41

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

43

Simplicity 2153010SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

44

Simplicity 2824433

LOCKNUT, Elastic, 5/16-18

$

$

Not available

45

Simplicity 2829001

LOCKNUT, Flange, 5/16-18

$

$

Not available

46

Simplicity 176667

ROD, Clutch

$

$

Not available

47

Simplicity 2817377

WASHER, Flat, 1/4

$

$

Not available

48

Simplicity 930542

SETSCREW, 1/4-20 x 3/4

$

$

Not available

49

Simplicity 2157041SM

SPRING

$15.99

$

Usually ships in 2-12 days

0

50

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

51

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

52

Simplicity 2101096SM

PULLEY, Idler

$59.99

$

In Stock, only 3 left!

0

53

Simplicity 2171247SM

PULLEY, Idler

$51.99

$

In Stock, Qty 20+

0
