8073 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HANDLE GROUP MODEL: 8073 Parts Diagram

Walk-Behind Mower

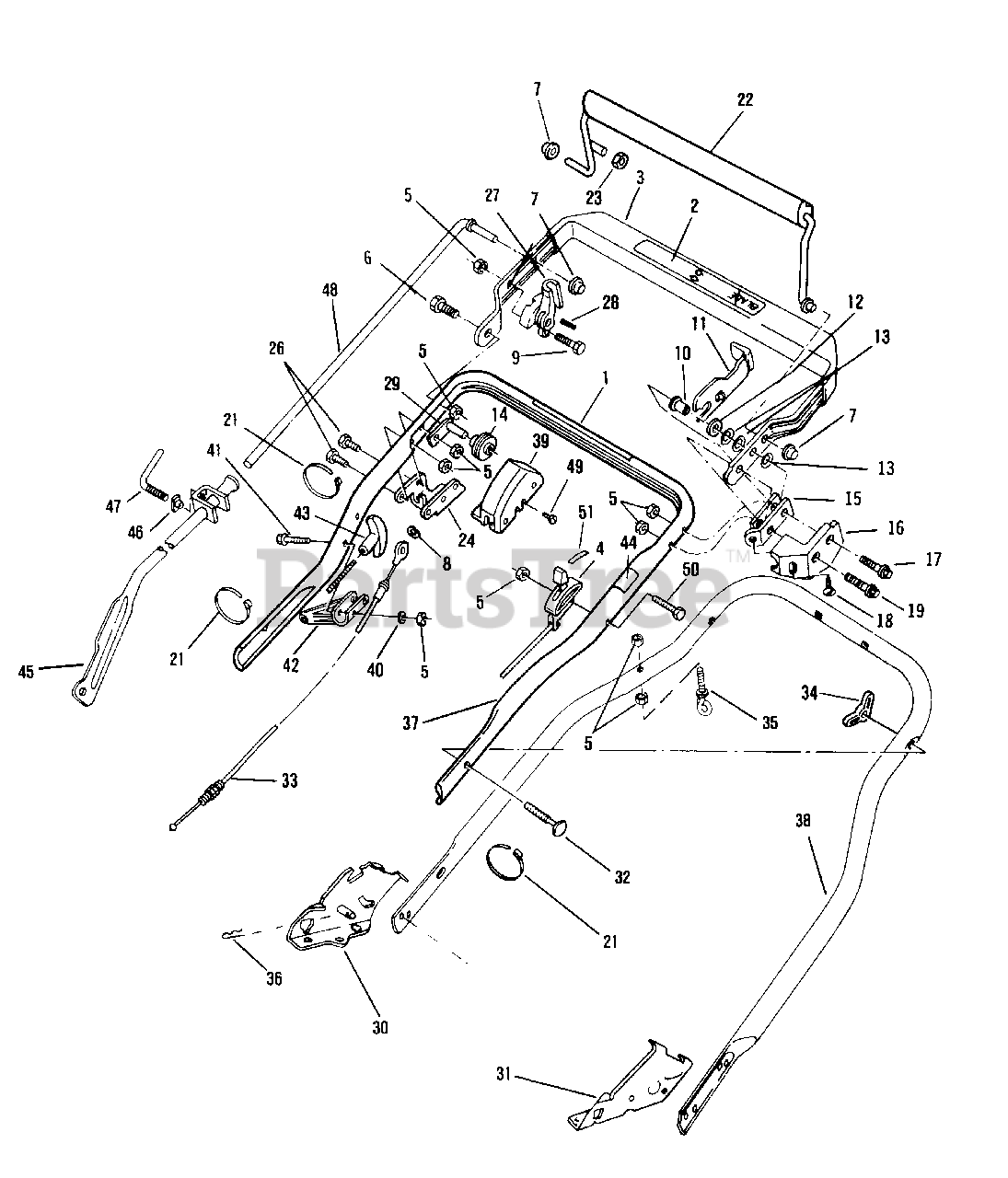

HANDLE GROUP MODEL: 8073 Parts Diagram

  • Title

1

Lawn-Boy 612579

Decal-Starting Instructions

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 612645

Decal-Engine/Blade Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 683511

Top Handle and Doubler Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 684042

Control Assembly-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$147.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 611202

Bolt-Shoulder-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

8

Lawn-Boy 611224

Retaining Ring-Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611222

Hex-Washer Head Shoulder Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611203

Spacer-Flanged

Note: Important Note: Replacement parts may not always be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 612657

Lever-Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 306359

Washer-Plain

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 303254

Washer-Spring
(Superseded to 121-4605)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 611221

Down Stop

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611218

Guard-Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611220

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 606537

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

19

Lawn-Boy 611217

Bolt-Shoulder-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

22

Lawn-Boy 683728

Control Lever and Nut Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 611196

Bracket-Clutch Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 609891

Screw-Clutch Cable Bracket
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 683430

Cam and Roll Pin Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 612637

Cam

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 309301

Roll Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 611194

Pivot-Bracket-Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 682736

Handle Bracket-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$93.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 682737

Handle Bracket-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 611184

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 682685

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 607544

Knob

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

35

Lawn-Boy 611571

Eyebolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 605803

Hair Pin-Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 612590

Handle Section-Center

Note: Important Note: Replacement parts may not always be available in matching colors.

$172.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 612787

Handle Section-Bottom

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 612319

Cover
(Superseded to 612638)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 602945

Washer-Plain

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 611233

Screw-Truss Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 612430

Handle-Starter

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 611236

Decal-Drive Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 683812

Control Lever Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$364.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 602992

Nut-Control Lever Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 603699

Lever-Rod Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611229

Rod-Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 612585

Screw-Hex Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 612065

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 612568

Decal-Throttle Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
