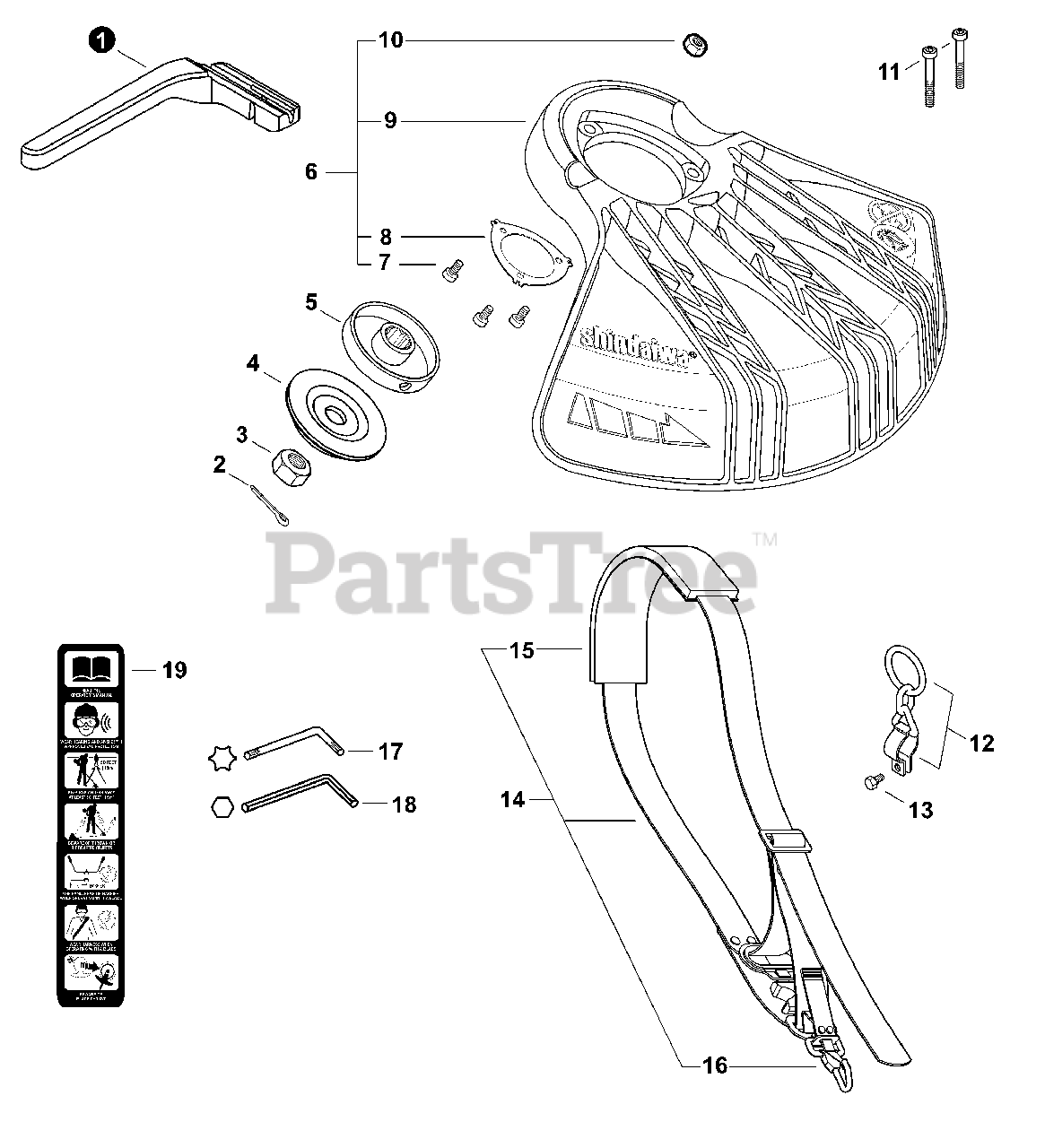

80575A - Shindaiwa Blade Conversion Kit Trimmer to Brushcutter Conversion Kit Parts Diagram

Blade Conversion Kit

Trimmer to Brushcutter Conversion Kit Parts Diagram

  • Title

1

Echo C405000420

BAR, BARRIER

$12.99

$

Usually ships in 2-4 days

0

2

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

3

Echo 90051300010

NUT 10×1.25 lH

$1.49

$

In Stock, Qty 20+

0

4

Echo C535000150

PLATE, LOWER ADAPTOR

$9.49

$

In Stock, Qty 7

0

5

Echo 61031307132

PLATE, UPPER ADAPTOR

$17.99

$

In Stock, Qty 5

0

6

Echo P021050520

SHIELD ASY

Note: Includes Items 7-10

$23.99

$

Usually ships in 2-4 days

0

7

Echo V805000170

BOLT, TORX 5

$0.99

$

In Stock, Qty 20+

0

8

Echo C552000240

PLATE, SHIELD

$2.49

$

In Stock, Qty 13

0

9

Echo C550000200

SHIELD, PLASTIC DEBRIS Ø49.5 mm

$14.99

$

In Stock, Qty 5

0

10

Echo 90056250005

LOCK NUT 5

$0.99

$

In Stock, Qty 20+

0

11

Echo V805000060

BOLT 5×35

$0.99

$

In Stock, Qty 13

0

12

Echo C646000060

HANGER ASSY, HARNESS
(Superseded to P021046740)

$3.49

$

In Stock, Qty 20+

0

13

Echo V805000140

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

14

Echo C062000390

HARNESS ASSY, SHOULDER

Note: Includes Items 15-16

$19.99

$

In Stock, only 1 left!

0

15

Echo C644000080

PAD, SHOULDER

$3.49

$

Usually ships in 2-4 days

0

16

Echo C649000200

HOOK,E24 SNAP

$5.49

$

Usually ships in 2-4 days

0

17

Echo X605000060

WRENCH, TORX T27 80×30

$2.49

$

In Stock, Qty 17

0

18

Echo X605000100

WRENCH, ALLEN 4mm

$1.99

$

In Stock, Qty 7

0

19

Echo X505005890

LABEL, CAUTION (BLADE CAPABLE)

$5.49

$

In Stock, only 1 left!

0
