805 (136-192-100) - Cub Cadet Lawn Tractor PTO Clutch Parts Diagram

Lawn Tractor

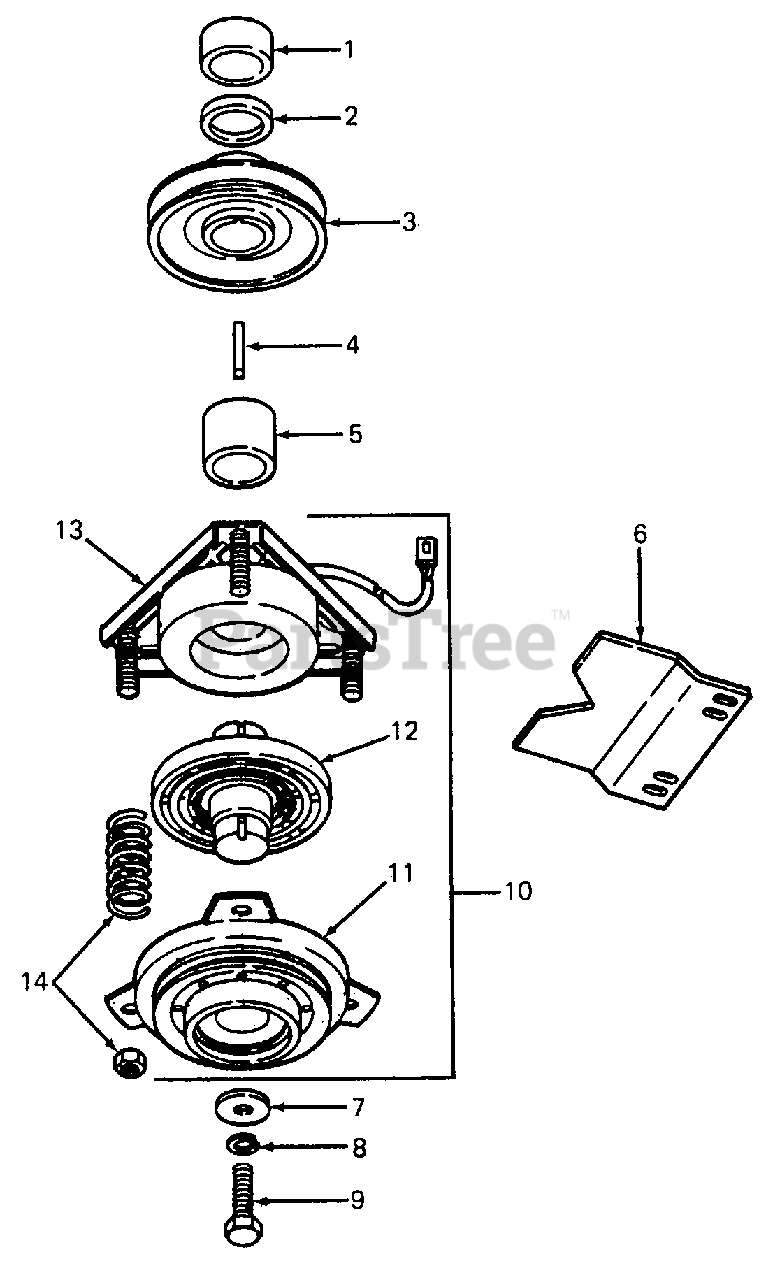

PTO Clutch Parts Diagram

  • Title

1

Cub Cadet 711-3179

Spacer, Engine Pulley
(Superseded to 911-3179)

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 750-0381

Spacer, 1.0 X 1.32 X .40

$

$

Currently unavailable

3

Cub Cadet 756-3033

Pulley, Engine (A sec. X 3.5 OD)

Note: 04

$

$

Not available

4

Cub Cadet 714-0119

Key, 1/4 X .75 Sq.

$8.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-3183

Bushing, 1.2 X 1.5 X .620

$

$

Not available

6

Cub Cadet 703-1146

Bracket, Torque
(Superseded to 703-1146-0637)

Variations

Cub Cadet 703-1146-0637

BRACKET-TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 736-0105

Washer, Belleville .400 X .88 X .06

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0514

Bolt, 3/8-16 X 1.0 GR 5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-3082

Washer, .445 X 1.5 X .172
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

8

Cub Cadet 736-0171

Washer, Lock 7/16

$4.49

$

In Stock, Qty 5

0

9

Cub Cadet 710-3157

Bolt, 7/16-20 X 3.25 GR 5
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

10

Cub Cadet 717-3036

Clutch Assy, PTO
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 759-3229

Armature
(Superseded to 959-3229)

$

$

Not available

12

Cub Cadet 759-3231

Rotor

$

$

Not available

13

Cub Cadet 759-3230

Field
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 759-3228

Mounting Accessories Hex Nuts Springs

$

$

Not available
