805 (136-192-100) - Cub Cadet Lawn Tractor Hood & Grille Parts Diagram

Lawn Tractor

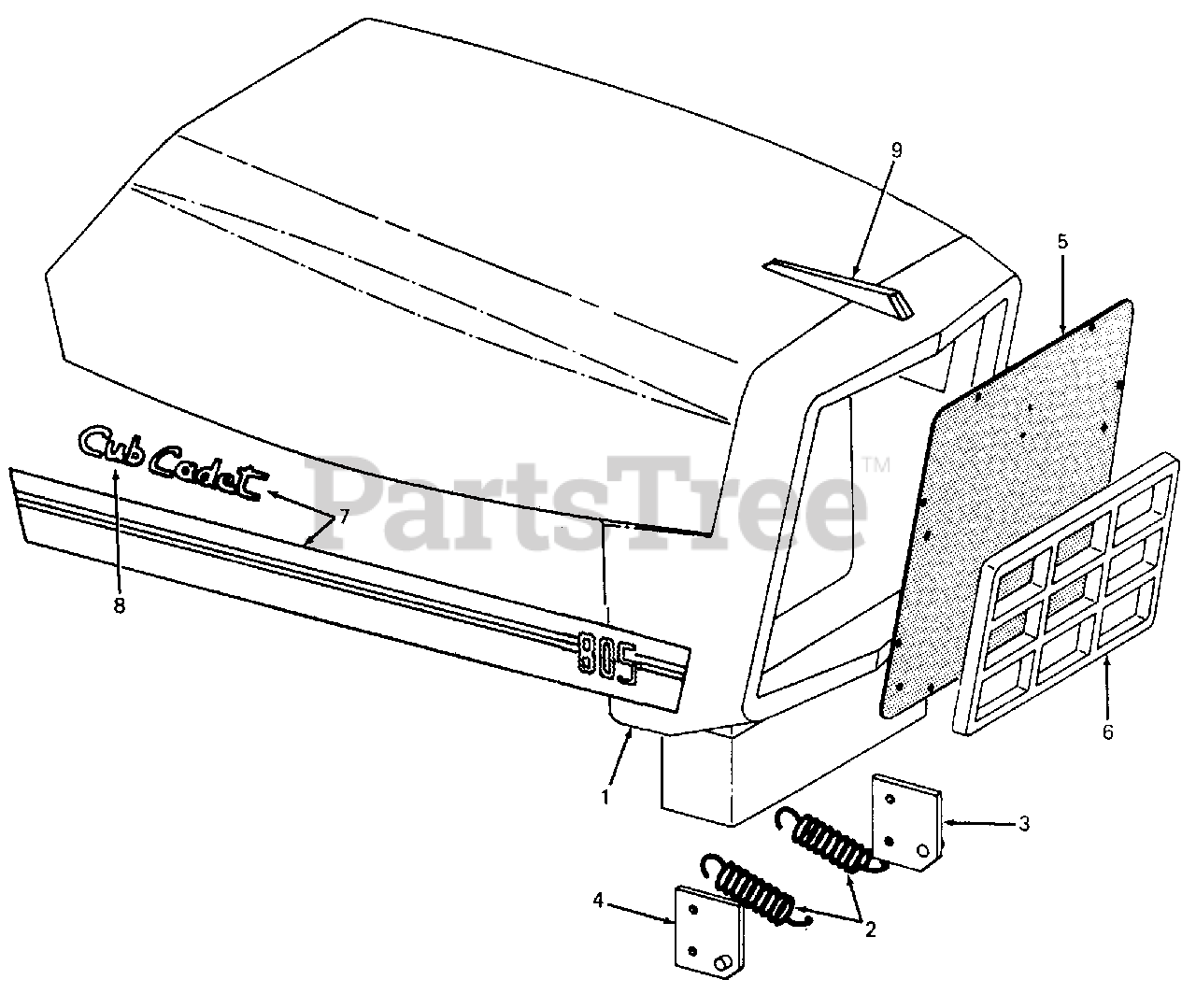

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet 759-3234

Hood & Grille Assy

Note: (Includes Ref No. 9)

$

$

Not available

2

Cub Cadet 732-3048

Spring, Extension

$

$

Not available

3

Cub Cadet 703-1215

Plate, Hood LH

$

$

Not available

Cub Cadet 710-3008

Bolt, 3/8 X 3/4 GR 5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 703-1216

Plate, Hood RH

$

$

Not available

Cub Cadet 710-3008

Bolt, 3/8 X 3/4 GR 5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 703-1158

Screen, Grille

$

$

Not available

Cub Cadet 710-0227

Screw, No. 8 X 1/2 Hex- Washer-Hd Tap

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-3051

Insert, Grille

$

$

Currently unavailable

Cub Cadet 726-3040

Nut, No. 10 C-Z Stamped

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 759-3171

Graphic, Hood Decal Set (Model 805) (Includes Ref No. 8)

$

$

Not available

8

Cub Cadet 731-3053

Graphic, Cub Cadet Script w/Adhesive
(Superseded to 931-3053A)

$24.99

$

In Stock, only 2 left!

0

9

Cub Cadet 731-3059

Ornament, Hood

Note: (Included w/Ref No. 1)

$

$

Currently unavailable
