805 (136-192-100) - Cub Cadet Lawn Tractor Engine Electrical Parts Diagram

Lawn Tractor

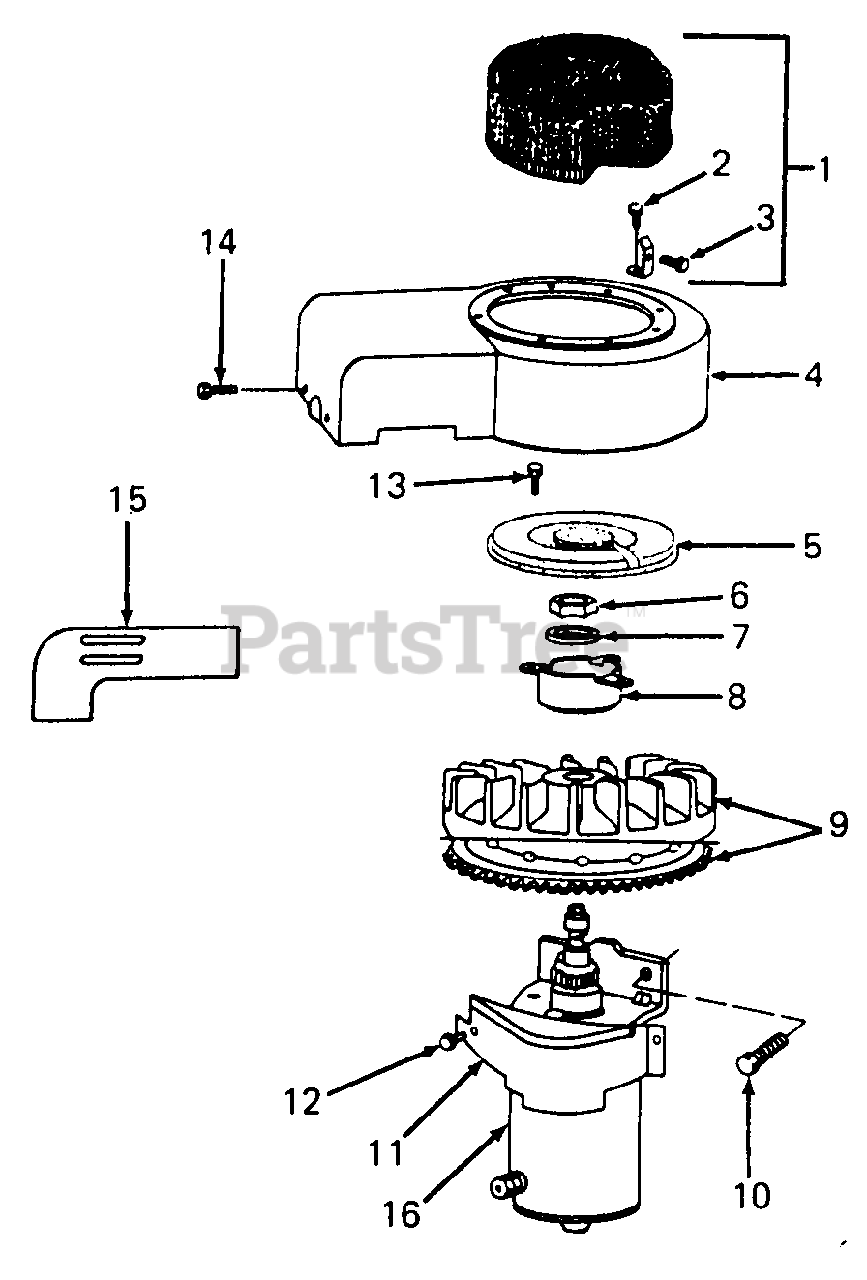

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet BS-398857

Guard, Debris

$80.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-223379

Bracket, Guard

$

$

Currently unavailable

2

Cub Cadet BS-93067

Screw

$

$

Currently unavailable

3

Cub Cadet BS-94018

Screw
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

4

Cub Cadet BS-391379

Housing, Blower

$

$

Not available

5

Cub Cadet BS-222562

Screen, Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-92284

Nut, Flywheel
(Superseded to 712-3056)

$4.99

$

In Stock, Qty 13

0

7

Cub Cadet BS-220865

Washer, Spring

$

$

Currently unavailable

8

Cub Cadet BS-222561

Cup, Screen Mounting

$

$

Not available

9

Cub Cadet BS-391983

Flywheel & Ring Gear

$

$

Not available

10

Cub Cadet BS-93523

Screw Sem

$

$

Not available

11

Cub Cadet BS-395405

Cover, Starter

$

$

Not available

12

Cub Cadet BS-93984

Screw Sem

$

$

Currently unavailable

13

Cub Cadet BS-93805

Screw Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-93158

Screw, Blower Housing Mtg Sem

$

$

Not available

15

Cub Cadet BS-221760

Guide, Air

$

$

Not available

16

Starter Motor

Note: (See Starter Motor in this Group)

$

$

Not available
