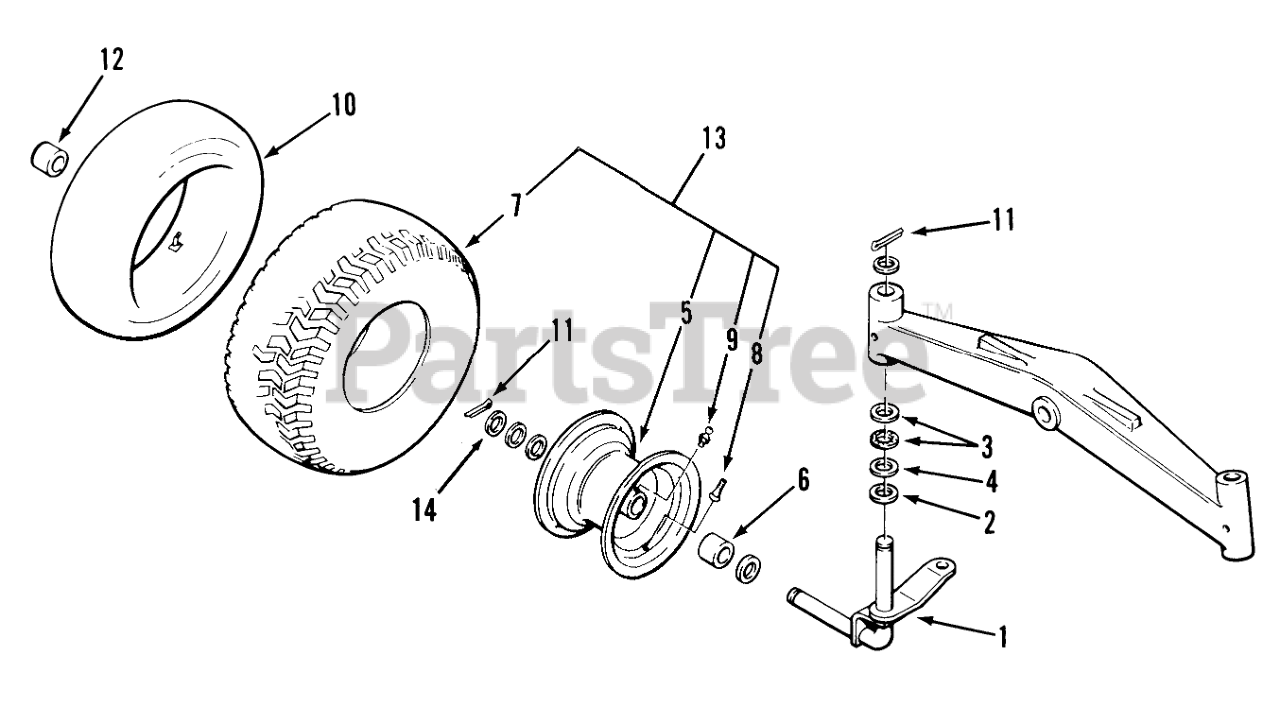

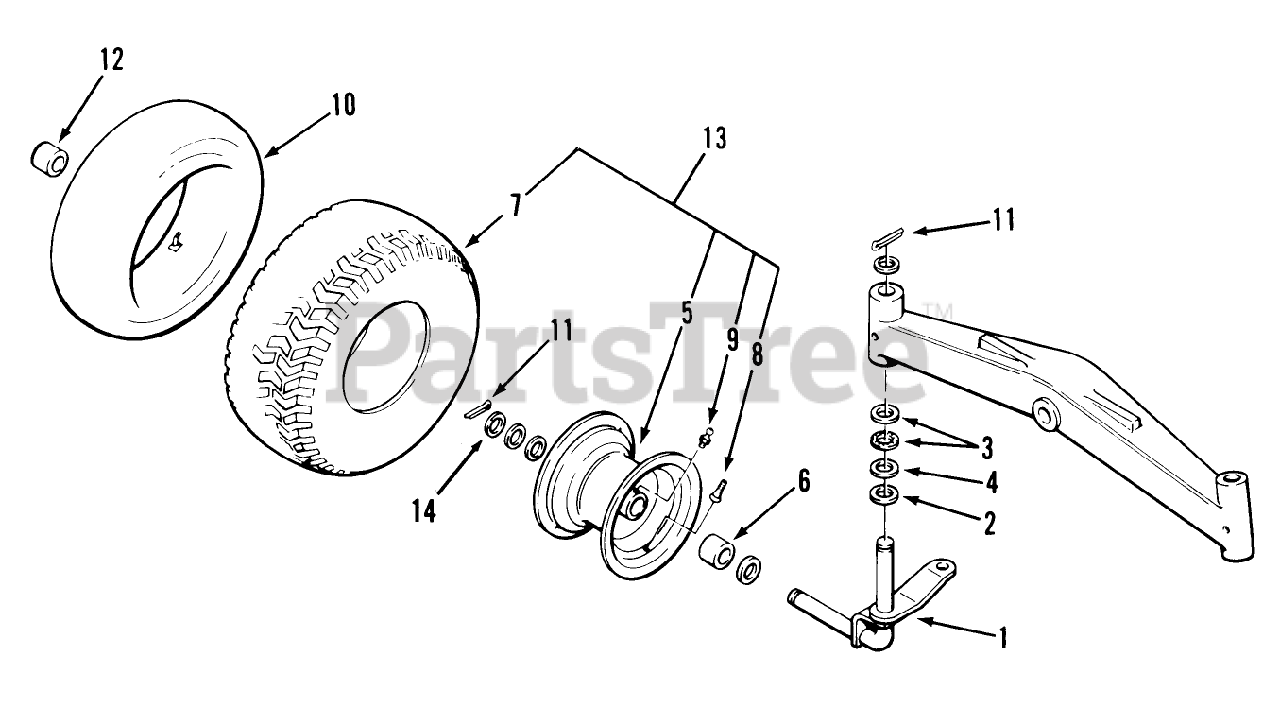

80492 - Toro Heavy-Duty Wheels/Spindles Kit (1987) PARTS LIST FOR HEAVY DUTY FRONT WHEELS AND SPINDLES KIT FACTORY ORDER NO. 80492 Parts Diagram

Heavy-Duty Wheels/Spindles Kit

PARTS LIST FOR HEAVY DUTY FRONT WHEELS AND SPINDLES KIT FACTORY ORDER NO. 80492 Parts Diagram

  • Title
1

Toro 111042

Spindle R.H.
(Superseded to 115424)

$

$

Not available

Toro 111043

Spindle L.H.

$

$

Not available

2

Toro 7956

Race Thrust
(Superseded to 702982)

$9.99

$

In Stock, Qty 5

0

3

Toro 107051

WASHER-SLIP

$

$

Not available

4

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

5

Toro 112172

WHEEL

$

$

Not available

6

Toro 107124

BEARING-RADIAL FLNGE

$

$

Not available

7

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

8

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

9

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

10

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

$

$

Not available

11

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

12

Toro 111039

CAP-HUB

$

$

Not available

13

Toro 112171

Wheel and Tire Assembly

$

$

Not available

14

Toro 113440

WASHER-WHEEL

$10.99

$

Usually ships in 3-6 days

0
