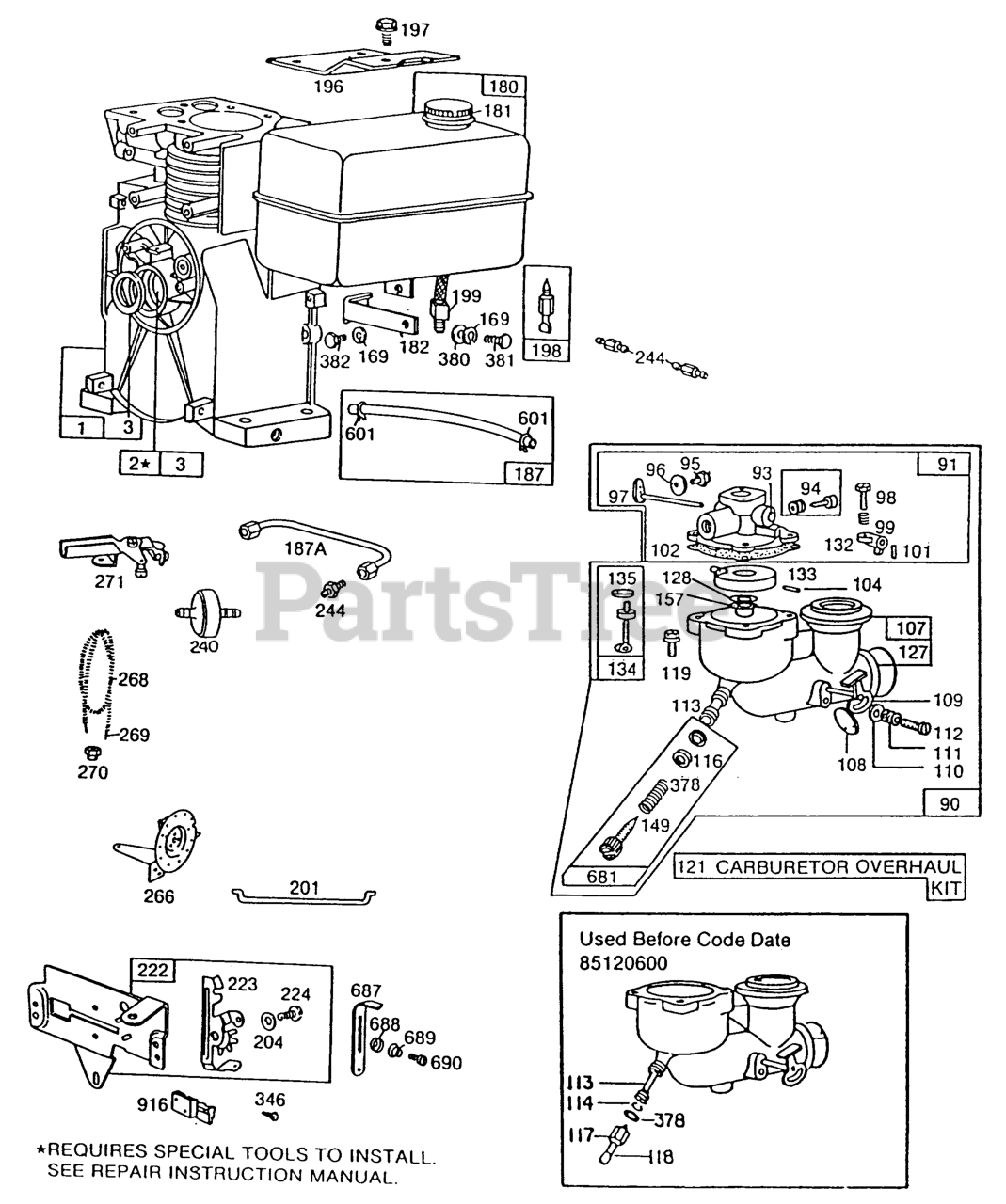

80412-8633-01 - Briggs & Stratton Horizontal Engine Carburetors, Fuel Tank Assy. Parts Diagram

Horizontal Engine

Carburetors, Fuel Tank Assy. Parts Diagram

  • Title

1

Briggs & Stratton 395879

Cylinder Assembly

$199.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

Note: Requires Special Tools For Installation.

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 397144

$5.49

$

In Stock, Qty 17

0

90

Briggs & Stratton 395395

Carburetor (Standard) (Manual Choke)

$151.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 395562

Housing Assembly-Throttle
(Superseded to 393978)

$63.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23230

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 222972

Valve-Throttle

$4.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 393827

Shaft-Throttle

$33.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27917

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$6.49

$

In Stock, Qty 10

0

104

Briggs & Stratton 23114

Pin-Float Hinge

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$4.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 295617

Body Assy.-Lower

Note: Used Before Code Date 85120600

$39.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 397870

Body Assy.-Lower

Note: Used After Code Date 85120500

$

$

Not available

108

Briggs & Stratton 220897

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 294874

Choke Shaft Kit (Manual Choke)

$

$

Not available

110

Briggs & Stratton 220899

Washer-Choke Lever

$3.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26229

Spring-Choke Lever

$4.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 23270

Screw-Choke Lever

$4.49

$

Usually ships in 2-12 days

0

113

Briggs & Stratton 231359

Nozzle-Carburetor

Note: Used After Code Date 85120500

$23.99

$

Usually ships in 2-12 days

0

113

Briggs & Stratton 23222

Nozzle-Carburetor
(Superseded to 5023222)

Note: Used Before Code Date 85120600

$

$

Not available

114

Briggs & Stratton 68887

Packing-Valve

Note: Used Before Code Date 85120600

$

$

Not available

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

Note: Used After Code Date 85120500

$5.49

$

In Stock, only 1 left!

0

117

Briggs & Stratton 23227

Nut-Packing

Note: Used Before Code Date 85120600

$

$

Not available

118

Briggs & Stratton 230005

Valve-Needle

Note: Used Before Code Date 85120600

$5.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 93347

Screw-Throttle Hsg., And Fuel Pump Mtg.

$2.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 291691

Carburetor-Kit

Note: Used Before Code Date 85120600

$56.99

$

In Stock, Qty 7

0

121

Briggs & Stratton 398992

Carburetor-Kit

Note: Used After Code Date 85120500

$38.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 220352

Plug-Welch
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

128

Briggs & Stratton 210811

Venturi-Carburetor

$6.49

$

Usually ships in 2-12 days

0

132

Briggs & Stratton 212904

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 293477

Float-Carburetor

$29.99

$

In Stock, only 4 left!

0

134

Briggs & Stratton 293478

Valve-Needle

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$29.99

$

In Stock, only 2 left!

0

135

Briggs & Stratton 68877

Gasket-Valve Seat

$6.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 261357

Spring-Needle Valve

Note: Used After Code Date 85120500

$4.49

$

Usually ships in 2-12 days

0

157

Briggs & Stratton 27840

Gasket-Venturi

$4.49

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 292945

Tank-Fuel (3 Quart)

$159.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 69221

Cap-Fuel Tank Metal (1-3/4" O.d. Top)
(Superseded to 791545)

$

$

Not available

182

Briggs & Stratton 220195

Bracket-Fuel Tank

$17.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

Hose-Vacuum (11" Cut To Required Length)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

196

Briggs & Stratton 220369

Support-Tank

$15.99

$

Usually ships in 2-12 days

0

197

Briggs & Stratton 93083

Screw-Hex

$1.49

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 293934

Valve, Shutoff Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 295896

Outlet-Tank (Includes Strainer)

$15.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260178

Spring-Governor Link

$10.99

$

In Stock, only 1 left!

0

204

Briggs & Stratton 222962

Bushing-Control Lev

$1.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 395380

Bracket-Mechanical Governor

$27.99

$

Usually ships in 2-12 days

0

223

Briggs & Stratton 223097

Lever-Control (Mech. Gov.)

Note: Used Before Code Date 86111600

$2.49

$

Usually ships in 2-12 days

0

223

Briggs & Stratton 223904

Lever-Mech. Gov.
(Superseded to 692863)

Note: Used After Code Date 86111500

$4.49

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 93491

Rivet-Truss Head S

$1.49

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

266

Briggs & Stratton 290062

Control-Throttle

$

$

Not available

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If a Longer Casing is Needed, Specify Length in Inches; if a Shorter Casing is Needed Order No. 66986 and Cut to Required Length

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If Longer Wire is Needed, Specify Length by Inches; if Shorter Wire is Needed, Order No. 26099 and Cut to Required Length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

378

Briggs & Stratton 22032

Washer-Packing

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

380

Briggs & Stratton 62199

Washer, Steel
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

381

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

382

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

681

Briggs & Stratton 399619

Valve-Needle

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$15.99

$

Usually ships in 2-12 days

0

687

Briggs & Stratton 390690

Slide-Frictiong Control
(Superseded to 691949)

$

$

Not available

688

Briggs & Stratton 221766

Spring-Friction
(Superseded to 690395)

$8.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 260847

Spring-Friction
(Superseded to 690529)

$9.99

$

Usually ships in 2-12 days

0

690

Briggs & Stratton 92484

Screw-Slotted 10-32 X 1/2"

$3.99

$

Usually ships in 2-12 days

0

916

Briggs & Stratton 280321

Rack, Gear Control (Remote & Manual Choke)
(Superseded to 691900)

$5.99

$

Usually ships in 2-12 days

0
