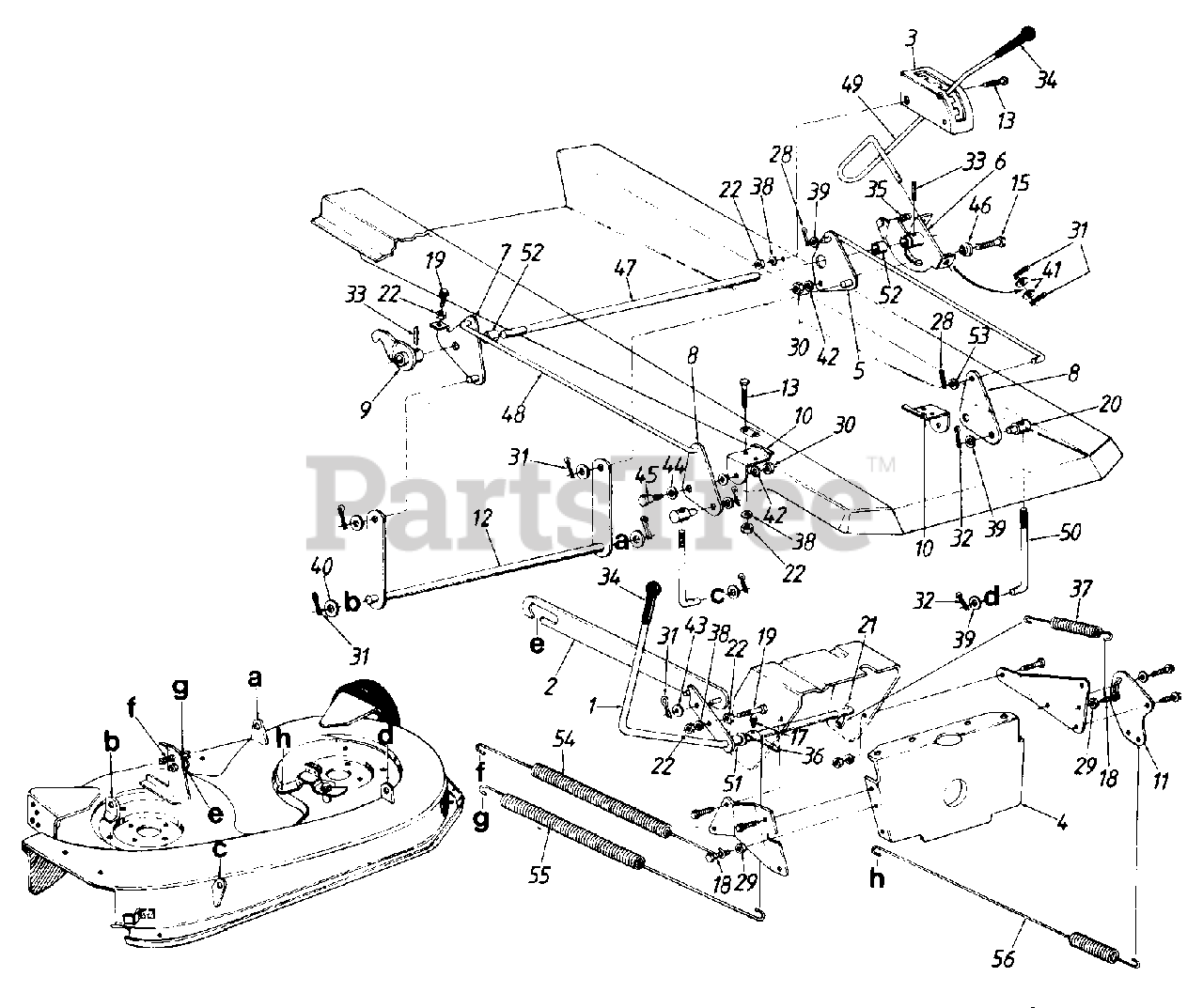

804 (137-517-100) - Cub Cadet Rear-Engine Riding Mower (1987) Parts For Riding Mower Part 4 Parts Diagram

Rear-Engine Riding Mower

Parts For Riding Mower Part 4 Parts Diagram

  • Title
1

Cub Cadet 15568

Blade Engagement Lever Ass'y.
(Superseded to 15568A)

$

$

Not available

2

Cub Cadet 15644

Deck Drive Control Brkt. A ss'y.

$

$

Not available

3

Cub Cadet 16397

Deck Index Bracket

Variations

Cub Cadet 16397-0637

BRACKET-DECK INDEXPOWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 15613

Pivot Bar Brkt.

$

$

Not available

5

Cub Cadet 17108

Deck Lift Brkt. Ass'y.

$

$

Not available

6

Cub Cadet 17109

Deck Lift Handle Retainer Ass'y.

$

$

Currently unavailable

7

Cub Cadet 17111

Deck Lift Brkt. Ass'y.

$

$

Currently unavailable

8

Cub Cadet 17112

Deck Lift Bracket

$

$

Currently unavailable

9

Cub Cadet 17114

Deck Lift Float Brkt Ass'y.

$

$

Not available

10

Cub Cadet 17115

Deck Lift Pivot Brkt.

$

$

Not available

11

Cub Cadet 17119

Blade Brake Spring Brkt.

$

$

Currently unavailable

12

Cub Cadet 17123

Stabilizer Shaft Ass'y.

$

$

Not available

13

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, only 3 left!

0

18

Cub Cadet 710-0805

Hex Bolt 5/16-18 x 1-l/2" (Gr. 5)
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

19

Cub Cadet 710-0817

Hex Wash.-Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

20

Cub Cadet 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

21

Cub Cadet 711-0753

Clevis Pin (Special)

$

$

Not available

22

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 714-0115

Cot-Pin 1/8" Dia. x 1" Lg.

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 714-0145

Int. Cot. Pins 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 715-0114

Spring Pin Spir. 1/4" Dia.

$9.49

$

In Stock, Qty 5

0

$

$

Not available

35

Cub Cadet 732-0430

Compression Spring 1.04" Lg.

$

$

Not available

36

Cub Cadet 732-0435

Switch Actuator

$

$

Not available

37

Cub Cadet 732-0565

Ext. Spring 5.86" Lg.

$

$

Not available

38

Cub Cadet 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0140

Fl-Wash. .385 I.D. x .62

$7.49

$

In Stock, Qty 7

0

40

Cub Cadet 736-0156

Fl-Wash. .635 I.D. x 1.12

$4.49

$

In Stock, Qty 12

0

41

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .930

$4.49

$

In Stock, only 2 left!

0

42

Cub Cadet 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0300

Fl-Wash. .385 I.D. x .87 O.D.

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0232

Spring Washer .530 I.D.

$4.99

$

In Stock, Qty 12

0

45

Cub Cadet 738-0183

Shld Bolt .500" Dia. x .215" Lg.
(Superseded to 938-0183)

$

$

Not available

46

Cub Cadet 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 738-0550

Rear Hot Adj. Shaft

$

$

Not available

48

Cub Cadet 747-0557

Connecting Rod

Variations

Cub Cadet 747-0557-0498

CONNECTING ROD - OLD CUB YELLOW (0498)

$

$

Not available

$

$

49

Cub Cadet 747-0651

Deck Lift Handle

$

$

Not available

50

Cub Cadet 747-0690

J-Bolt 5.4" Lg.

$

$

Not available

51

Cub Cadet 750-0515

Spacer.511 I.D.

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 750-0707

Spacer .885 I.D.

$

$

Not available

53

Cub Cadet 736-0264

Fl-Wash. 5/16" I.D.*

$6.99

$

In Stock, only 1 left!

0

54

Cub Cadet 732-0531

Ext. Spring 22.05" Lg.

$

$

Not available

55

Cub Cadet 732-0540

Ext. Spring 13.84" Lg.

$

$

Not available

56

Cub Cadet 732-0563

Ext. Spring 15.38" Lg.

$

$

Not available
