804 (137-517-100) - Cub Cadet Rear-Engine Riding Mower (1987) 32" Deck Parts Diagram

Rear-Engine Riding Mower

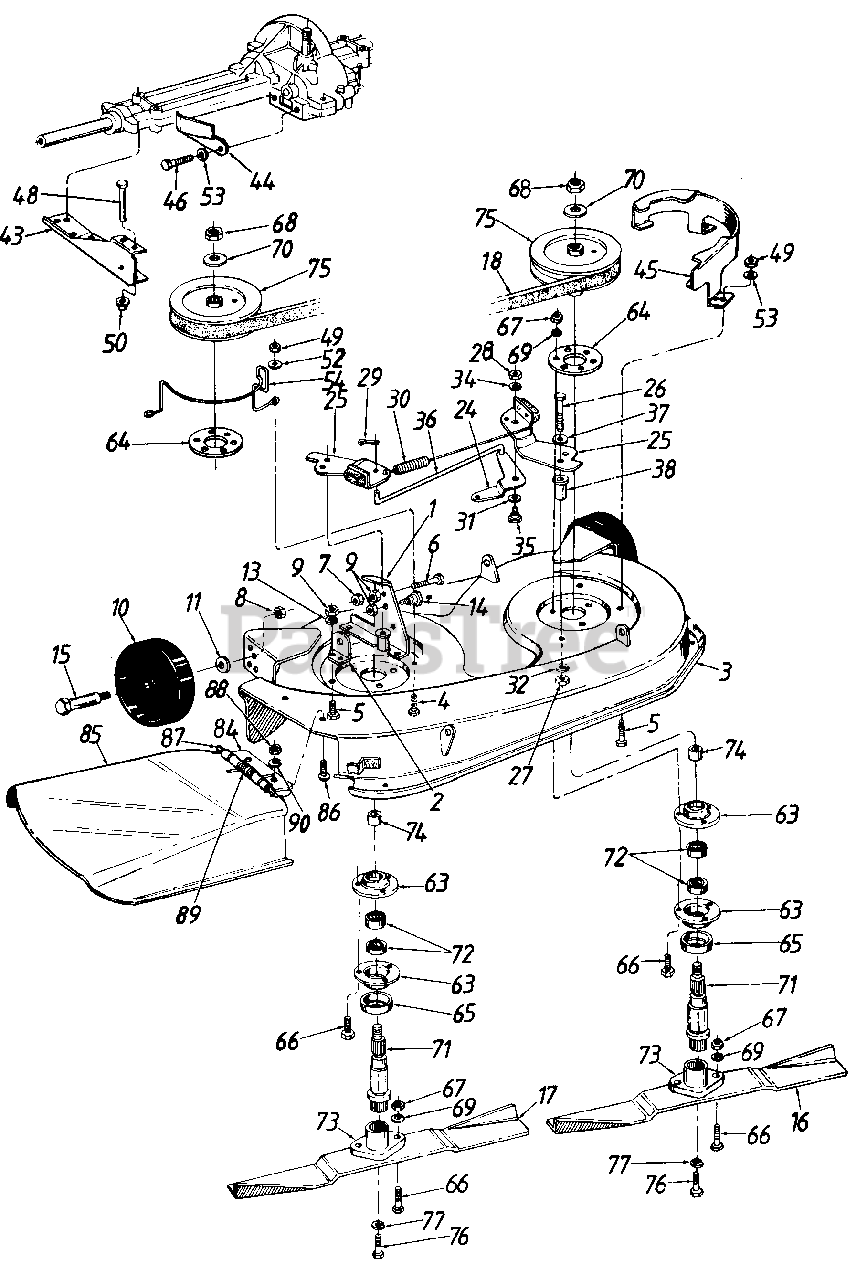

32" Deck Parts Diagram

  • Title

1

Cub Cadet 17094

Deck Disengagement Brkt.

$

$

Not available

2

Cub Cadet 17096

Rear Deck Brkt.-R.H.

$

$

Currently unavailable

3

Cub Cadet 17102

32" Deck Ass'y.

$

$

Not available

Cub Cadet 17157

32" Deck Ass'y. Comp.

$

$

Currently unavailable

4

Cub Cadet 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0285

Hex Bolt 1/4-20 x .62" Lg.

$

$

Currently unavailable

6

Cub Cadet 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" 19.

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0181

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0105

Bell-Wash. .380" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

Cub Cadet 738-0183

Shld Bolt .500" Dia. x .215" Lg.
(Superseded to 938-0183)

$

$

Not available

15

Cub Cadet 738-0373

Shld Bolt .498" Dia. x 1.53" Lg.
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 742-0477

L.H. High-Lift Blade

$

$

Not available

17

Cub Cadet 742-0480

R.H. High-Lift Blade

$

$

Not available

18

Cub Cadet 754-0277

V-Belt
(Superseded to 954-0277)

$

$

Not available

24

Cub Cadet 17091

Deck Brake Bracket

$

$

Currently unavailable

25

Cub Cadet 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

26

Cub Cadet 710-0772

Hex Bolt 5/16-24 x 2" Lg.

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

29

Cub Cadet 714-0127

Cotter Pin 1/16" Dia.

$

$

Not available

30

Cub Cadet 732-0561

Extension Spring

$

$

Not available

31

Cub Cadet 736-0101

Fl-Wash. .406" I.D. x 1.0" O.D.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

35

Cub Cadet 738-0255

Shld Bolt .375" Dia. x .181" Lg.
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

36

Cub Cadet 747-0682

Deck Control Rod

$

$

Not available

37

Cub Cadet 748-0234

Shld. Spacer x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 750-0702

Spacer 1.46" Lg.

$

$

Not available

43

Cub Cadet 15625

Lower Outside Belt Guard

$

$

Not available

44

Cub Cadet 17117

Lower Inside Belt Guard

$

$

Currently unavailable

45

Cub Cadet 17164

Belt Guard Deck-R.H.

$

$

Not available

46

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0586

Pin

$

$

Not available

49

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

50

Cub Cadet 726-0106

Speed Nut 1/4 Rod

$3.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 736-0270

Bell-Wash. .265" I.D. x .75

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0329

L-Wash. 1/4" l.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

54

Cub Cadet 747-0691

Deck Belt Guard

$

$

Not available

63

Cub Cadet 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

64

Cub Cadet 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

65

Cub Cadet 13703

Bearing Shield

$

$

Not available

66

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. (Special)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

68

Cub Cadet 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

69

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

71

Cub Cadet 738-0707

Blade Spindle
(Superseded to 938-0707A)

$45.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

73

Cub Cadet 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

74

Cub Cadet 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

76

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

84

Cub Cadet 16521

Chute Bracket

$

$

Not available

85

Cub Cadet 16566

Chute
(Superseded to 753-0567)

$136.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 710-0255

Truss.-Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

88

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

89

Cub Cadet 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

90

Cub Cadet 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
