80265 (99922201478) - Shindaiwa Multipurpose Cultivator Attachment General Assembly Parts Diagram

Multipurpose Cultivator Attachment

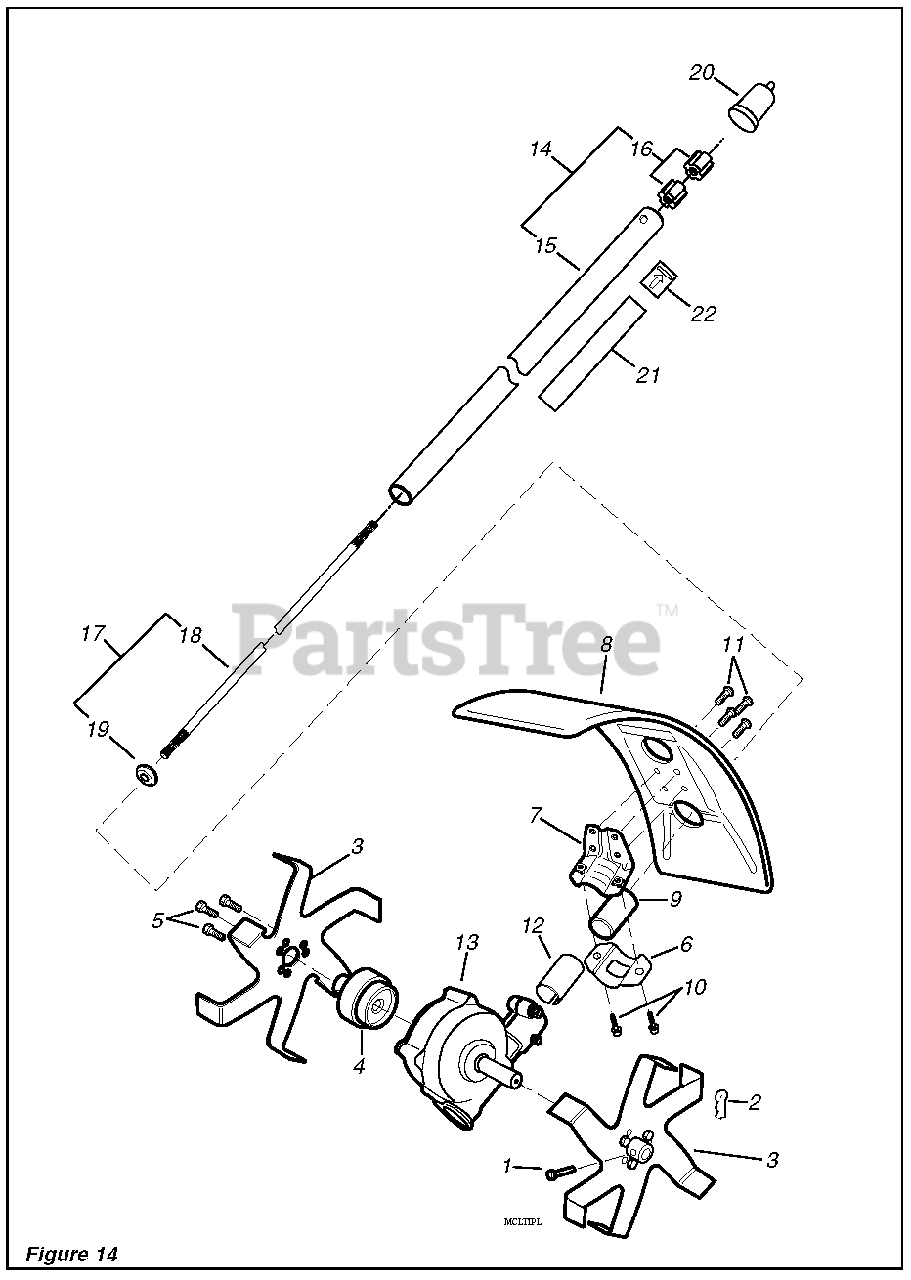

General Assembly Parts Diagram

  • Title

1

Echo 78822-01110

PIN, LOCK

$14.99

$

Usually ships in 2-4 days

0

2

Echo 12400-16088

PIN, SNAP

$1.99

$

Usually ships in 2-4 days

0

3

Echo 78822-01120

CUTTER, LINE
(Superseded to Discontinued)

$

$

Not available

4

Echo 78822-01130

BRACKET, CUTTER
(Superseded to Discontinued)

$

$

Not available

5

Echo 01011-06128

BOLT
(Superseded to Discontinued)

$

$

Not available

6

Echo 78822-01140

BRACKET, SHIELD
(Superseded to Discontinued)

$

$

Not available

7

Echo 78822-01150

BRACKET, SHIELD
(Superseded to Discontinued)

$

$

Not available

8

Echo 78822-01160

SHIELD, DEBRIS

$

$

Not available

9

Echo 78822-01170

COLLAR
(Superseded to Discontinued)

$

$

Not available

10

Echo 78822-01180

BOLT
(Superseded to Discontinued)

$

$

Not available

11

Echo 78822-01190

BOLT
(Superseded to Discontinued)

$

$

Not available

12

Echo 72959-13330

SPACER
(Superseded to V375000770)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 22222

GEAR CASE
(Superseded to 44444)

$

$

Not available

14

Echo 65001-62010

MAIN PIPE ASSY
(Superseded to 65001-98310)

$51.99

$

Usually ships in 2-4 days

0

15

Echo 65001-62110

PIPE, MAIN

$39.99

$

Usually ships in 2-4 days

0

16

Echo 22035-12120

BUSHING
(Superseded to 22035-12121)

$4.49

$

In Stock, Qty 6

0

17

Echo 65001-62040

DRIVESHAFT ASSY
(Superseded to C504000870)

$

$

Not available

18

Echo 37000-62210

MAINSHAFT
(Superseded to C504000880)

$18.99

$

In Stock, only 1 left!

0

19

Echo 15250-10100

GROMMET
(Superseded to V145000210)

$1.49

$

In Stock, only 2 left!

0

20

Echo 20891-98180

CAP
(Superseded to C525000030)

$2.99

$

In Stock, Qty 10

0

21

Echo 80278

LABEL, CAUTION

$

$

Currently unavailable

22

Echo 19401-00169

LABEL, INSTRUCTION

$0.99

$

Usually ships in 2-4 days

0
