8024 STE (961910017-06) - Husqvarna 24" Snow Blower (2008-08) CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

24" Snow Blower

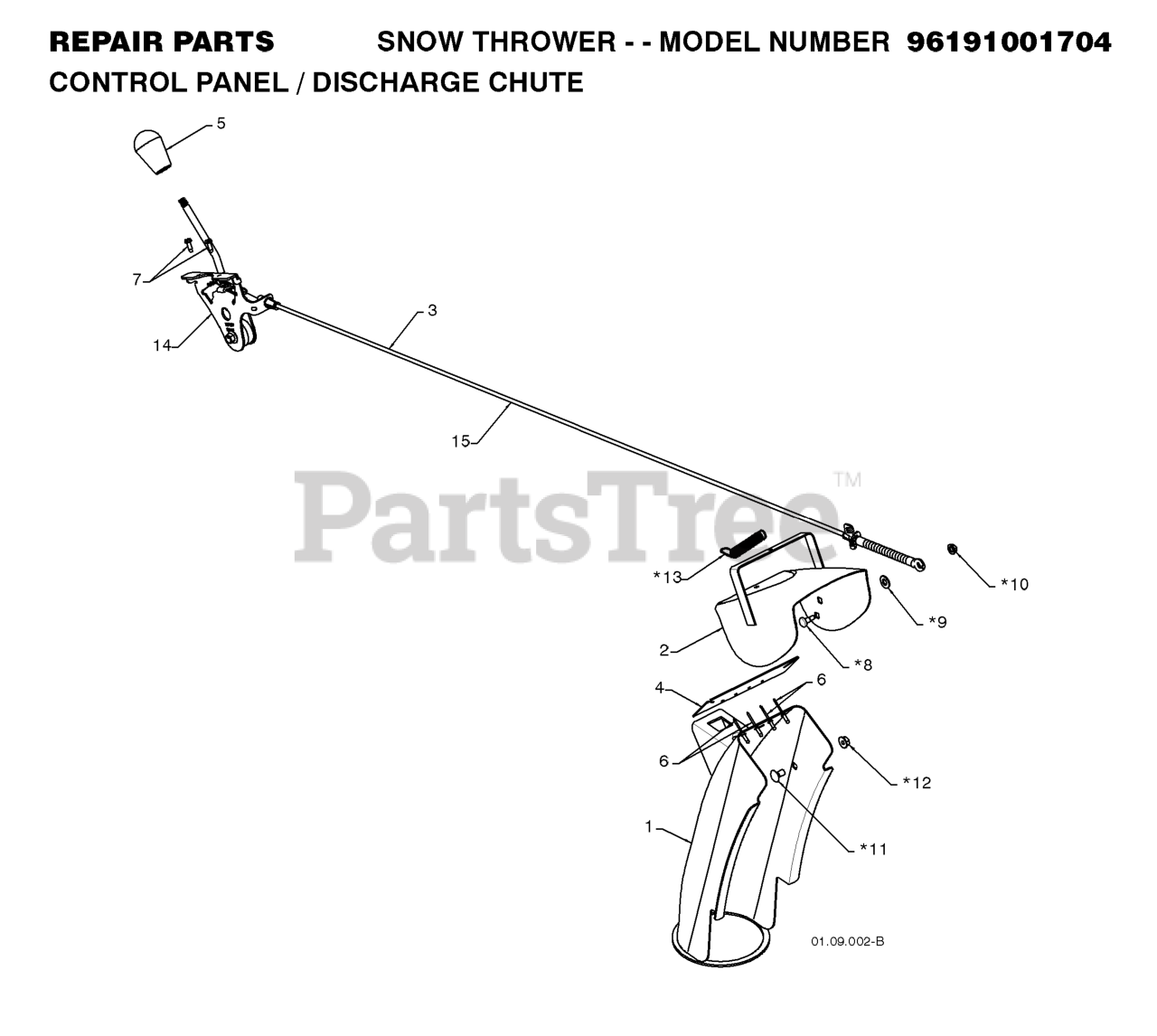

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

4

Husqvarna 532420325

SEAL.DEFLECTOR

$7.49

$

Usually ships in 3-10 days

0

*9

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 10

0

15

Husqvarna 532420672

RB SERVICE.CHUTE.DEF.CBL.BLK
(Superseded to 587030901)

$80.99

$

In Stock, only 2 left!

0

*8

Husqvarna 532179829

BOLT, SHOULDER

$6.49

$

In Stock, Qty 11

0

1

Husqvarna 532407650

CHUTE ASSEMBLY
(Superseded to 588077802)

$120.99

$

In Stock, only 2 left!

0

*12

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

*11

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532184113

DEFLECTOR.WELDMENT.PNT.ORANGE
(Superseded to 588077802)

$120.99

$

In Stock, only 2 left!

0

7

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

*13

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 11

0

5

Husqvarna 532414280

KNOB LEVER, BLACK

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532420673

RP.CONTROL.ASM.DEFLECTOR.SNOW
(Superseded to 587030801)

$80.99

$

In Stock, Qty 5

0

14

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

$80.99

$

In Stock, Qty 5

0

*10

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0
