8024 STE (961910017-04) - Husqvarna 24" Snow Blower (2008-08) HANDLE & CONTROLS Parts Diagram

24" Snow Blower

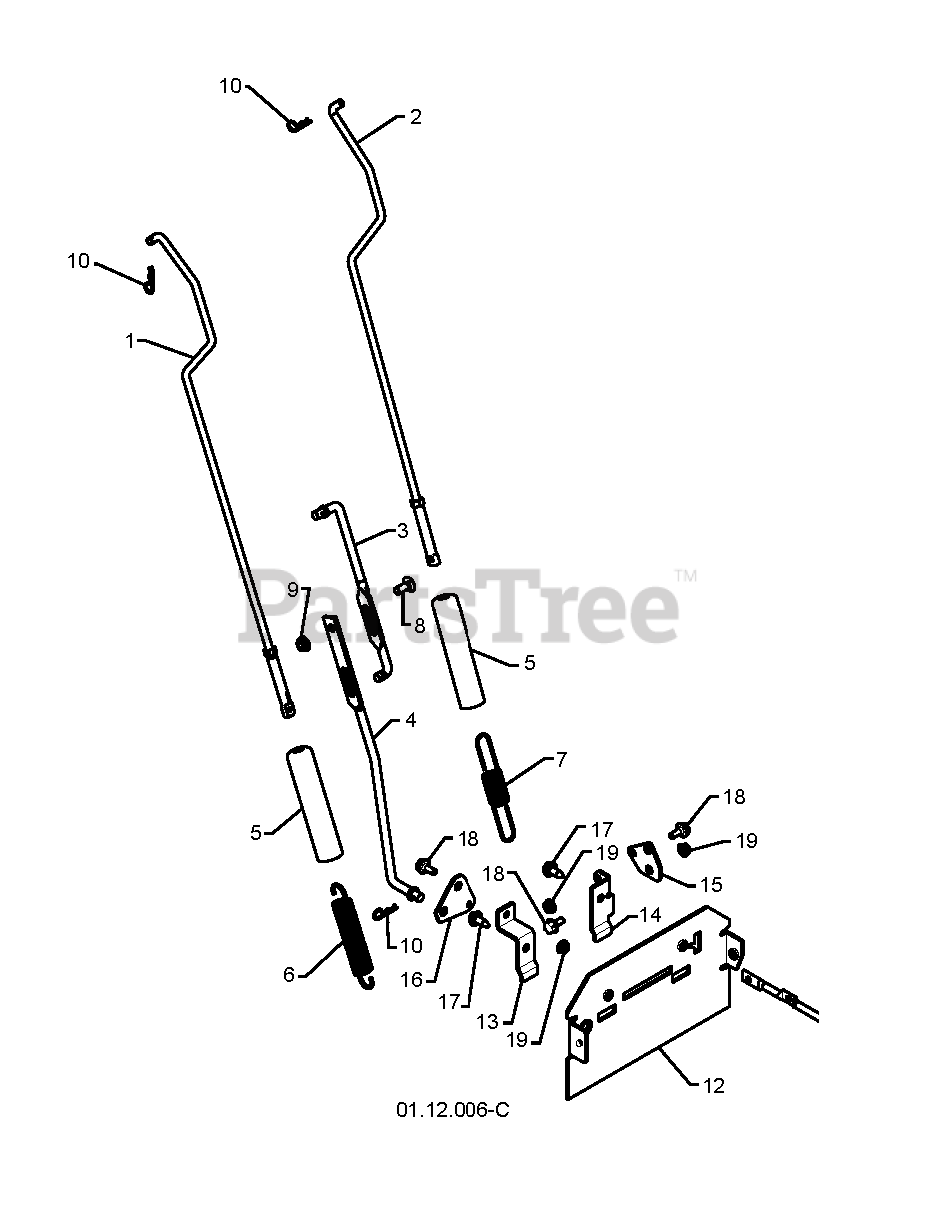

HANDLE & CONTROLS Parts Diagram

  • Title
12

Husqvarna 532403215

PLATE.REAR

$

$

Not available

17

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532180480

ROD.ASM.IMPELLER

$

$

Not available

2

Husqvarna 532405740

ROD.ASM.TRACTION

$

$

Not available

11

Husqvarna 532403300

ROD.CLUTCH.YELLOW.ZINC(VT)

$12.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532180447

SLEEVE, SPRING

$6.99

$

In Stock, only 2 left!

0

13

Husqvarna 532403096

RP BRACKET.SHIFTER.PLATE.BZP
(Superseded to 532415433)

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532402856

PLATE
(Superseded to 532415435)

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 532178669

SPRING, AUGER CONTROL

$9.49

$

In Stock, only 4 left!

0

16

Husqvarna 532403097

PLATE.SHIFTER.BZP
(Superseded to 532415450)

$7.99

$

In Stock, only 3 left!

0

9

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 532416717

BRACKET.CLUTCH.PLATE.BZP
(Superseded to 532416864)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532180926

SPRING, TRACTION DRIVE

$7.49

$

In Stock, only 4 left!

0

3

Husqvarna 532180445

ROD, UPPER SPEED CONTROL

$39.99

$

In Stock, Qty 5

0

4

Husqvarna 532187716

ROD, LOWER SPEED CONTROL.SNOW

$

$

Not available

19

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0
