8024 STE (961910017-04) - Husqvarna 24" Snow Blower (2008-08) DRIVE 2 Parts Diagram

24" Snow Blower

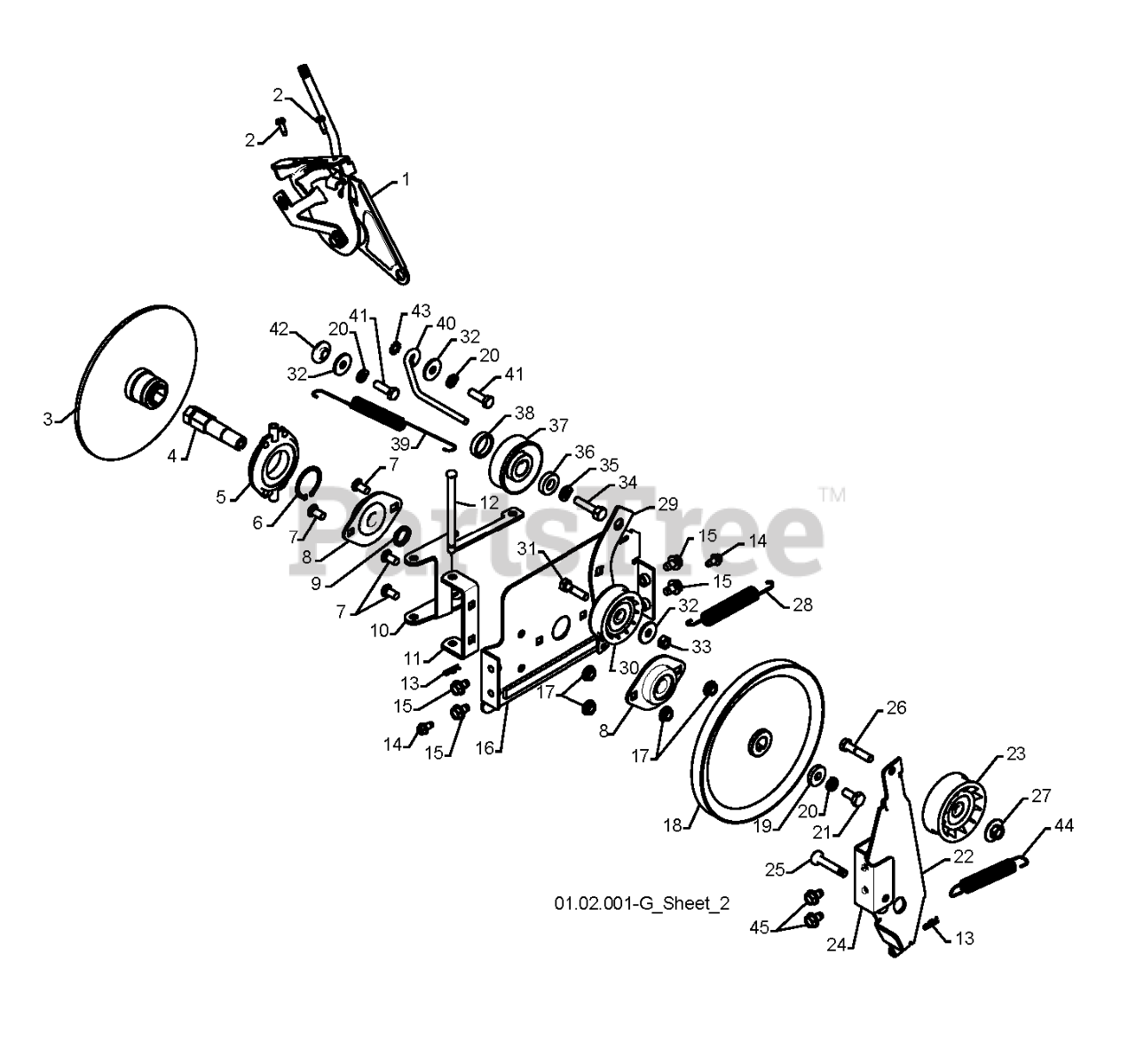

DRIVE 2 Parts Diagram

  • Title

24

Husqvarna 532184074

BRACKET, IDLER PIVOT
(Superseded to 532422762)

$102.99

$

Usually ships in 3-10 days

0

41

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

8

Husqvarna 532188909

BEARING FLANGE

$31.99

$

In Stock, Qty 15

0

27

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 3 left!

0

13

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532178695

PIN, PIVOT LEVER

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 4 left!

0

3

Husqvarna 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532184076

BRACKET, SHIFTER SUPPORT
(Superseded to 532175349)

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532180478

PULLEY,ENGINE TRACTION DRIVE
(Superseded to 595926601)

$37.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532182504

SPACER, BEARING

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532191080

PULLEY.TRACTION.7.75

$68.99

$

Usually ships in 3-10 days

0

6

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, Qty 7

0

23

Husqvarna 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 17

0

17

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532155452

BELT.GUIDE.RH

$6.49

$

In Stock, Qty 10

0

16

Husqvarna 532184075

PLATE.DRIVE.MOUNTING.BLACK

$

$

Not available

29

Husqvarna 532179354

ARM, IDLER
(Superseded to 585238401)

$44.99

$

In Stock, only 1 left!

0

21

Husqvarna 874950512

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

39

Husqvarna 532179095

SPRING.RETURN

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 532422111

ARM.IDLER.BRAKE.BLACK

$

$

Not available

14

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$37.99

$

In Stock, only 2 left!

0

10

Husqvarna 532184077

LEVER.SHIFTER.PLATE.BLACK

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.99

$

In Stock, Qty 9

0

38

Husqvarna 532409475

SPACER.ENGINE.PULLEY

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532197764

SHAFT.HEX.SHORT

$14.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 6

0

42

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 532180522

PULLEY.W/SPACER.2.25

$31.99

$

In Stock, only 3 left!

0

31

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532198474

HEAD ASSY SPEED
(Superseded to 532429667)

$

$

Not available

35

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0
