8024 STE (961910002-00) - Husqvarna 24" Snow Blower (2005-10) HANDLE Parts Diagram

24" Snow Blower

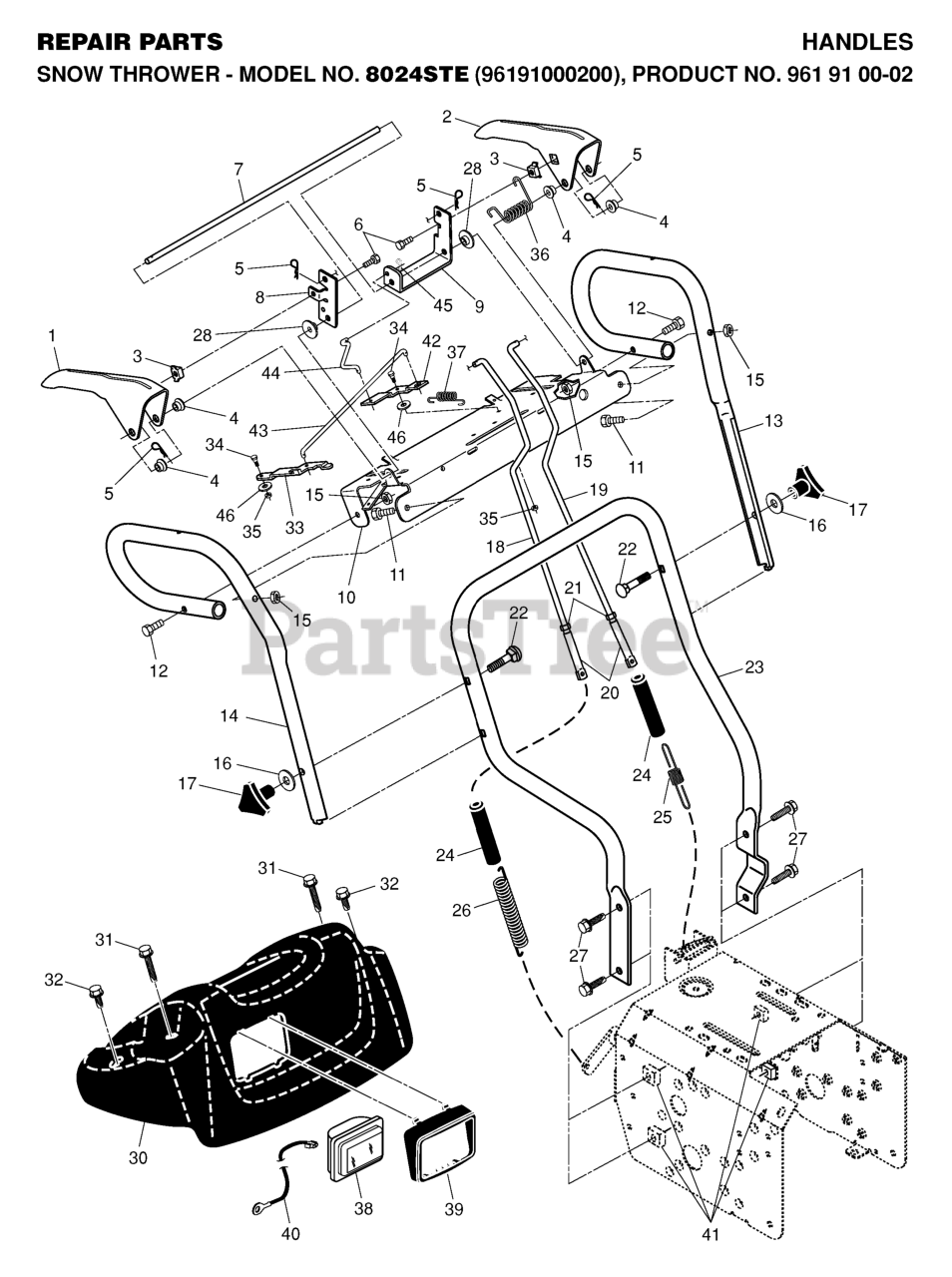

HANDLE Parts Diagram

  • Title
24

Husqvarna 532180447

SLEEVE, SPRING

$6.99

$

In Stock, only 2 left!

0

39

Husqvarna 532178668

BEZEL.HEADLIGHT.BLACK

$7.49

$

In Stock, Qty 9

0

16

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532199531

PANEL.CONTROL
(Superseded to 532196619)

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

33

Husqvarna 532199577

LATCH.INTERLOCK
(Superseded to 532196335)

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532193081

ROD.CABLE.TRACTION.LONG

$

$

Not available

28

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532178890

NUT, CAGE 3/8-16
(Superseded to 532178820)

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 871210616

Capscrew, Hex Head, Flanged 3/8-16 x 1

$5.99

$

In Stock, only 1 left!

0

20

Husqvarna 532180428

ROD, END CONTROL

$10.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532068038

NUT **
(Superseded to 873850400)

$

$

Not available

38

Husqvarna 532178666

HEADLIGHT.HALOGEN.SNOW

$250.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532180964

HARNESS.WIRE.HALOGEN

$51.99

$

In Stock, only 3 left!

0

25

Husqvarna 532180926

SPRING, TRACTION DRIVE

$7.49

$

In Stock, Qty 7

0

17

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

45

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532199578

LEVER.INTERLOCK
(Superseded to 532196336)

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 532199575

ARM,TRACTION ROD
(Superseded to 532196334)

$

$

Not available

34

Husqvarna 532183518

BOLT, SHOULDER

$2.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532184087

TUBE.LOWER.HANDLE.24.BLACK

$

$

Not available

4

Husqvarna 532178888

BUSHING, FLANGE

$

$

Not available

8

Husqvarna 532199576

ARM,IMPELLER ROD
(Superseded to 532429098)

$

$

Not available

6

Husqvarna 532180402

SCREW HEX HD 1/4-20 X 3/4
(Superseded to 532199640)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532196337

ROD.LATCH.INTERLOCK
(Superseded to 532199638)

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532193885

SPRING LATCH

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532184110

LEVER, AUGER CONTROL
(Superseded to 532411423)

$27.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 10

0

18

Husqvarna 532184594

ROD.AUGER.CONTROL

$66.99

$

In Stock, only 1 left!

0

13

Husqvarna 532184107

HANDLE TUBE LH
(Superseded to 532436114)

$66.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532178831

RP SPRING, TORSION
(Superseded to 532443215)

$6.49

$

In Stock, only 1 left!

0

3

Husqvarna 532179439

NUT, CAGE 1/4-20
(Superseded to 532199639)

$

$

Not available

44

Husqvarna 532196338

ROD.ASM INTERLOCK

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532184108

HANDLE TUBE RH
(Superseded to 532407857)

$48.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532182906

PANEL.CONSOLE.SNOW

$48.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532178669

SPRING, AUGER CONTROL

$9.49

$

In Stock, Qty 5

0

7

Husqvarna 532178652

ROD.INTERLOCK

$11.99

$

In Stock, only 1 left!

0

21

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532184109

LEVER, TRACTION DRIVE CONTROL
(Superseded to 532411391)

$27.99

$

Usually ships in 3-10 days

0
