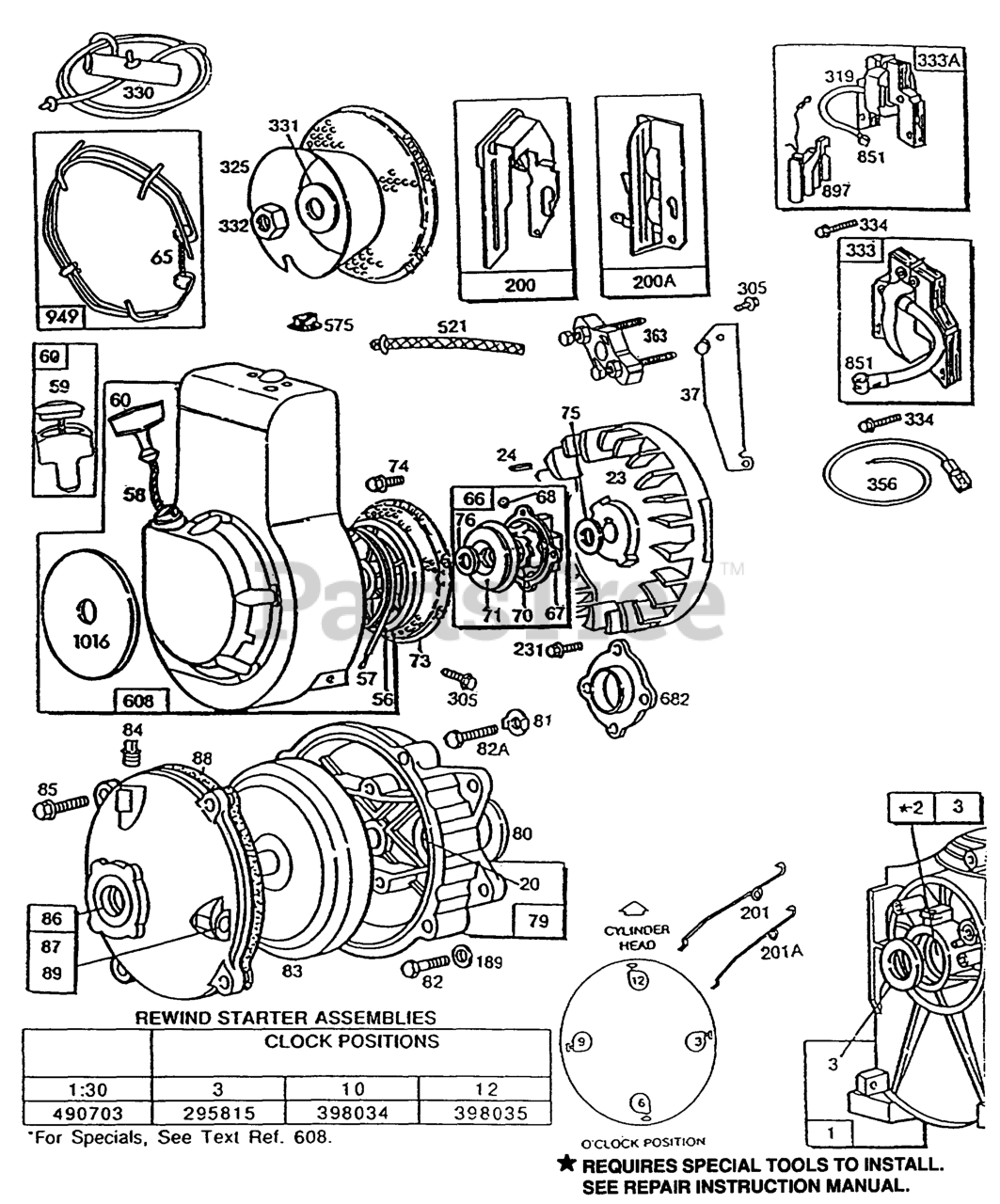

80201-2111-01 - Briggs & Stratton Horizontal Engine Gear Case,Blower Hsg.,Rewind Parts Diagram

Horizontal Engine

Gear Case,Blower Hsg.,Rewind Parts Diagram

  • Title

1

Briggs & Stratton 395879

Cylinder Assembly

$199.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

Note: Requires Special Tools For Installation.

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

20

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 220971

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 280439

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 10

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 280406

Rope, Starter (81" Cut To Required Length)
(Superseded to 280406S)

Note: If Longer Rope is Needed, Order Part No. 280399 and Cut to Required Length.

$8.49

$

In Stock, only 4 left!

0

59

Briggs & Stratton 396892

Insert-Starter Rope

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 94124

Screw-Round Head

$3.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 224061

Washer, Flat (5/8" Hole)
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

79

Briggs & Stratton 290779

Case-Reduction Gear
(Superseded to 690605)

$136.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 27667

Gasket-Gear Case
(Superseded to 691602)

$5.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 220234

Lock-Screw Head
(Superseded to 691168)

$5.49

$

Usually ships in 2-12 days

0

82A

Briggs & Stratton 92279

Screw, Hex Head Cap (5/16-24 X 1/2")
(Superseded to 699164)

$3.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 91541

Screw, Hex Head Cap (5/16-24 X 7/8")
(Superseded to 690369)

$5.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 211293

Shaft-Auxiliary Drive
(Superseded to 690374)

$242.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 92617

Screw-Gear Case Mounting Sem
(Superseded to 691121)

$5.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 92747

Screw, Sem Hex Hd M
(Superseded to 691117)

Note: (Used on Two Top Holes to Mount Cover)

$4.49

$

In Stock, only 1 left!

0

86

Briggs & Stratton 291730

Cover-Gear Case
(Superseded to 690608)

$73.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 19011

Seal-Oil
(Superseded to 691582)

$12.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 27313

Gasket-Gear Case Cover
(Superseded to 691600)

$11.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

200A

Briggs & Stratton 490529

Blade-Governor
(Superseded to 498770)

$

$

Not available

200

Briggs & Stratton 490529

Blade-Governor
(Superseded to 498770)

$

$

Not available

201A

Briggs & Stratton 261663

Link-Air Vane

Note: Ref. 201A is Used With Ref. 200A Gov. Blade.

$19.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 262041

Link-Governor

Note: Ref. 201 is Used With Ref. 200 Gov. Blade.

$5.49

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 93064

Screw-Sem
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

319

Briggs & Stratton 298502

Armature-Mag (For Points And Condenser)
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

319

Briggs & Stratton 398428

Armature-Mag

$

$

Not available

325

Briggs & Stratton 293959

Pulley-Rope Start (1/2" Hole In Pulley)

Note: For Pulley With Screen With 5/8" Hole in Pulley Order Part No. 298731

$

$

Not available

330

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

331

Briggs & Stratton 62577

Washer-Belleville (1/2" Hole)

Note: For Washer With 5/8" Hole-Order Part No. 220865

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 91708

Nut-Flywheel (1/2-20 L.h. Thread)

Note: For Flywheel Nut With 5/8-18 R.H. Thread-Order Part No. 92284

$

$

Not available

333A

Briggs & Stratton 398593

Ignition Kit (For Magnetron)
(Superseded to 591420)

Note: For Specials See Ref. 319 Note.

$53.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 398428

Armature-Mag

$

$

Not available

333

Briggs & Stratton 398593

Ignition Kit (For Magnetron)
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

Note: Used With Armature Ref. 333

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

521

Briggs & Stratton 297973

Shielding-Ignition Cable

$17.99

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 396691

Switch, Rotary Stop (Mech. Gov.)
(Superseded to 692309)

$20.99

$

In Stock, only 1 left!

0

608

No Nomenclature

Note: See Chart on Illustrated Page.

$

$

Not available

682

Briggs & Stratton 211516

Shield-Starter Clutch

$4.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
