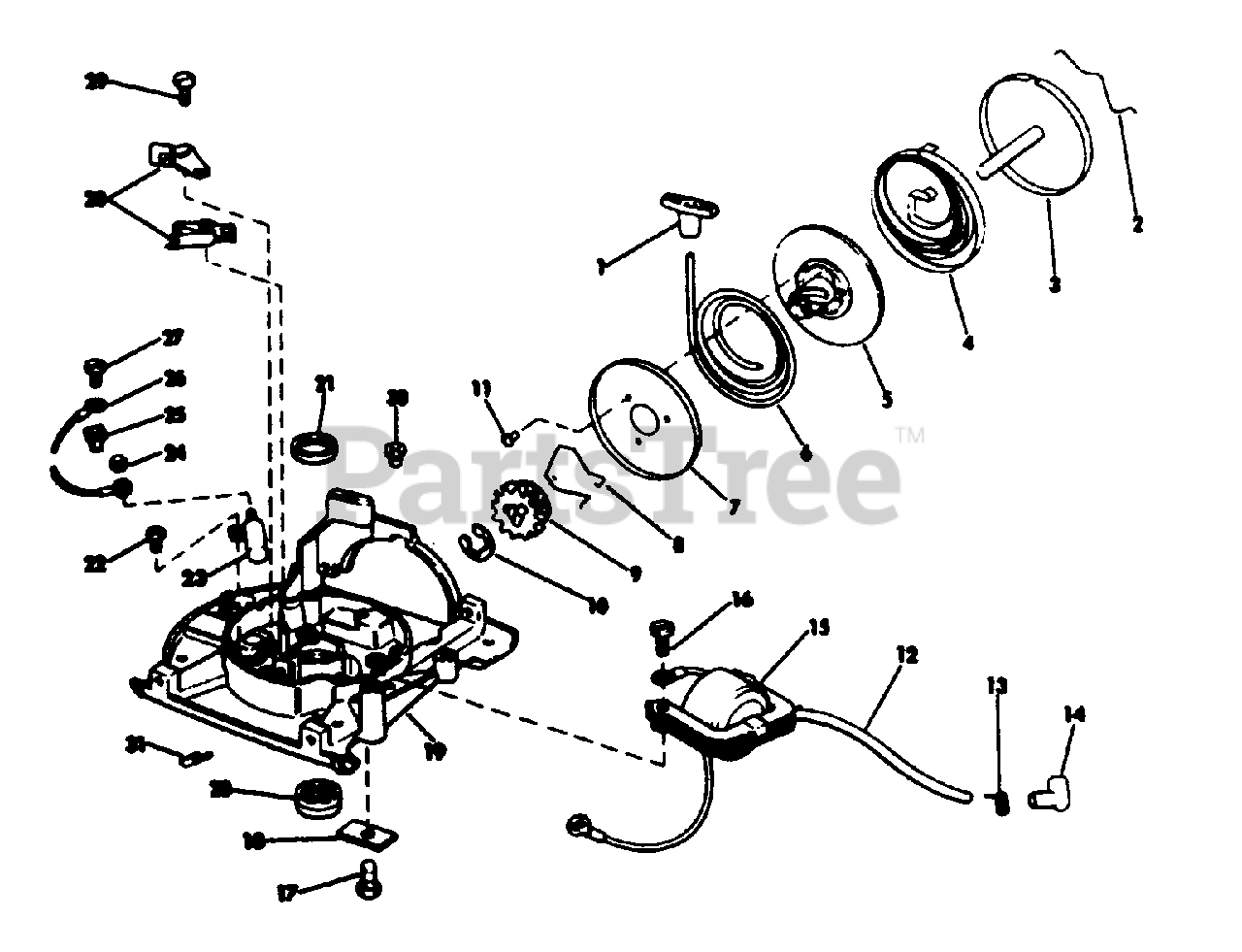

8020 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1970) MODEL D-420 MAGNETO & STARTER PARTS LIST MODELS USED ON: 8020 Parts Diagram

Walk-Behind Mower

MODEL D-420 MAGNETO & STARTER PARTS LIST MODELS USED ON: 8020 Parts Diagram

  • Title
1

Lawn-Boy 606863

Handle-Starter
(Superseded to 609477)

$

$

Not available

2

Lawn-Boy 604573

Spring-Starter Rope Retainer

$5.49

$

Usually ships in 3-6 days

0

Lawn-Boy 678115

Starter Assembly

Note: Not Shown

$261.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 678112

Spring-Cup-Pin Assy.
(Superseded to 681353)

$

$

Not available

4

Lawn-Boy 604257

Spring-Starter

$40.99

$

In Stock, only 4 left!

0

5

Lawn-Boy 6U4646

Pulley-Starter

$

$

Currently unavailable

6

Lawn-Boy 604279

Rope-Starter

$

$

Not available

7

Lawn-Boy 604244

Plate-Starter Pulley
(Superseded to 681896)

$

$

Not available

8

Lawn-Boy 604260

Spring-Starter Pinion

$14.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 604644

Pinion-Starter

$14.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 604259

Retainer-Push-On

$

$

Not available

11

Lawn-Boy 602821

Screw-Threaded Cutting Starter

$

$

Not available

12

Lawn-Boy 678117

High Tension Lead Assy.

$20.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 510231

Terminal-Spring
(Superseded to 684698)

$7.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 510232

Cover-Rubber

$

$

Currently unavailable

15

Lawn-Boy 678539

Coil & Lamination Assy.

$

$

Not available

16

Lawn-Boy 607526

Scr.-Lamination Mtg.
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 604857

Scr.-Starter Attach.

$7.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 604261

Clamp-Starter Pin

$

$

Not available

19

Lawn-Boy 679365

Arm. Pl., Bearing & Oil Seal Assembly

$

$

Not available

20

$

$

Not available

21

Lawn-Boy 605020

Oil Seal
(Superseded to 611396)

$6.99

$

In Stock, Qty 19

0

22

Lawn-Boy 510193

Scr.-Cond. Mtg.

$

$

Currently unavailable

23

Lawn-Boy 677299

Cond. & Nut Assy.

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 604256

Grommet-Nylon

$5.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 678116

Terminal & Lead Assy.

$

$

Not available

27

Lawn-Boy 604986

Scr.-Shut-Off Switch

$

$

Not available

28

Lawn-Boy 677254

Brkr. Base & Arm Assy.

$54.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 303212

Scr.-Breaker Base

$

$

Not available

30

Lawn-Boy 607255

Grommet

$

$

Not available

31

$

$

Not available
